Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide up the seat back trim cover in order to gain access to the rear cardboard panel fasteners. Refer to Seat Back Cover & Pad Replacement - Front .
  2. Remove the panel fasteners. Pull back the panel in order to gain access to the bushings.
    Fig 1: Head Restraint - Front Seat
    G01714255Courtesy of GENERAL MOTORS CORP.
  3. Remove the head restraint retainers from the seat back frame by squeezing the retaining tabs together at the base of the guide(s) and lifting up.

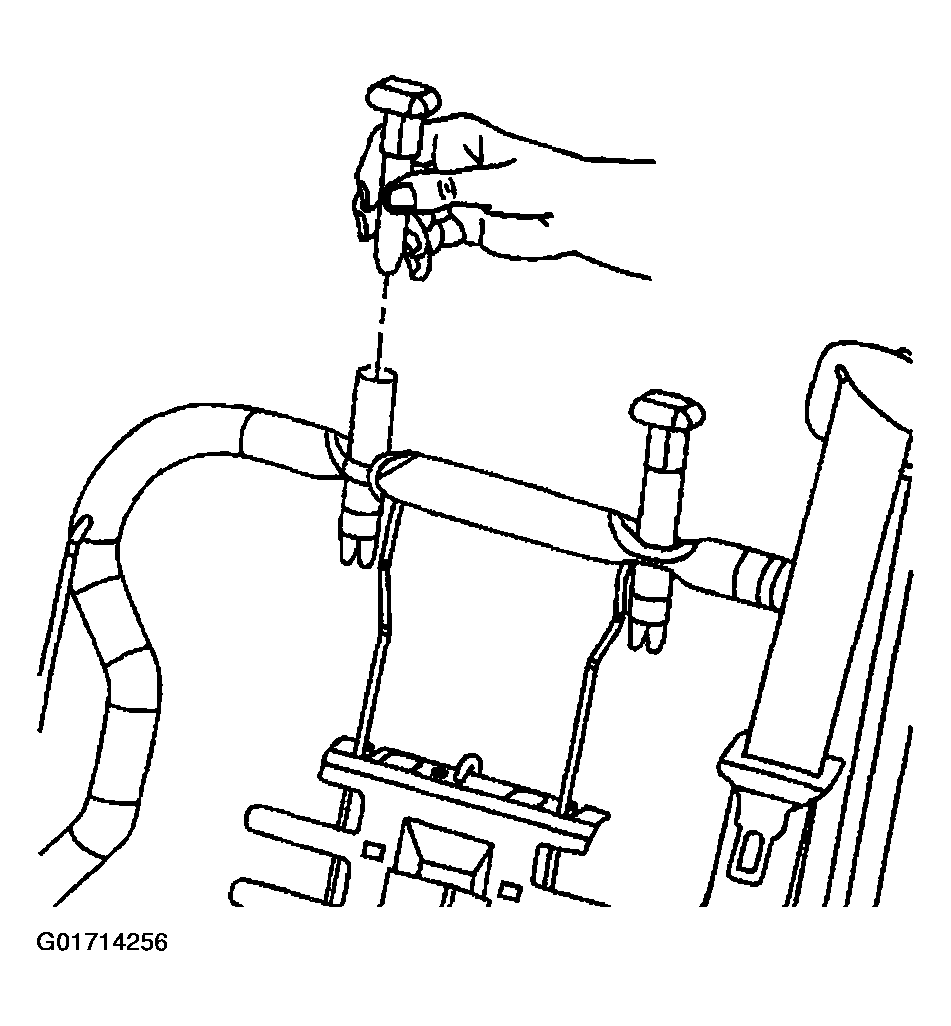

    Fig 2: Head Restraint Retainers
    G01714256Courtesy of GENERAL MOTORS CORP.
