Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the front seat back in the forward position.
  2. Separate the J-clip at the bottom of the seat using a flat bladed tool.
  3. Remove the 2 push pins at the bottom retaining the seat back cover to the card board.
  4. From the back of the front seat, disconnect the heating element wire connector, if equipped.
  5. Role up the seat cover up to the bottom of the arm rest.
  6. Recline the seat.
  7. From the front of the seat move the seat cushion away from the seat frame to gain access to the arm rest clip.
  8. Remove the rubber band from the clip.
  9. Remove the clip from the seat frame.

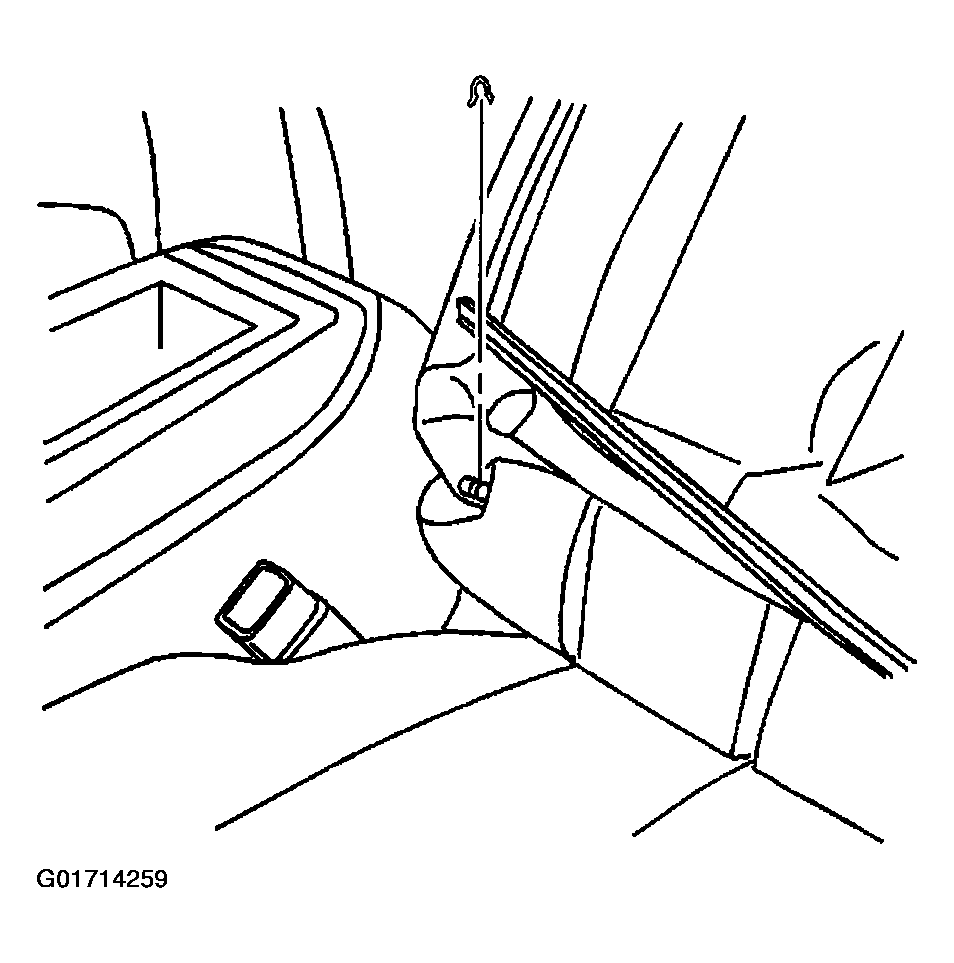

    10. Fig 1: Removing Clip From Seat Frame
    G01714259Courtesy of GENERAL MOTORS CORP.
  10. Remove the arm rest by pulling outwards.
