Power Seat Does Not Tilt Forward (Without Memory)

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

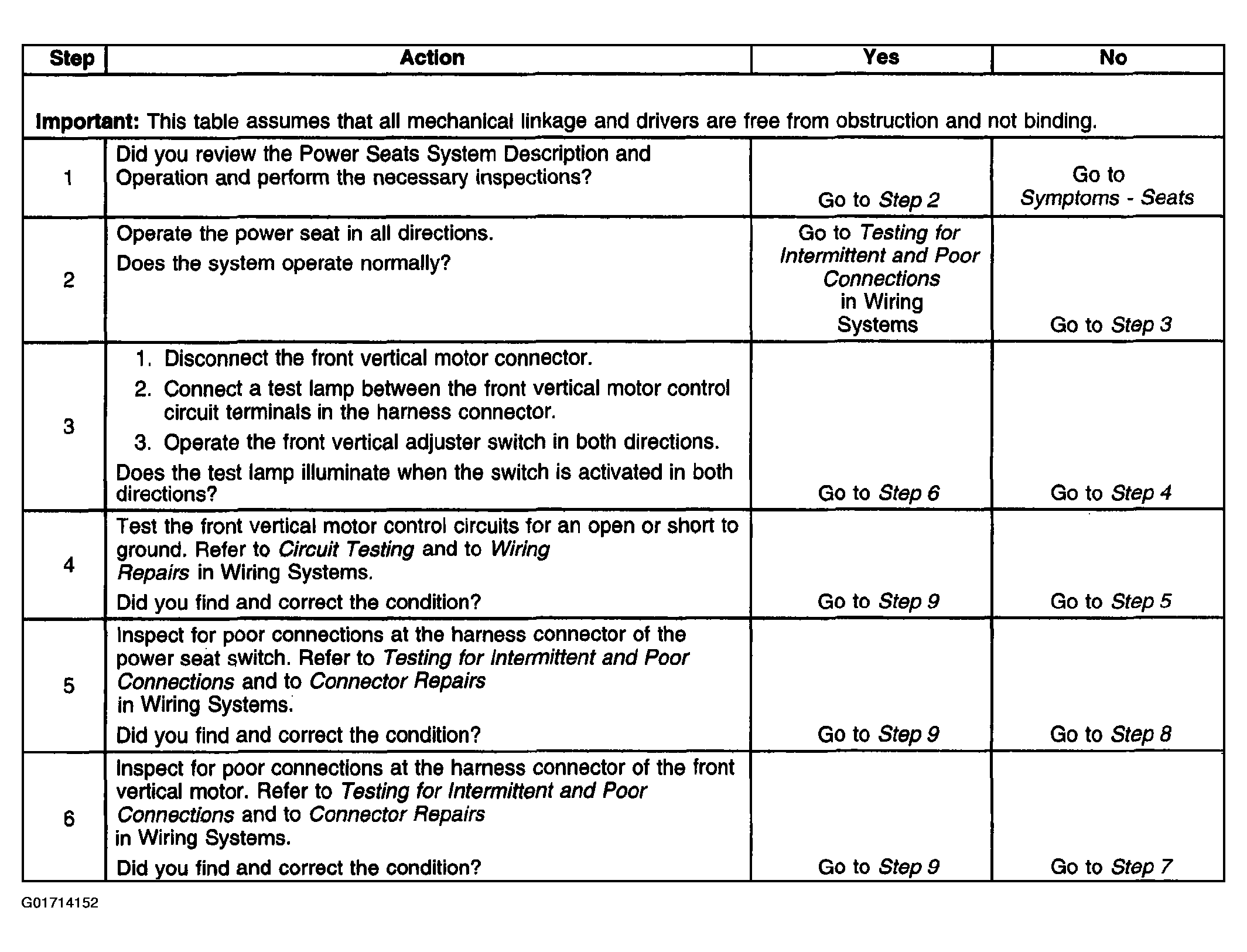

Fig 1: Power Seat Does Not Tilt Forward (Without Memory) Diagnosis (Steps 1-6)
G01714152Courtesy of GENERAL MOTORS CORP.

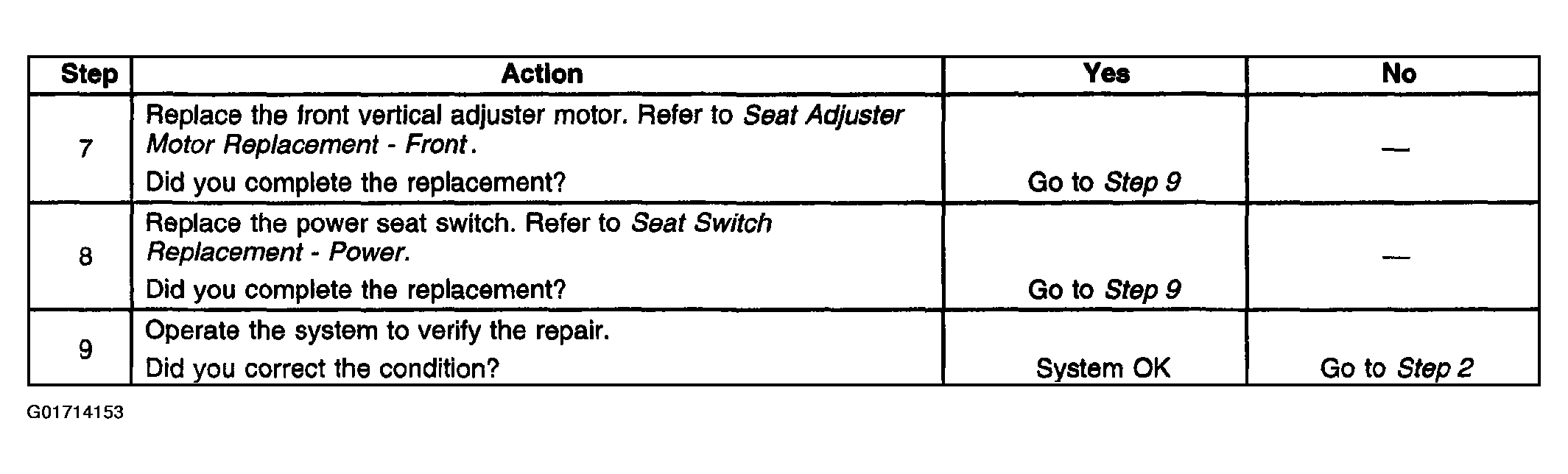

Fig 2: Power Seat Does Not Tilt Forward (Without Memory) Diagnosis (Steps 7-9)
G01714153Courtesy of GENERAL MOTORS CORP.
