Heated Seat Inoperative

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

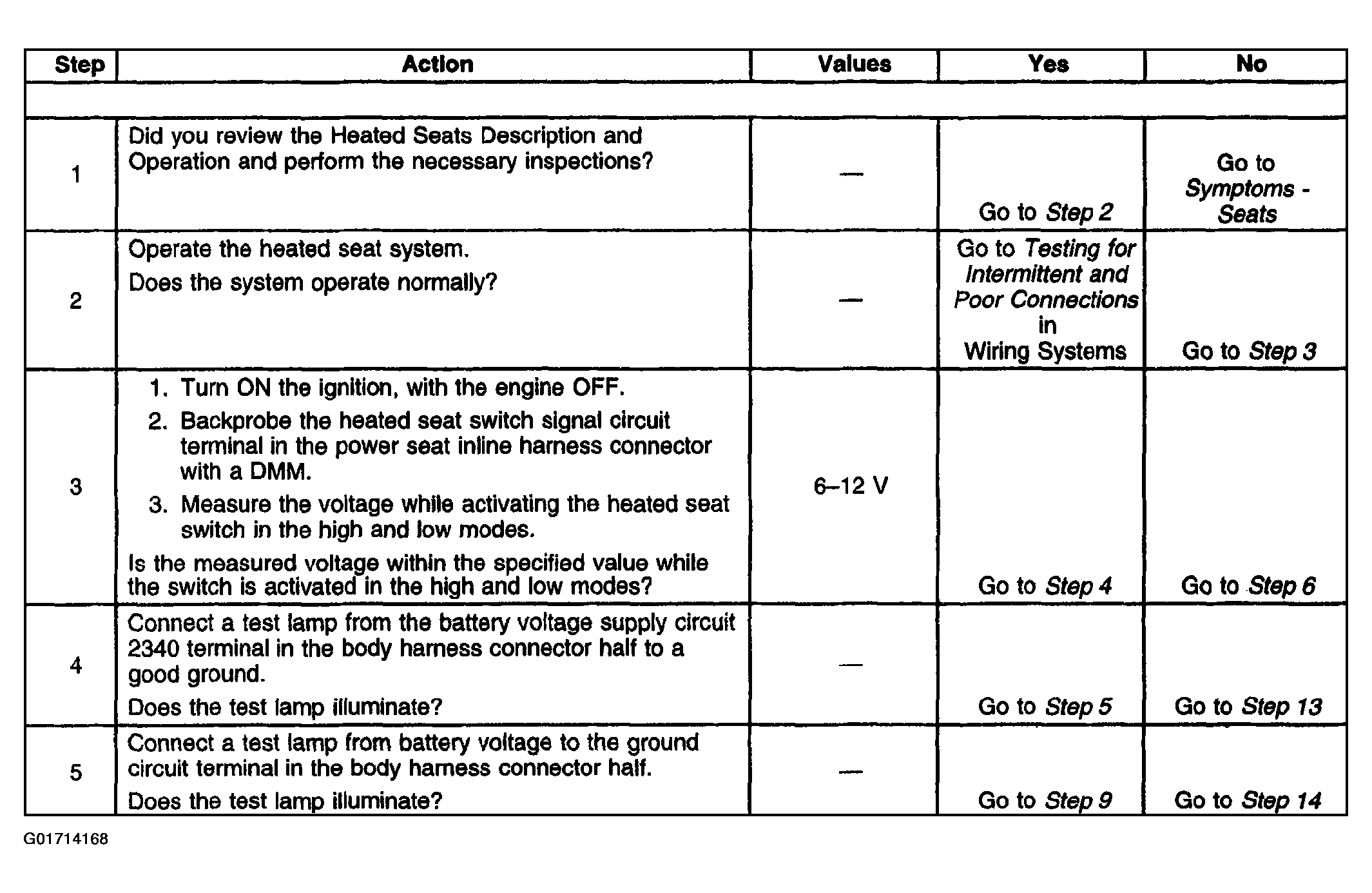

Fig 1: Heated Seat Inoperative Diagnosis (Steps 1-5)

Courtesy of GENERAL MOTORS CORP.

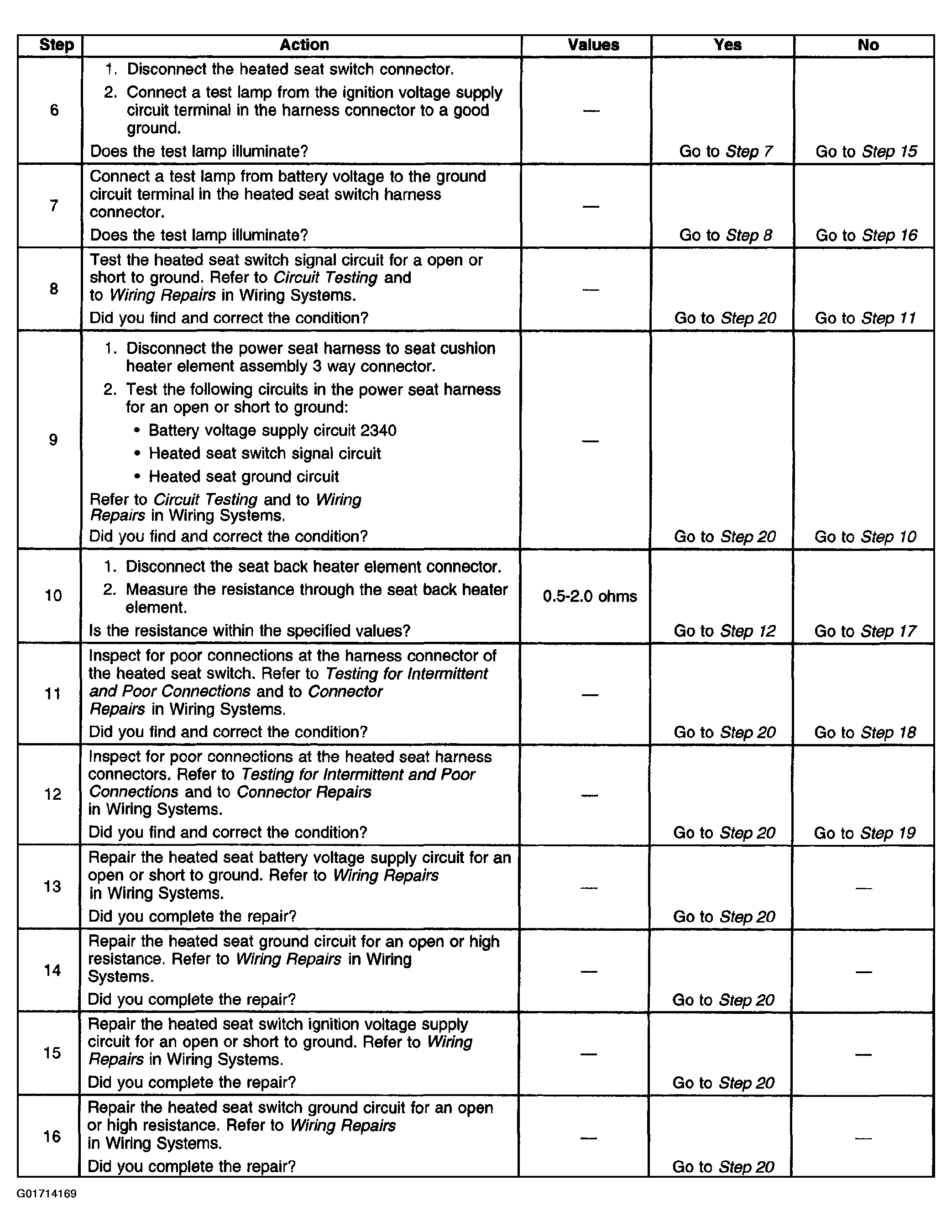

Fig 2: Heated Seat Inoperative Diagnosis (Steps 6-16)

Courtesy of GENERAL MOTORS CORP.

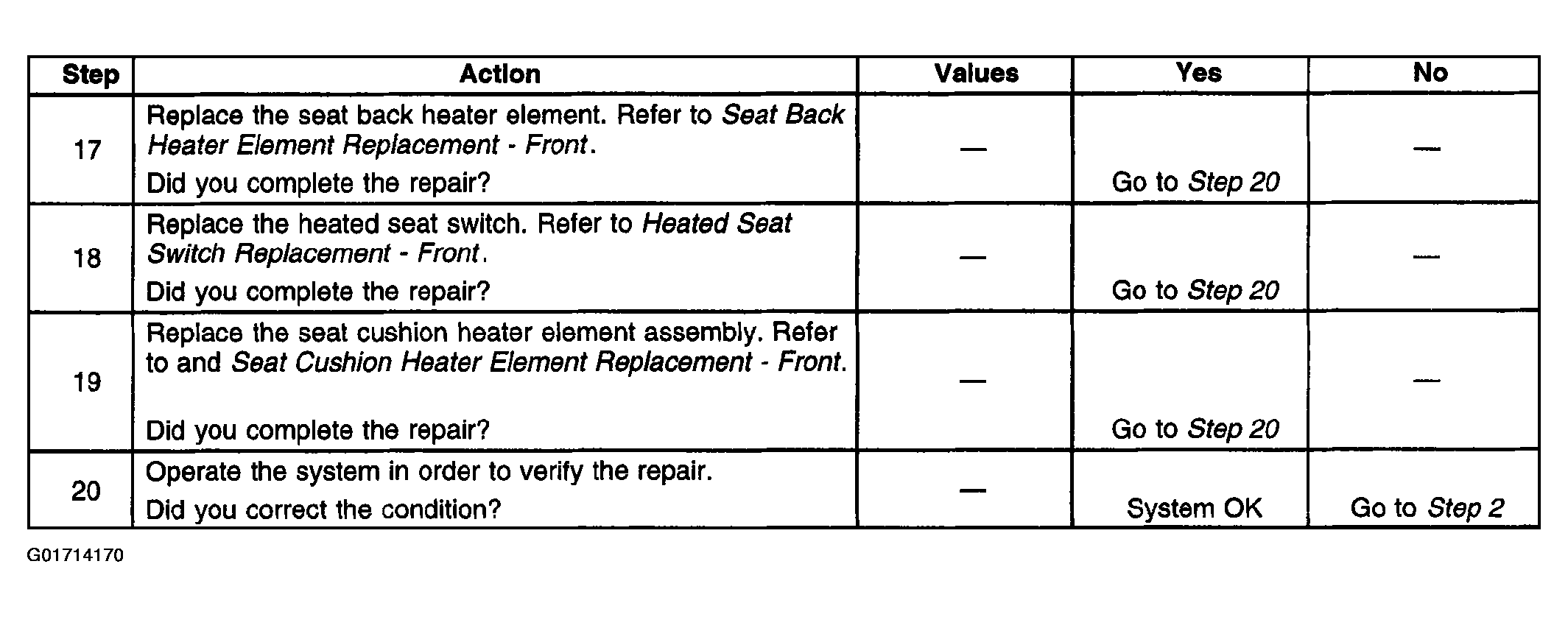

Fig 3: Heated Seat Inoperative Diagnosis (Steps 17-20)

Courtesy of GENERAL MOTORS CORP.
