Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially raise the window.

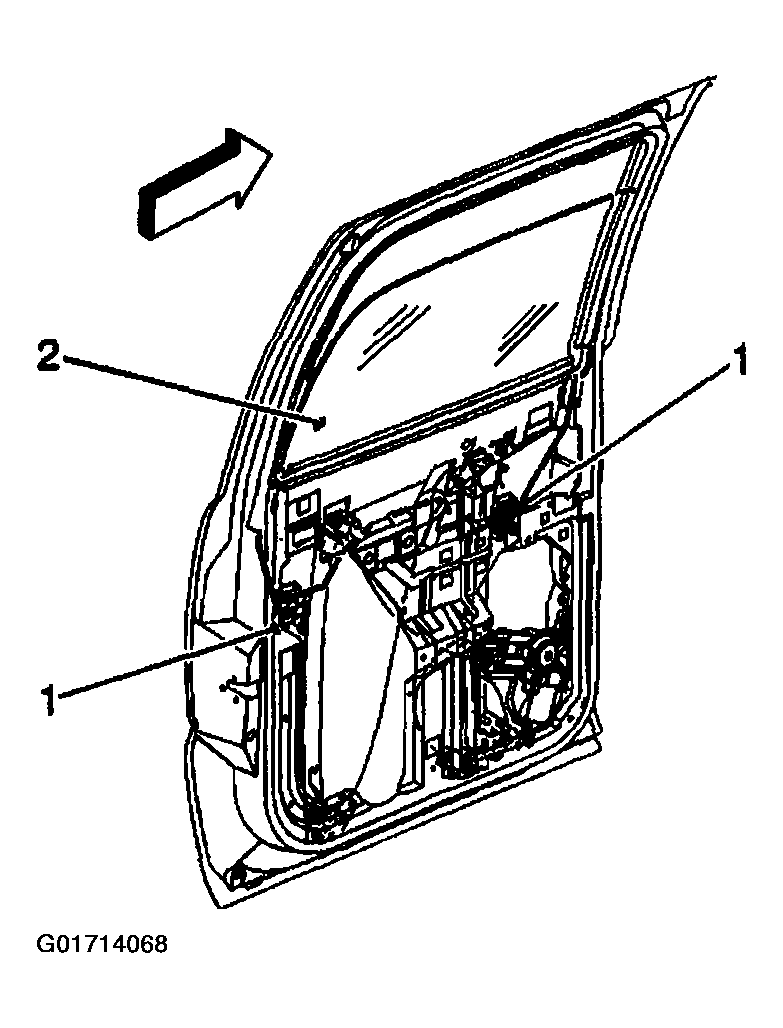

    Fig 1: Window Replacement - Rear Door
    G01714068Courtesy of GENERAL MOTORS CORP.
  2. Remove the manual door-lock lever.
  3. Remove the manual window handle, if equipped. Refer to Window Handle Replacement .
  4. Remove the power accessory switch panel. Refer to Power Accessory Switch Panel Replacement .
  5. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  6. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  7. Remove the front bolt attachment from the window run channel.
  8. Loosen the retaining bolts (1) from the window assembly.
  9. Remove the window glass (2) from the door by sliding the window glass out through the top.
