Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the window glass.

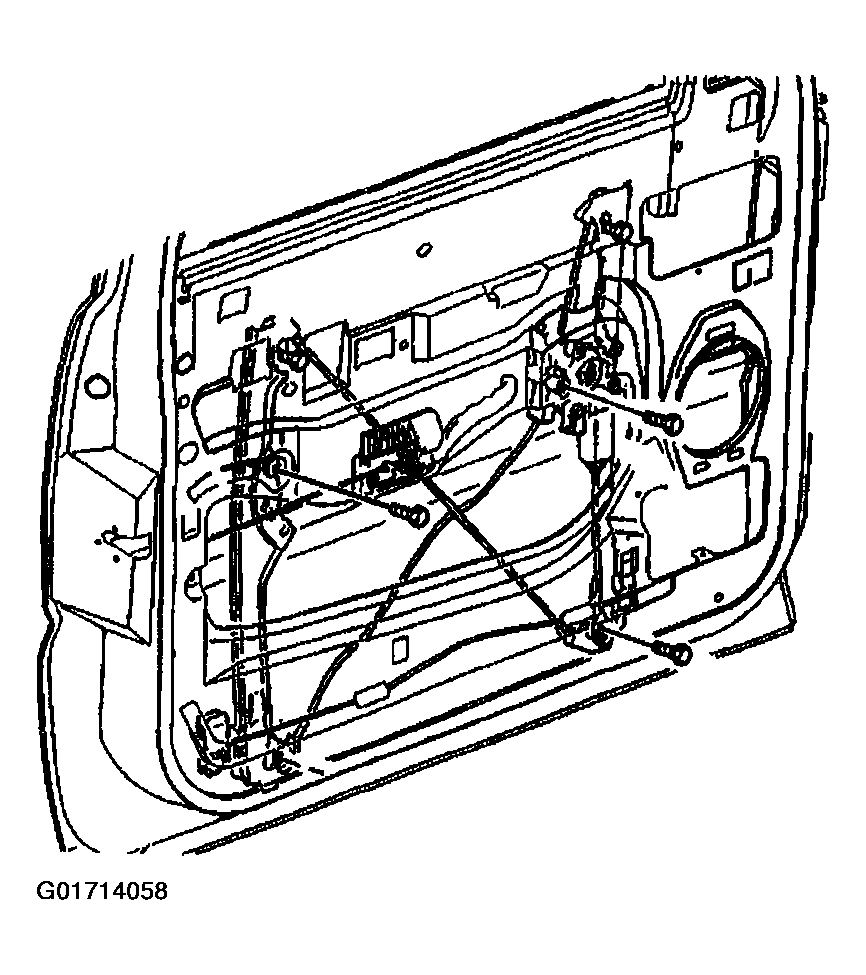

    Fig 1: Window Regulator Replacement - Rear Door
    G01714058Courtesy of GENERAL MOTORS CORP.
  2. Remove the trim panel. Refer to Trim Panel Replacement - Side Rear Door (Crew Cab) .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door (Crew Cab) .
  4. Remove the 2 bolts that hold the window to the regulator.
  5. Remove the bolts from the window regulator.
  6. Remove the window regulator assembly from the door by folding both sides together.
