Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the window glass.
  2. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the 2 bolts that hold the window to the regulator.
  5. Remove the bolts from the window regulator.
  6. Remove the window regulator assembly from the door by folding both sides together.

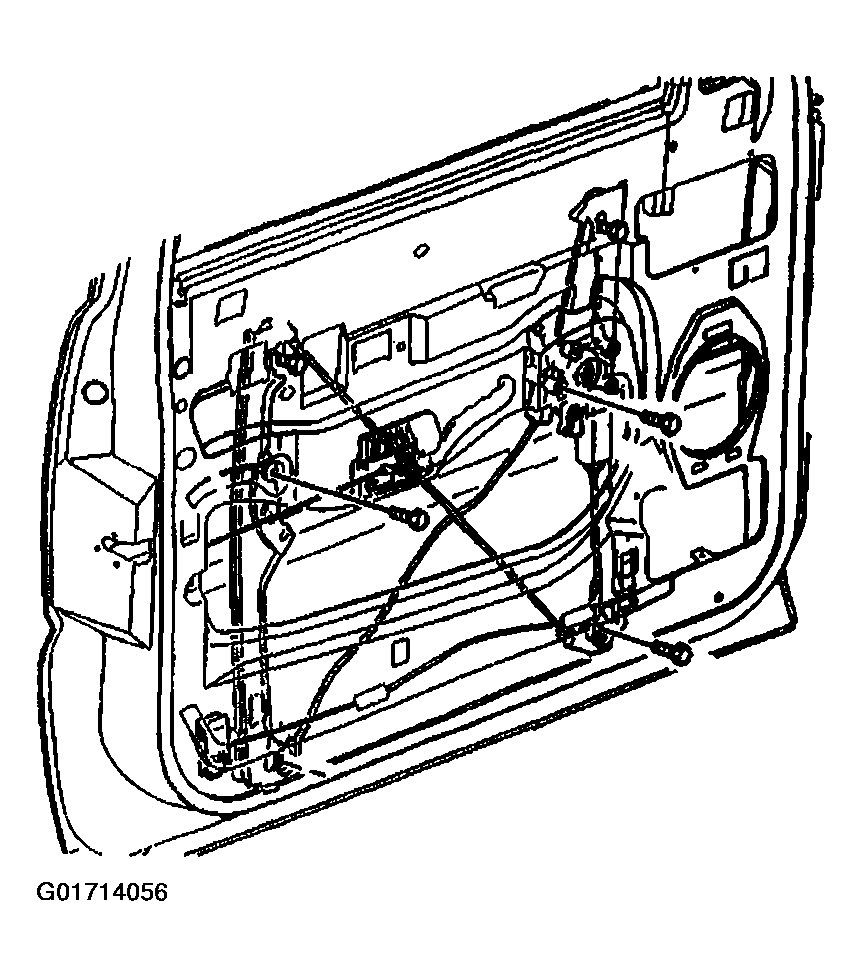

    Fig 1: Removing Window Regulator Assembly
    G01714056Courtesy of GENERAL MOTORS CORP.
