Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door.
  2. Remove the rear door weatherstrip by pulling the weatherstrip from the track.
  3. Release push-in retainers on lower weatherstrip from door.
  4. Remove the rear door weatherstrip from the rear door.

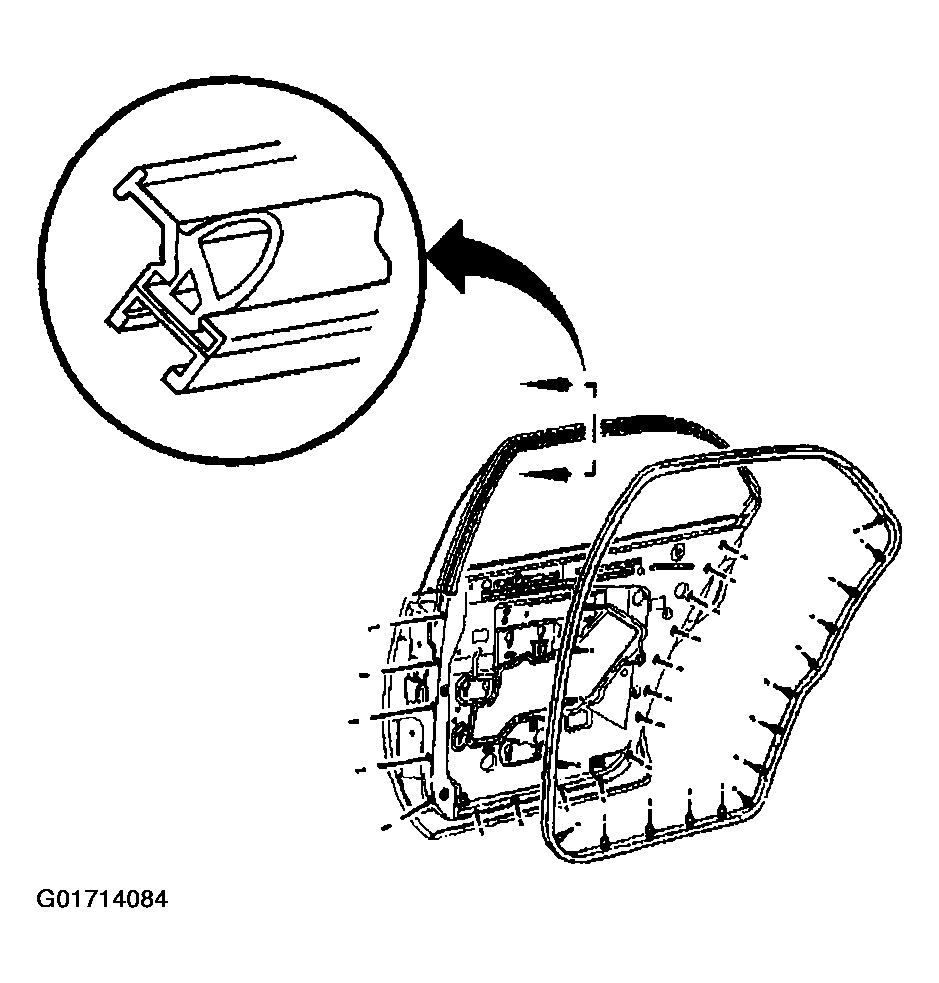

    Fig 1: Weatherstrip Replacement - Rear Door
    G01714084Courtesy of GENERAL MOTORS CORP.
