Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the window. Refer to Window Replacement - Rear Door .

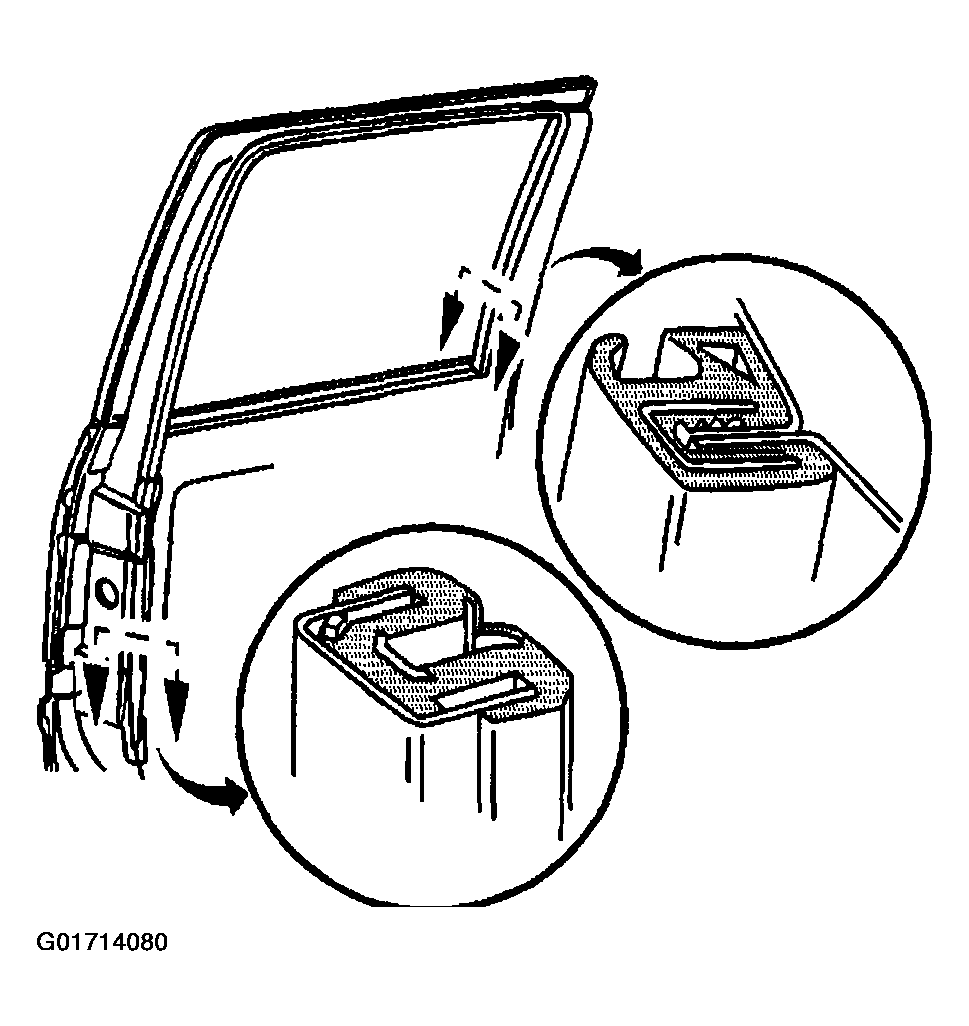

    Fig 1: Weatherstrip Replacement - Rear Door Window
    G01714080Courtesy of GENERAL MOTORS CORP.
  2. Pull the weatherstrip from the front window run channel.
  3. Pull the weatherstrip from the rear window run channel.
  4. Pull the weatherstrip from the window frame flange.
