Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Remove the sill plate.

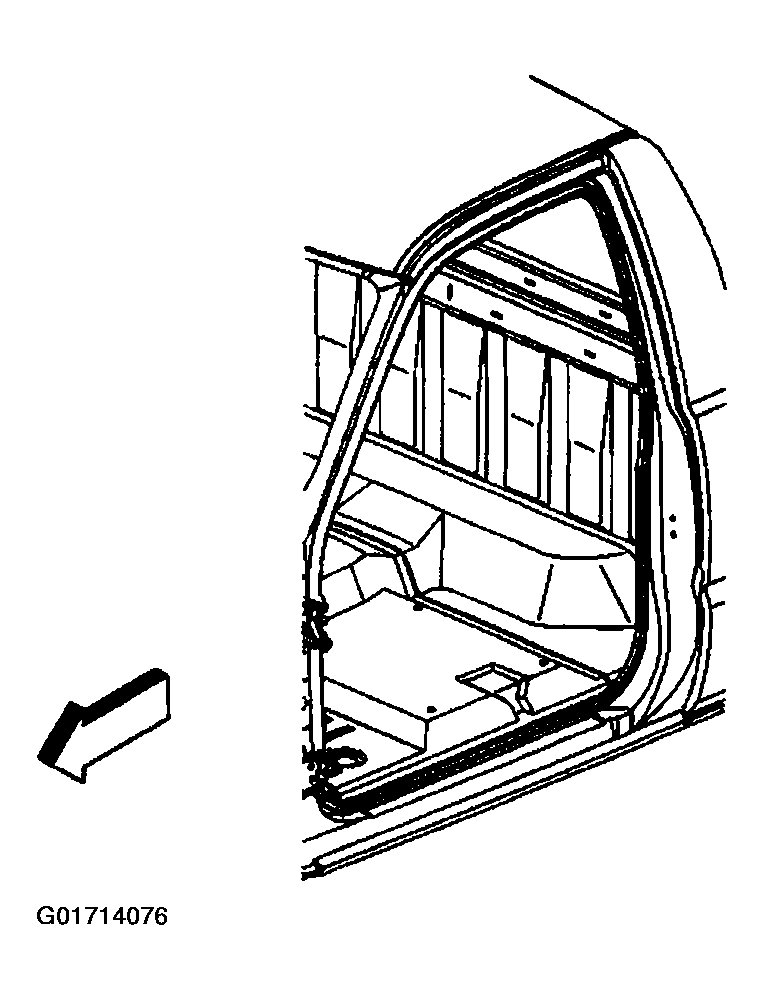

    Fig 1: Weatherstrip Replacement - Front Door
    G01714076Courtesy of GENERAL MOTORS CORP.
  3. Remove the hinge pillar trim panel.
  4. Remove the windshield pillar molding.
  5. Remove the weatherstrip from the rear side door opening. Pull the unit away from channel, separating the weatherstrip from the pinchweld flange.
