Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Important: Water deflectors seal the inner panel. Water deflectors prevent water from entering into the body. A strip of adhesive between the deflector and the door secures the deflector.

Remove the trim panel. Refer to Trim Panel Replacement - Side Access Door .
Using a flat-blade tool, break the bond between the sealer and the door.

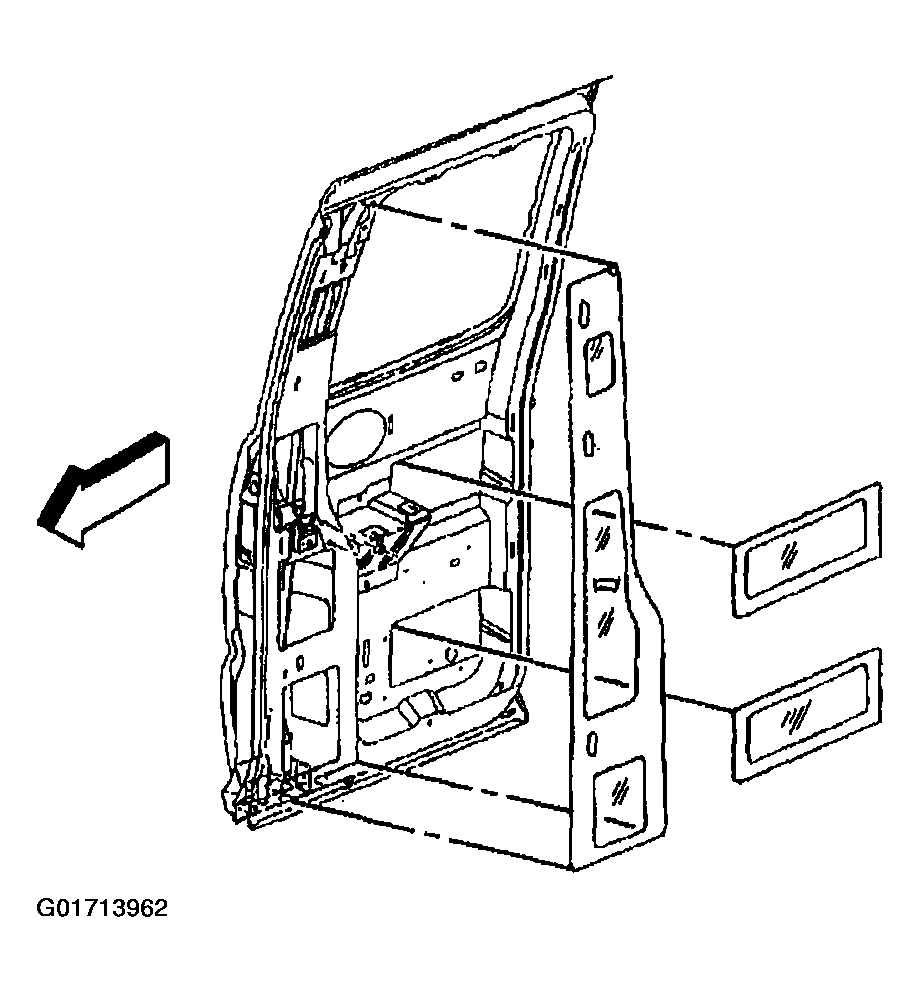

Fig 1: Water Deflector Replacement
Courtesy of GENERAL MOTORS CORP.
Pull the waterproof sealing tape from the deflectors.
Remove the water deflectors.
