Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door handle bezel. Refer to Handle Bezel Replacement - Inside .
  2. Remove the window handle, if equipped. Refer to Window Handle Replacement .
  3. Remove the power accessory switch panel. Refer to Power Accessory Switch Panel Replacement .
  4. Remove the upper extension of the trim panel. Refer to Trim Panel Replacement - Upper Extension .
  5. Remove the manual lock lever from the trim panel using a flat bladed tool.
  6. Remove the trim panel screws.
  7. Remove the courtesy lamp, if equipped. Refer to COURTESY LAMP/REFLECTOR REPLACEMENT - DOOR .

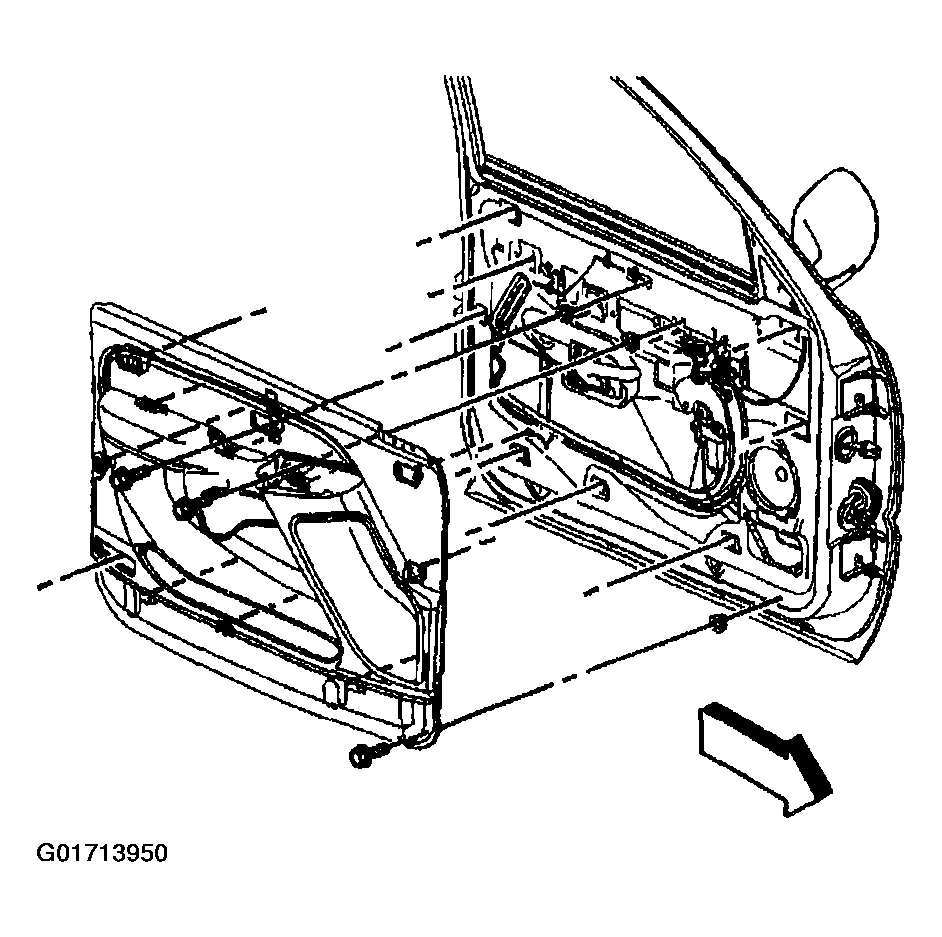

    Fig 1: Removing Trim Panel From Door
    G01713950Courtesy of GENERAL MOTORS CORP.
  8. Remove the trim panel from the door. Carefully slide the trim panel up in order to release the retainers from the door.
  9. Disconnect the electrical connectors.
