Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door handle bezel. Refer to Handle Bezel Replacement - Inside .
  2. Remove the screws that retain the trim panel armrest.

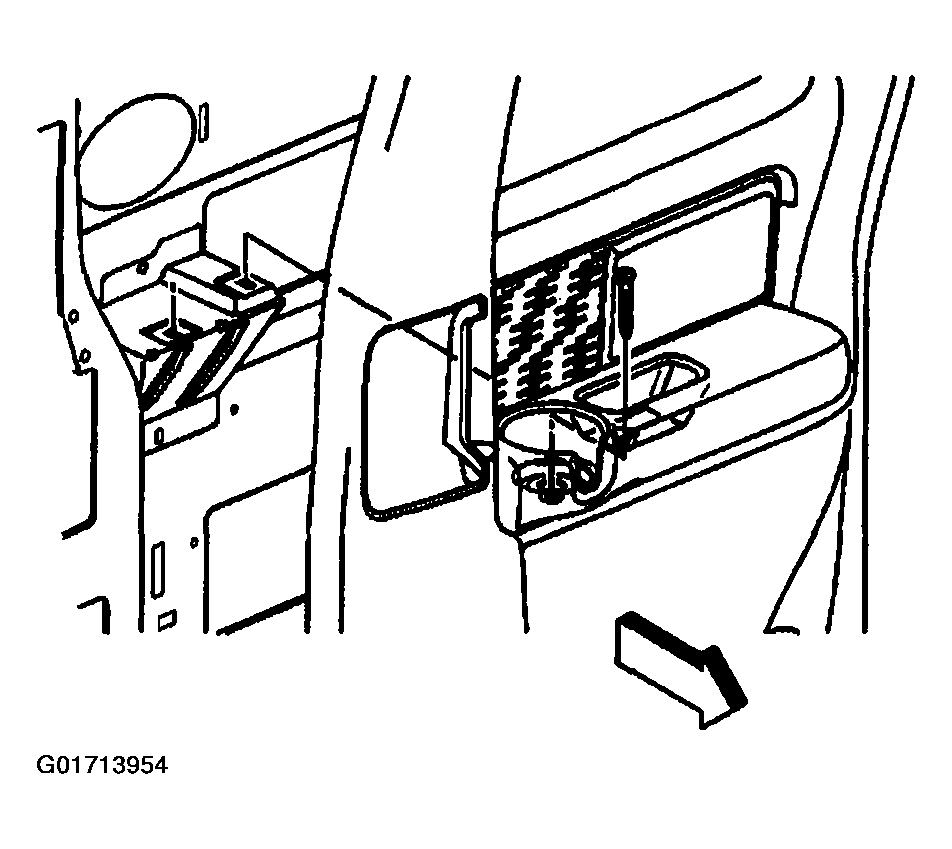

    Fig 1: Trim Panel Armrest
    G01713954Courtesy of GENERAL MOTORS CORP.
  3. Insert a flat-bladed tool between the trim panel and the door in order to carefully pry the panel from the door.

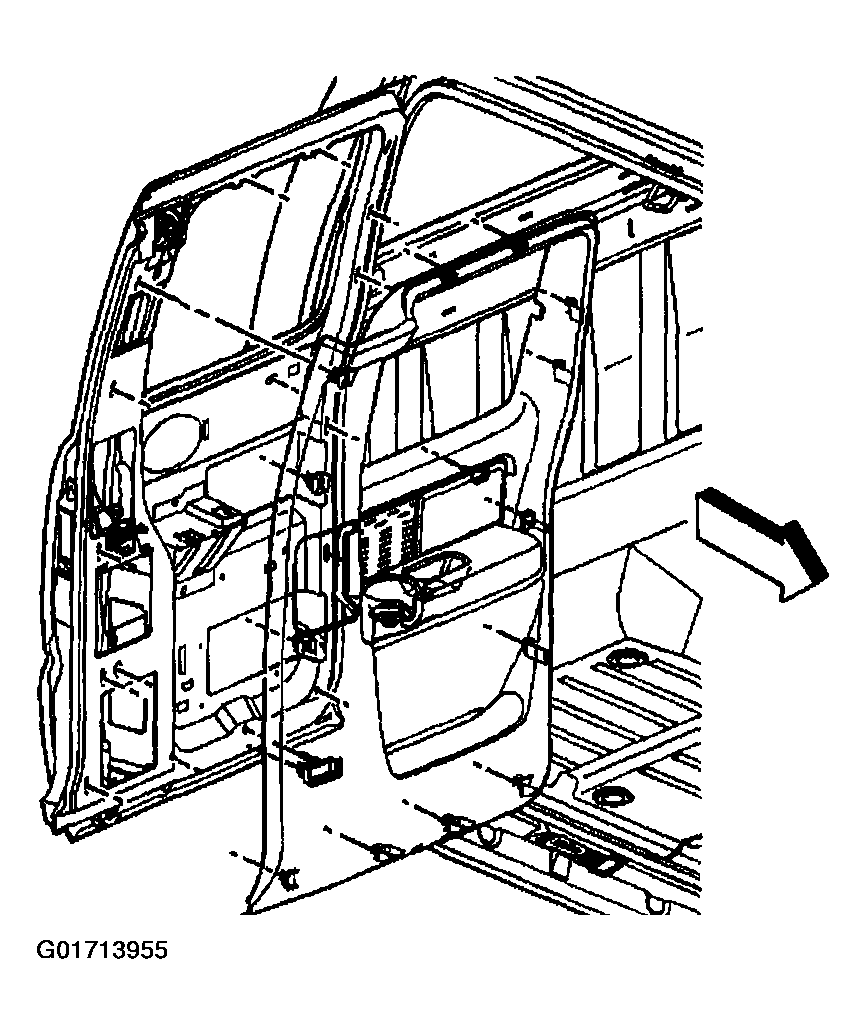

    Fig 2: Side Access Door Trim Panel Replacement
    G01713955Courtesy of GENERAL MOTORS CORP.
