Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the side access door.
  2. Remove the lower door striker bolts.
  3. Remove the lower door striker from the vehicle.

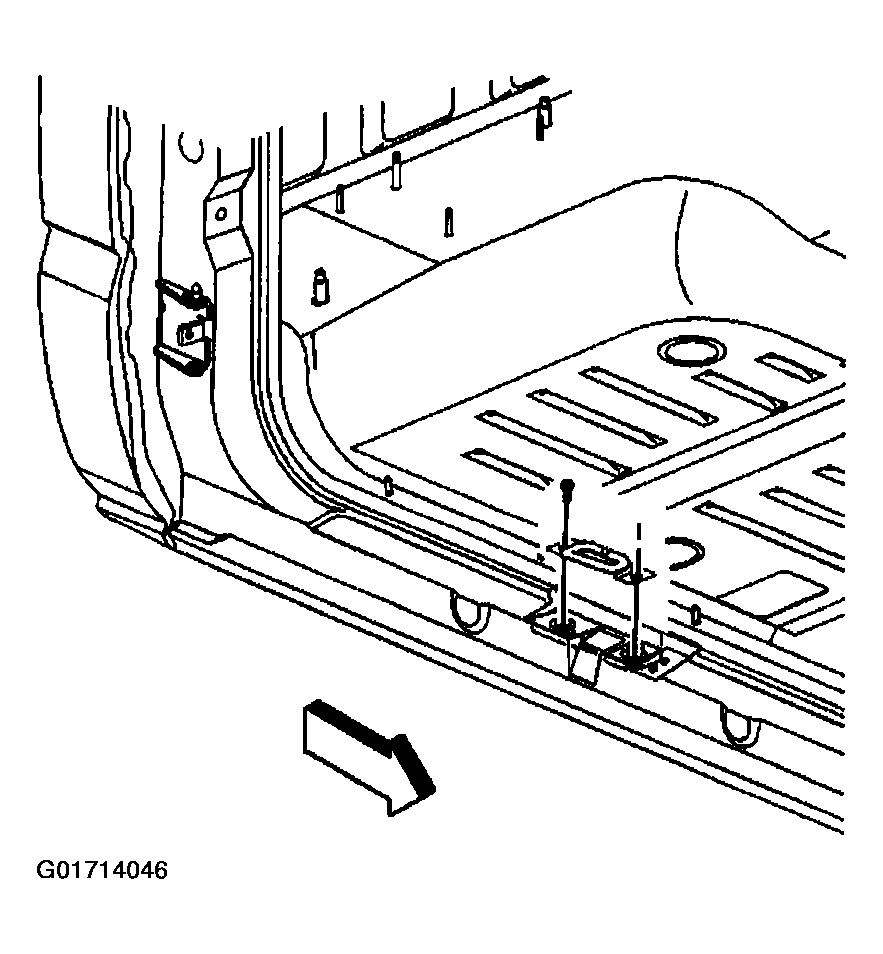

    Fig 1: Striker Replacement - Lower
    G01714046Courtesy of GENERAL MOTORS CORP.
