Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Important: If both of the door striker bolts are removed at the same time, the striker backing plate will fall into the body. This will result in additional time to perform the repair.

Remove the lower striker bolt.

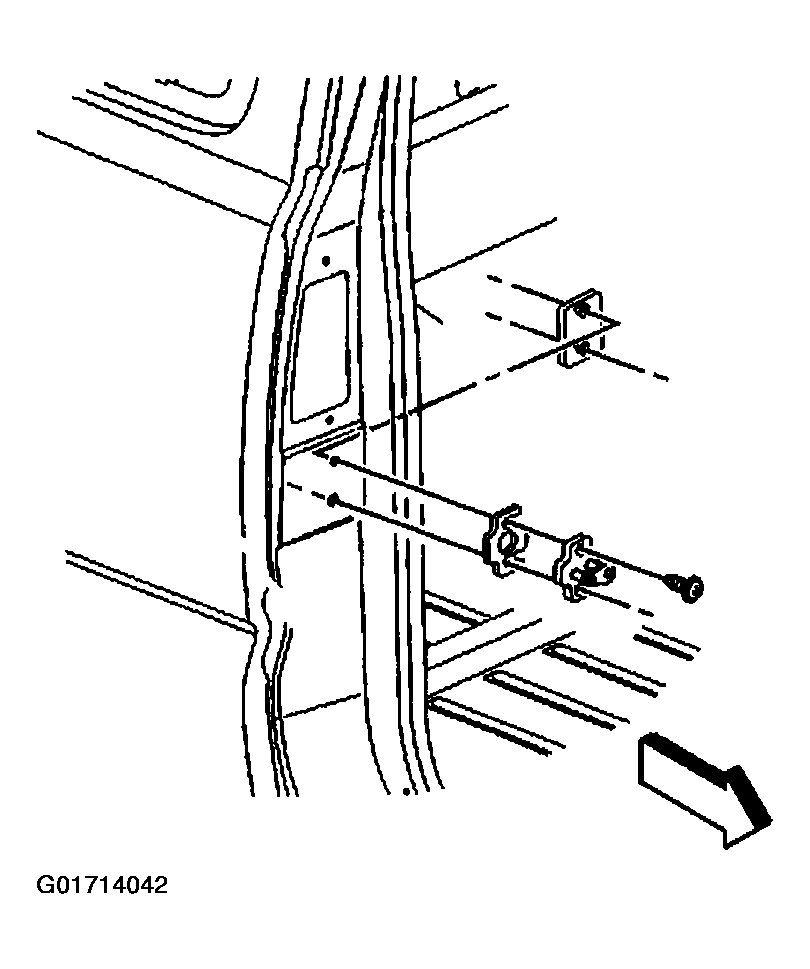

Fig 1: Removing Lower Striker
Courtesy of GENERAL MOTORS CORP.
Loosen the upper striker bolt enough in order to rotate the striker and the spacer (if equipped) away from the lower bolt hole.
Install the lower striker bolt. Tighten the lower striker bolt sufficiently in order to hold the striker backing plate in place.
Remove the upper striker bolt.
Remove the spacer, if equipped.
Remove the striker.
