Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel upper extension. Refer to Trim Panel Replacement - Upper Extension .
  2. Remove the insulator, if equipped.
  3. Disconnect the electrical connector.

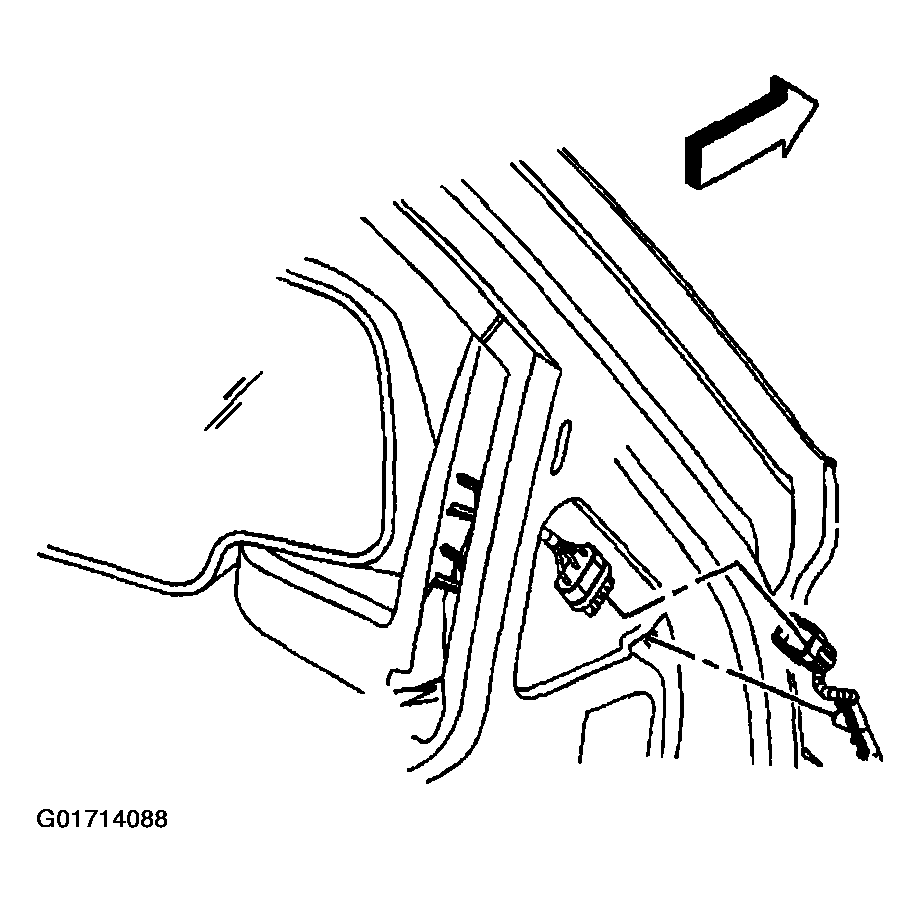

    Fig 1: Power Mirror Electrical Connector
    G01714088Courtesy of GENERAL MOTORS CORP.
  4. Remove the nuts securing the outside mirror to the door.
  5. Remove the mirror from the door.

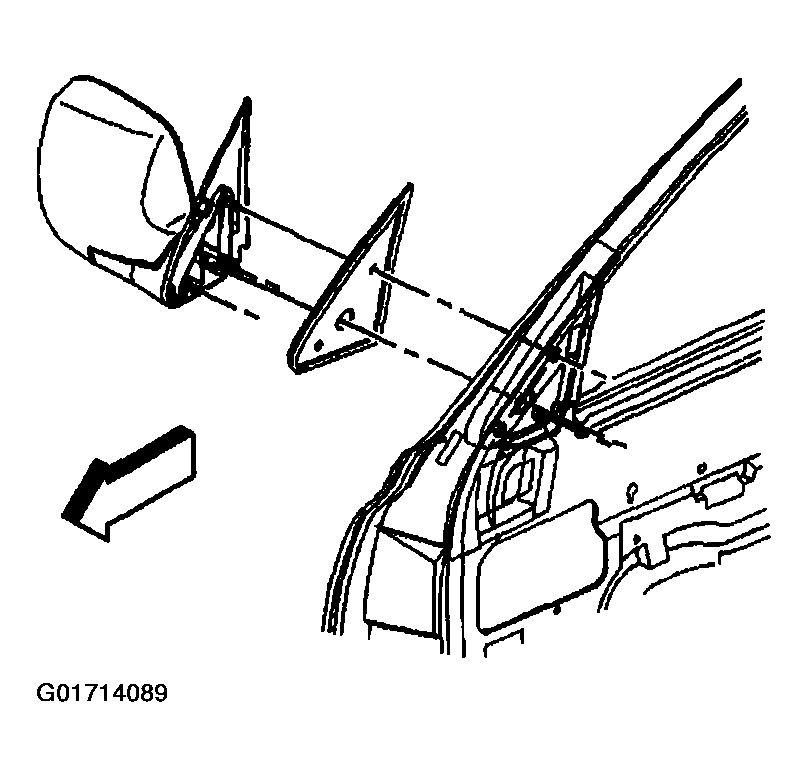

    Fig 2: Removing Mirror From Door
    G01714089Courtesy of GENERAL MOTORS CORP.
