Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door trim panel upper extension. Refer to Trim Panel Replacement - Upper Extension .
Remove the nuts that retain the outside mirror to the door.
Remove the outside mirror from the door.

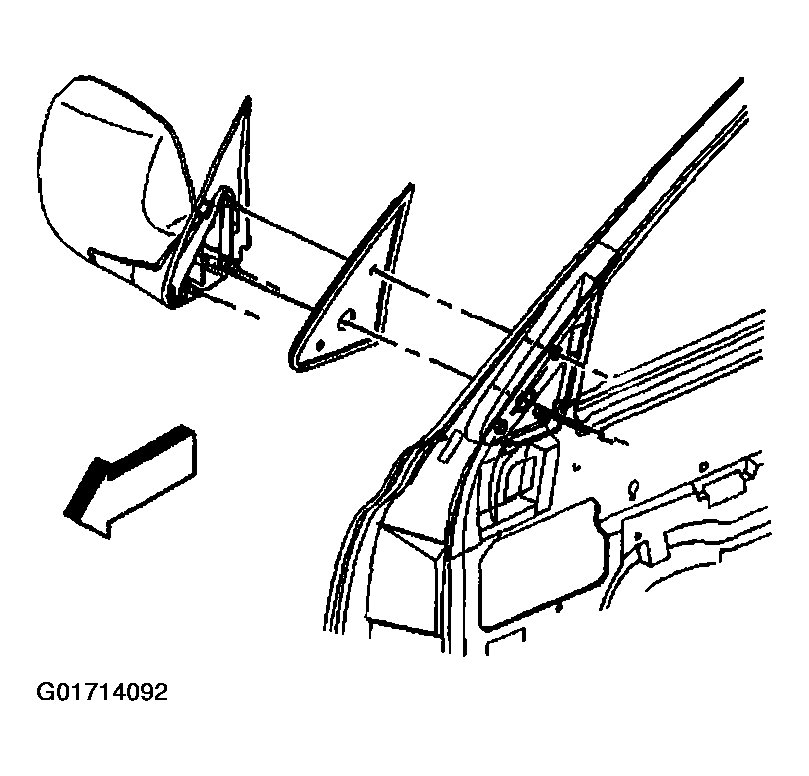

Fig 1: Removing Outside Mirror From Door
Courtesy of GENERAL MOTORS CORP.
