Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.

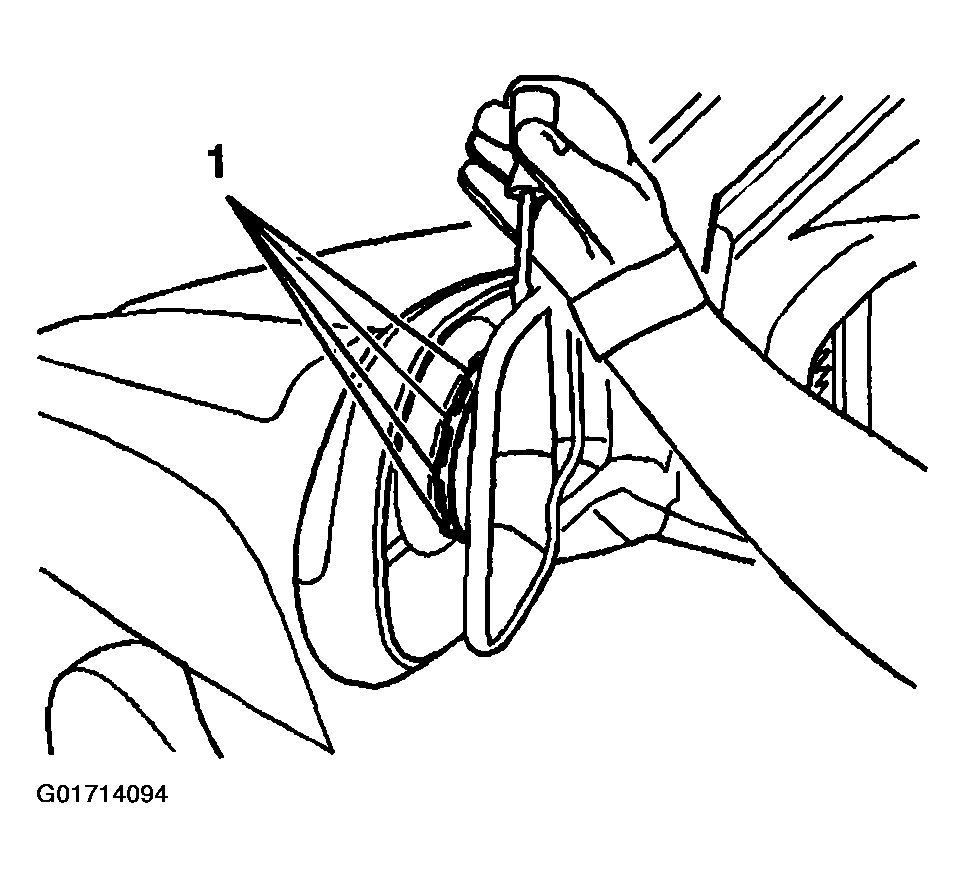

Fig 1: Mirror Face Replacement

Courtesy of GENERAL MOTORS CORP.

Important: When removing electrochromatic glass that is broken, or if glass breaks during replacement, be cautious not to spill electrochromatic fluid on to vehicle. Doing so will cause damage to the vehicle.

Adjust mirror face as shown in picture to obtain access to mirror face retention clips (1).
Position flat-bladed tool between back side of mirror face and the adjuster mechanism as shown in picture.
With a twisting motion of the flat bladed tool, separate the mirror face from the adjuster mechanism by releasing the mirror face retention clips (1).
With mirror face in hand, disconnect the electrical connectors.
Remove the mirror face from the mirror housing.
Inspect the adjuster mechanism for damage.
