Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the window completely.

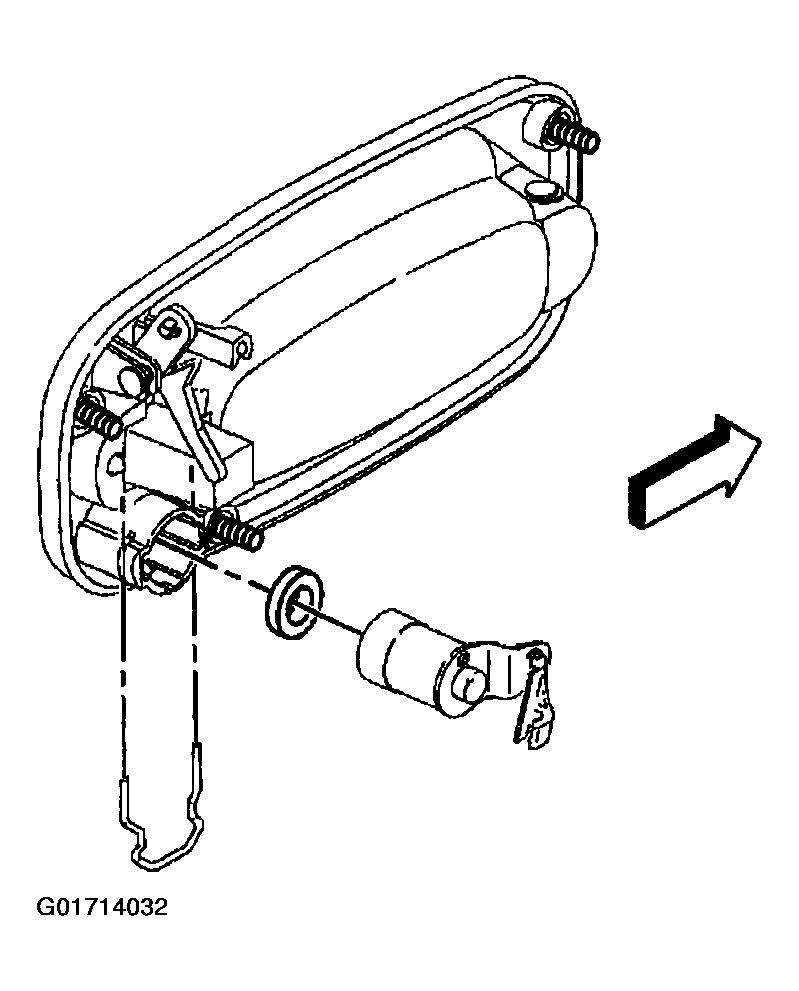

    Fig 1: Door Lock Cylinder Replacement
    G01714032Courtesy of GENERAL MOTORS CORP.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the outside door handle. Refer to Door Handle Replacement - Outside .
  5. Remove the clip that retains the lock cylinder lever to the lock cylinder.
  6. Remove the lock cylinder retainer. Remove the lock cylinder from the outside door handle.
