Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a flat-bladed tool between the door handle bezel and the trim panel in order to release the handle bezel tab retainers.
  2. Remove the door handle bezel from the door panel.

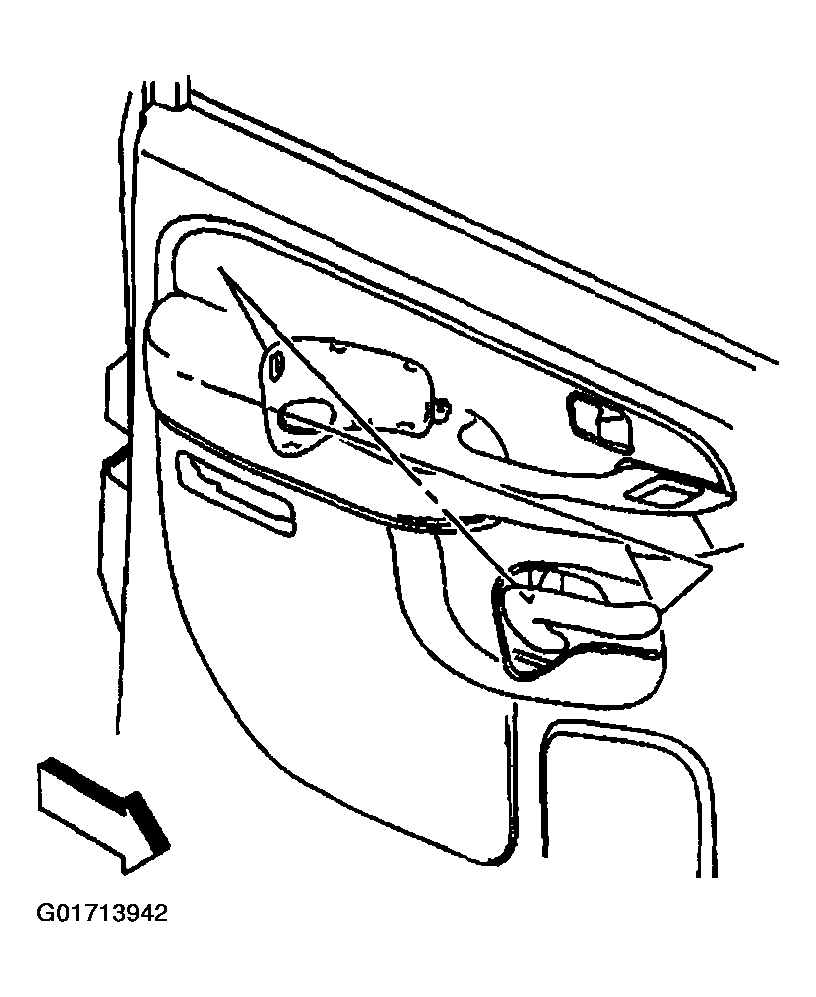

    Fig 1: Door Handle Bezel
    G01713942Courtesy of GENERAL MOTORS CORP.
