Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door (Crew Cab) .
  2. Remove the window. Refer to Module Replacement - Rear Power Window .
  3. Remove the inside door handle. Refer to Door Handle Replacement - Inside .
  4. Remove the outside door handle. Refer to Door Handle Replacement - Outside .
  5. Remove the door lock actuator. Refer to Lock Actuator Replacement - Rear Door .
  6. Remove the weatherstrip from the door. Refer to Weatherstrip Replacement - Rear Door .
  7. Disconnect the door wire harness. Refer to Wiring Harness Replacement - Door .
    8. Fig 1: Door Wire Harness
    G01713975Courtesy of GENERAL MOTORS CORP.
  8. Remove the door check link bolt from the pillar side.

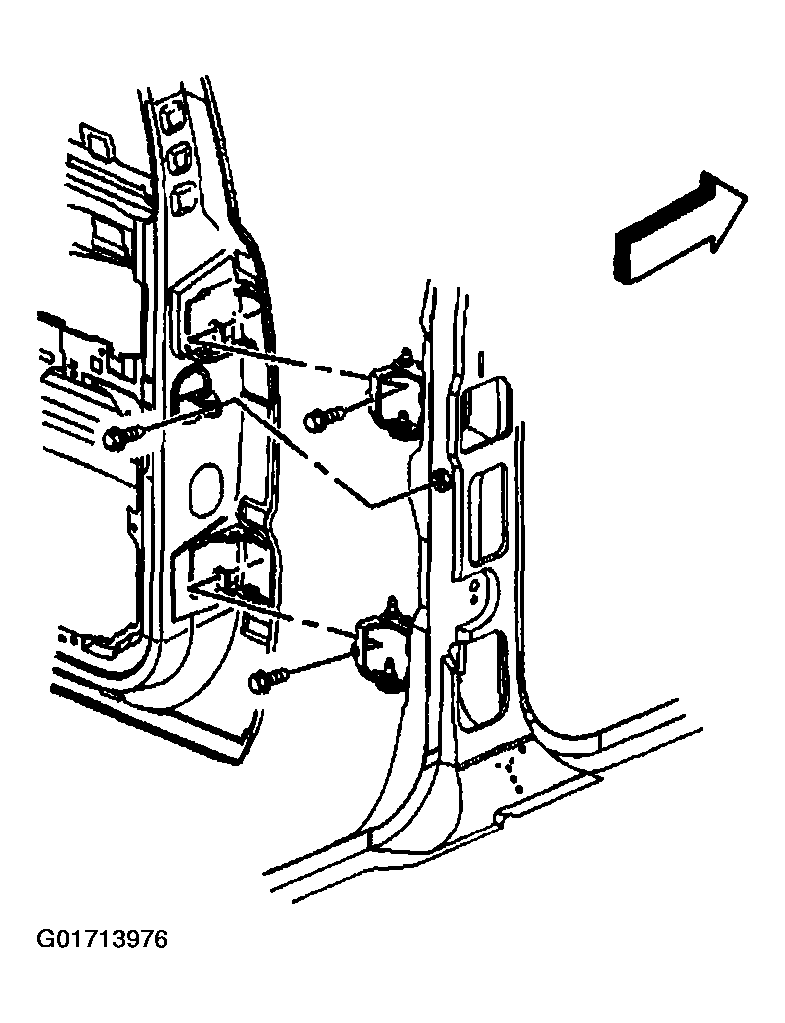

    9. Fig 2: Removing Door Check Link Bolt From Pillar Side
    G01713976Courtesy of GENERAL MOTORS CORP.
  9. With an assistant, remove the bolts from the upper and the lower door hinges.
  10. With an assistant, lift the door up from the hinge pins and remove the door from the vehicle.
