Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Access Door .
  2. Remove the stationary window. Refer to REAR WINDOW REPLACEMENT (PICKUP) .
  3. Remove the inside door handle. Refer to Door Handle Replacement - Inside .
  4. Remove the outside door handle. Refer to Door Handle Replacement - Outside .
  5. Remove the upper and lower door latches. Refer to Latch Replacement - Side Door Upper  or Latch Replacement - Side Door Lower  .
  6. Remove the door speaker.
  7. Remove the weatherstrip from the door. Refer to Weatherstrip Replacement - Side Door Opening .
  8. Disconnect the door wire harness. Refer to Wiring Harness Replacement - Door .

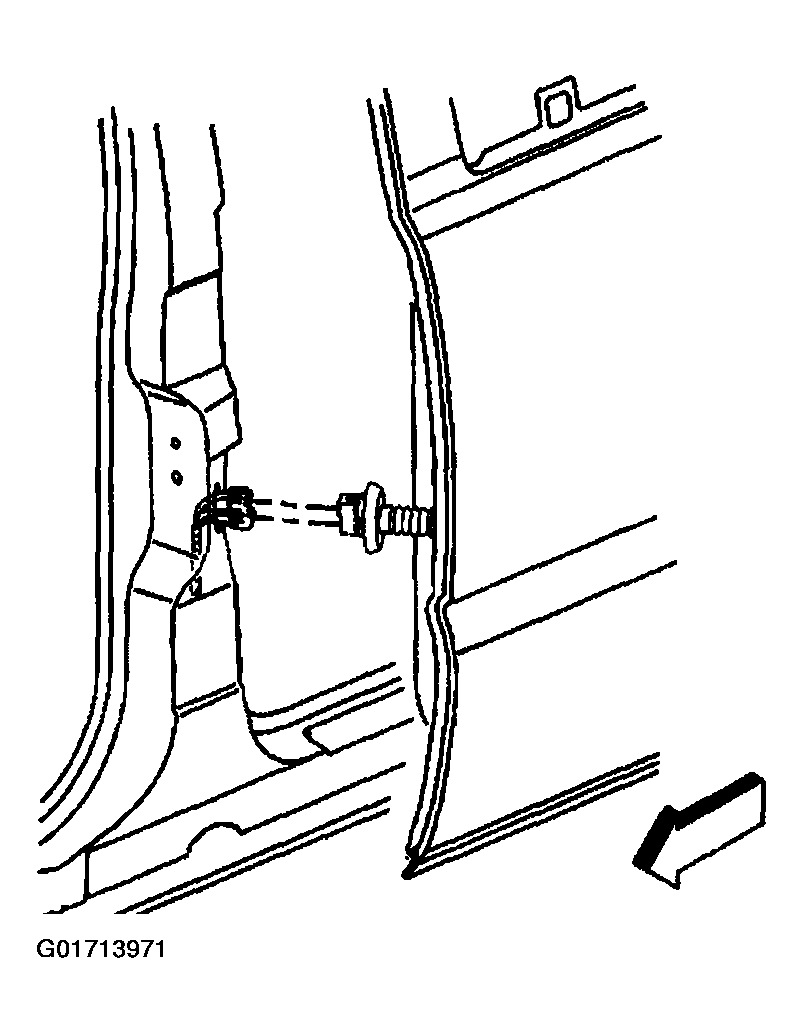

    9. Fig 1: Disconnecting Door Wire Harness
    G01713971Courtesy of GENERAL MOTORS CORP.
  9. Remove the front door striker. Refer to Striker Replacement - Door .
  10. Remove the door check link bolt from the pillar side.
  11. Remove the hinge retaining clips.

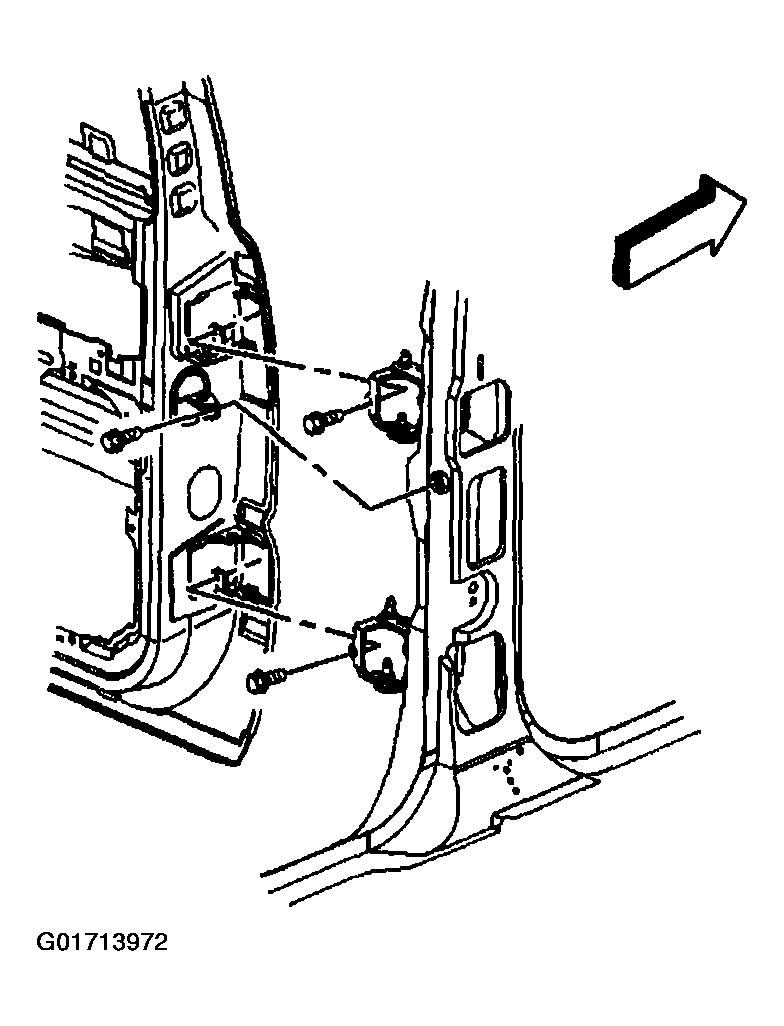

    12. Fig 2: Removing Hinge Retaining Clips
    G01713972Courtesy of GENERAL MOTORS CORP.
  12. With an assistant, lift the door up from the hinge pins and remove the door from the vehicle.
