Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the inside door handle mounting bolts.
  3. Slide the inside door handle forward to release the unit from the door.

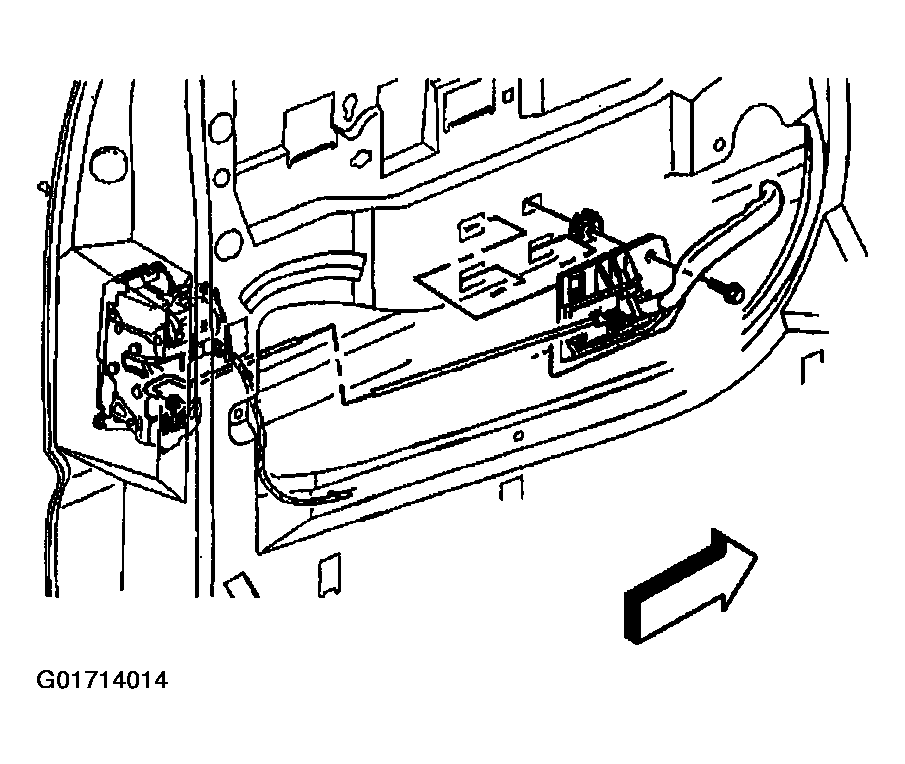

    Fig 1: Removing Inside Door Handle
    G01714014Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the control rod from the inside door handle.
  5. Remove the door handle assembly from the door.

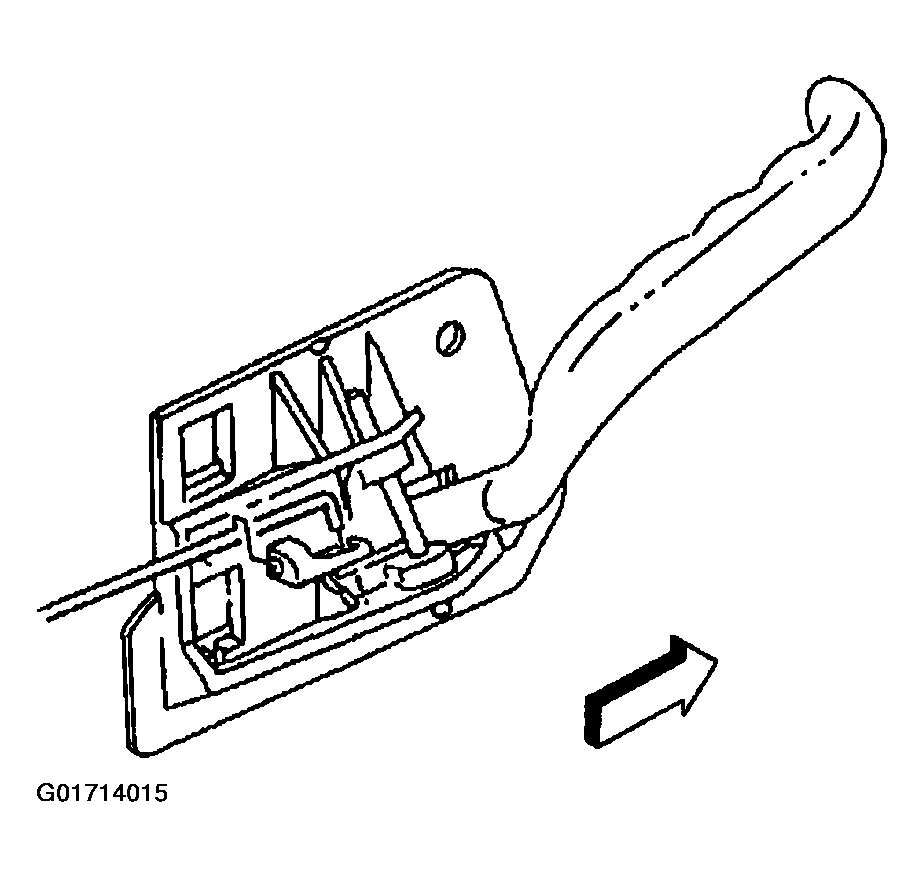

    Fig 2: Removing Door Handle Assembly From Door
    G01714015Courtesy of GENERAL MOTORS CORP.
