Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a flat-bladed tool at the top between the door bezel and the door panel.
  2. Carefully bend outward the retaining clips while pulling out the bezel.

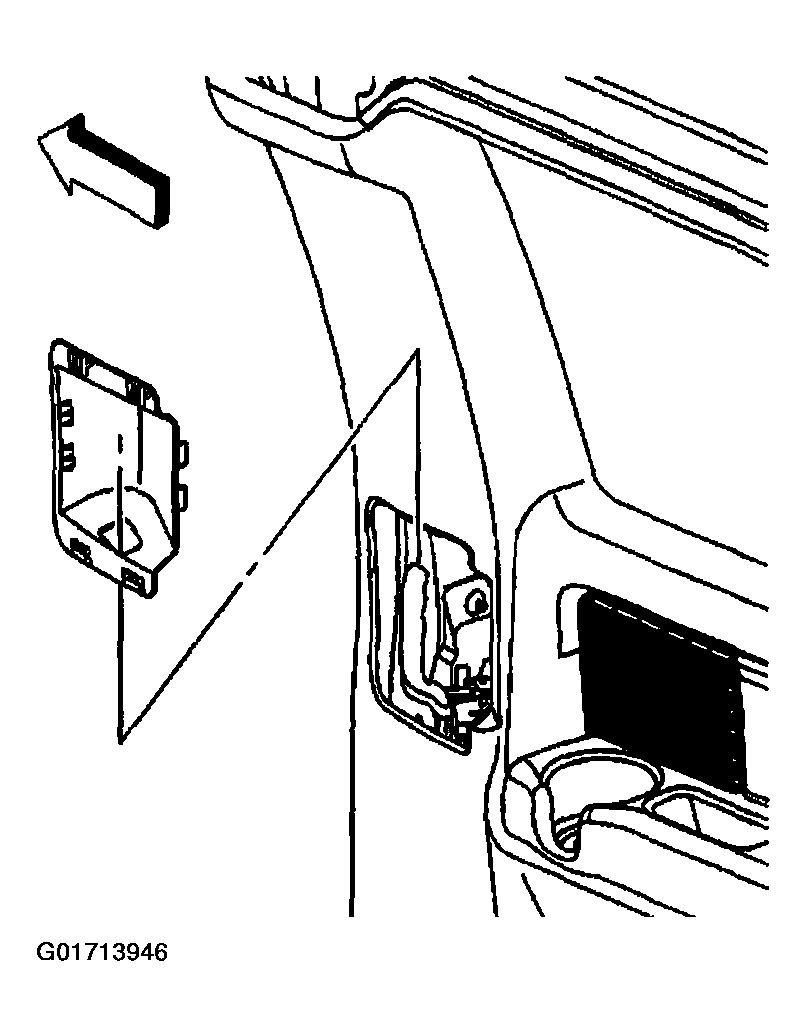

    Fig 1: Door Handle Bezel Replacement
    G01713946Courtesy of GENERAL MOTORS CORP.
