Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully open the door.
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Remove the water deflector. Refer to Window Regulator Replacement - Front Door .
  4. Remove the body-side check strap bolt.
  5. Remove the check strap plug.
  6. Remove the door-side check strap nuts.

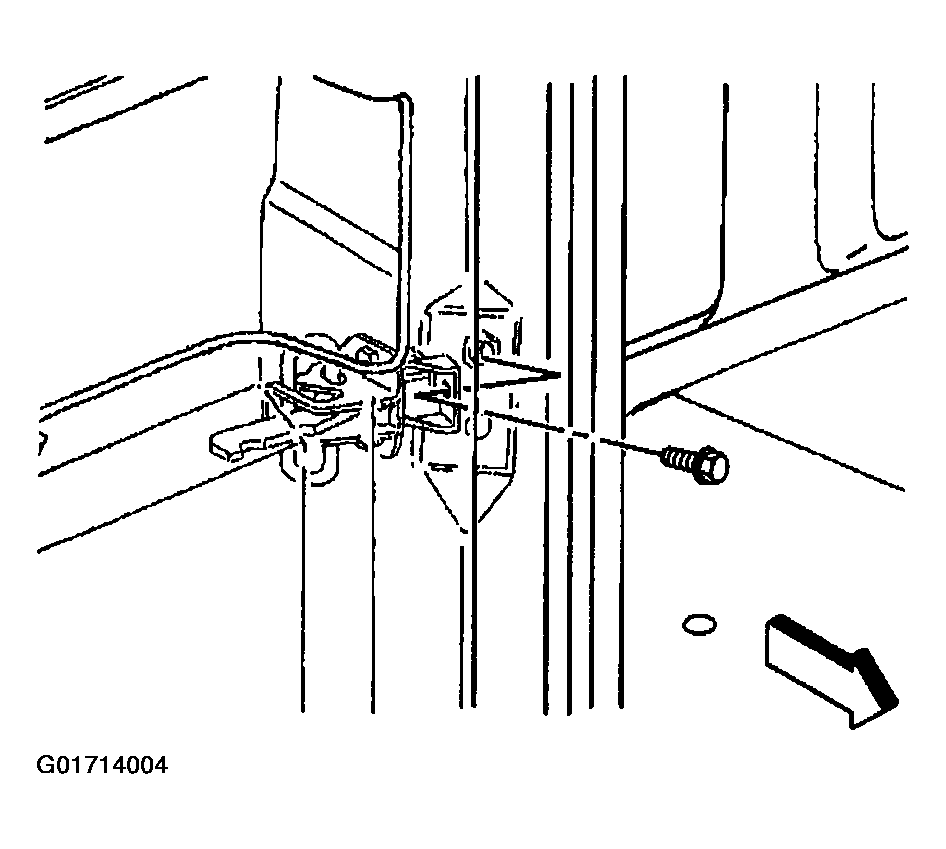

    7. Fig 1: Door-Side Check Strap
    G01714004Courtesy of GENERAL MOTORS CORP.
  7. Pull the check strap from the inside of the door.
