Test Description

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. 6)  This step tests the integrity of both the mirror control circuits and the power mirror switch. If both power mirrors are inoperative on 1 or more axis, begin testing by disconnecting one of the power mirrors, if an open circuit is detected and repaired for that power mirror, repeat step 6 for the other power mirror.
  2. 7)  This step tests the integrity of the battery positive voltage circuit not the fuse.

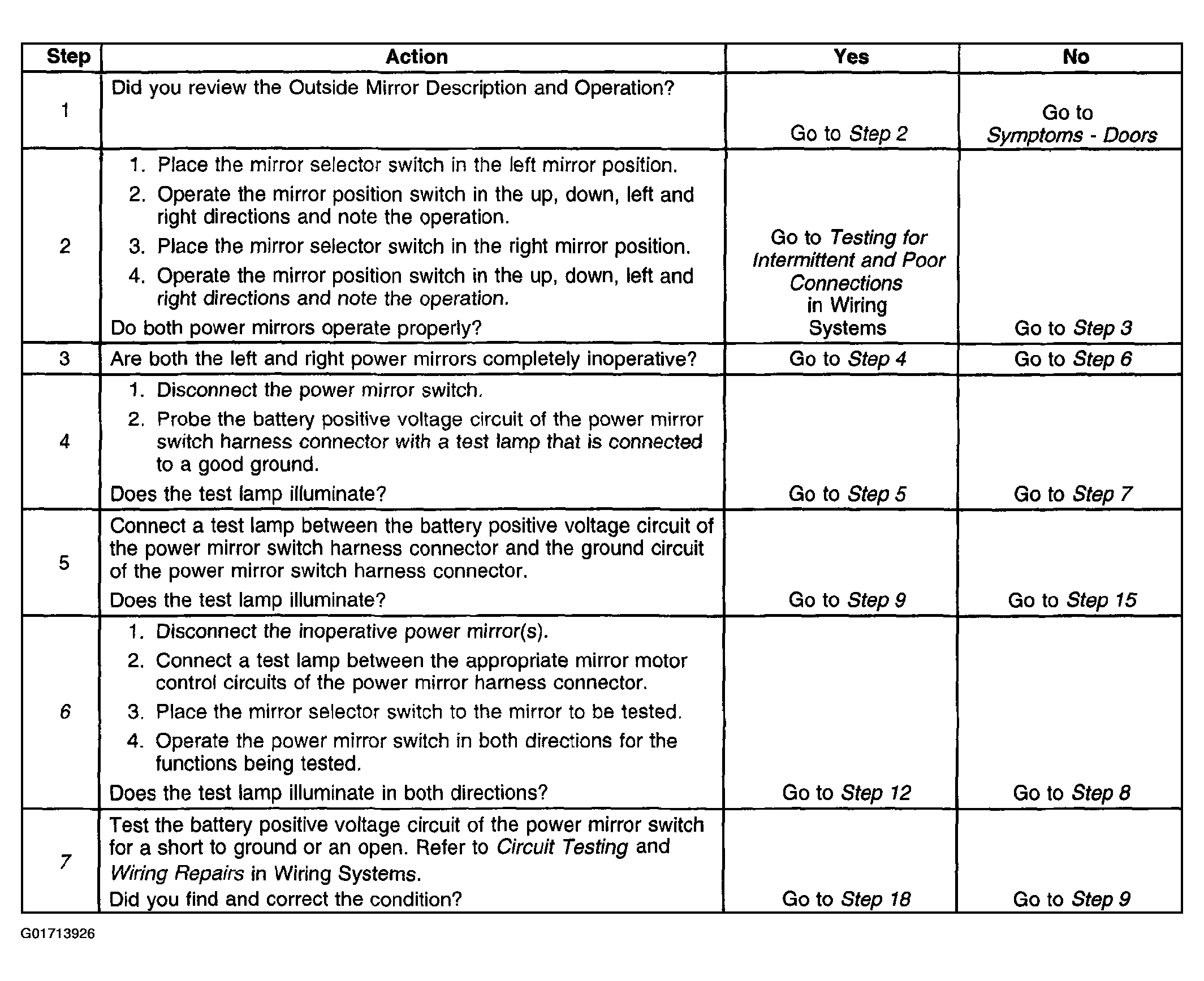

Fig 1: Power Mirrors Inoperative (Except Escalade) (Steps 1-7)
G01713926Courtesy of GENERAL MOTORS CORP.

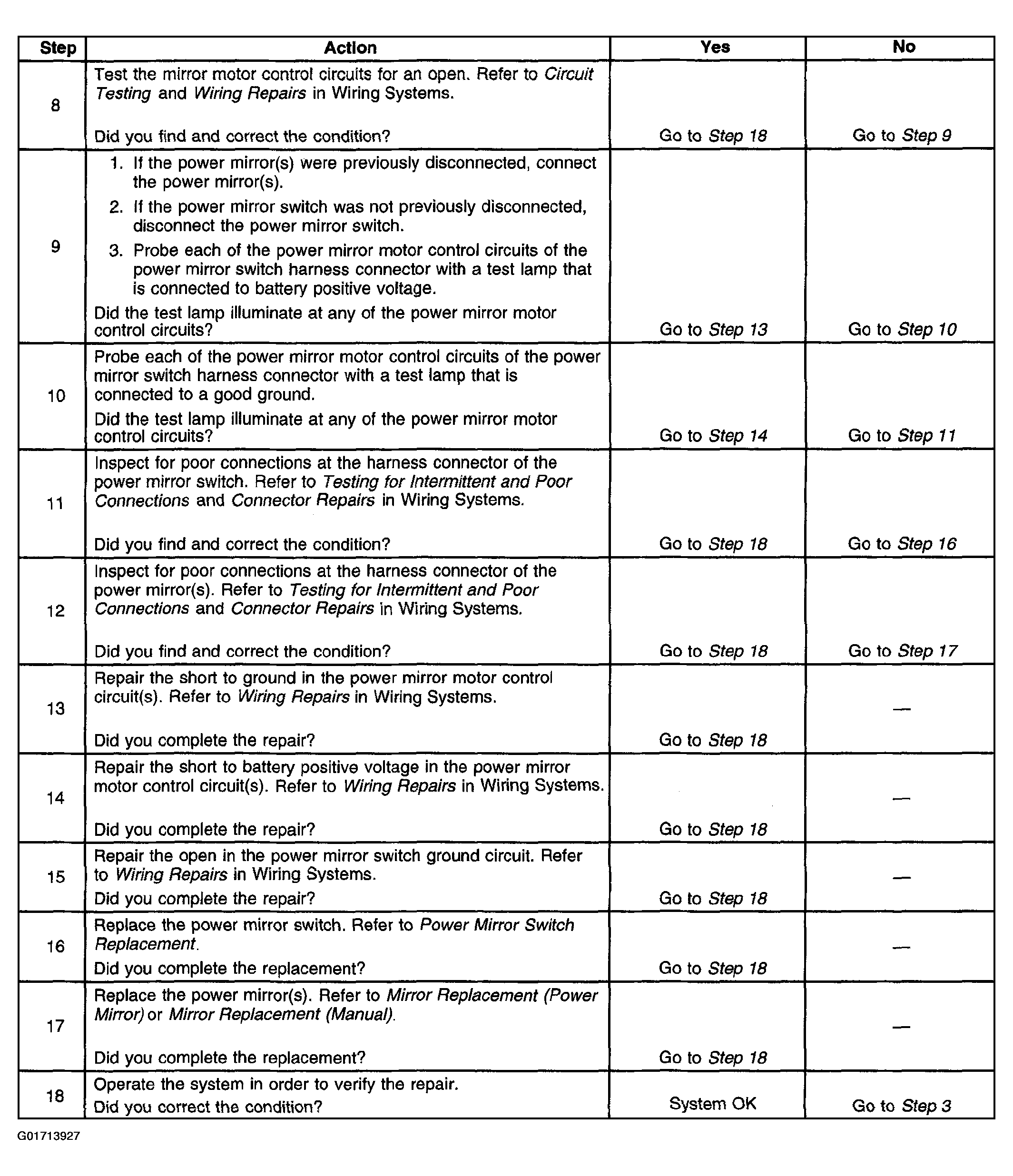

Fig 2: Power Mirrors Inoperative (Except Escalade) (Steps 8-18)
G01713927Courtesy of GENERAL MOTORS CORP.
