Power Door Locks - Lock Inoperative; Unlock Operates

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

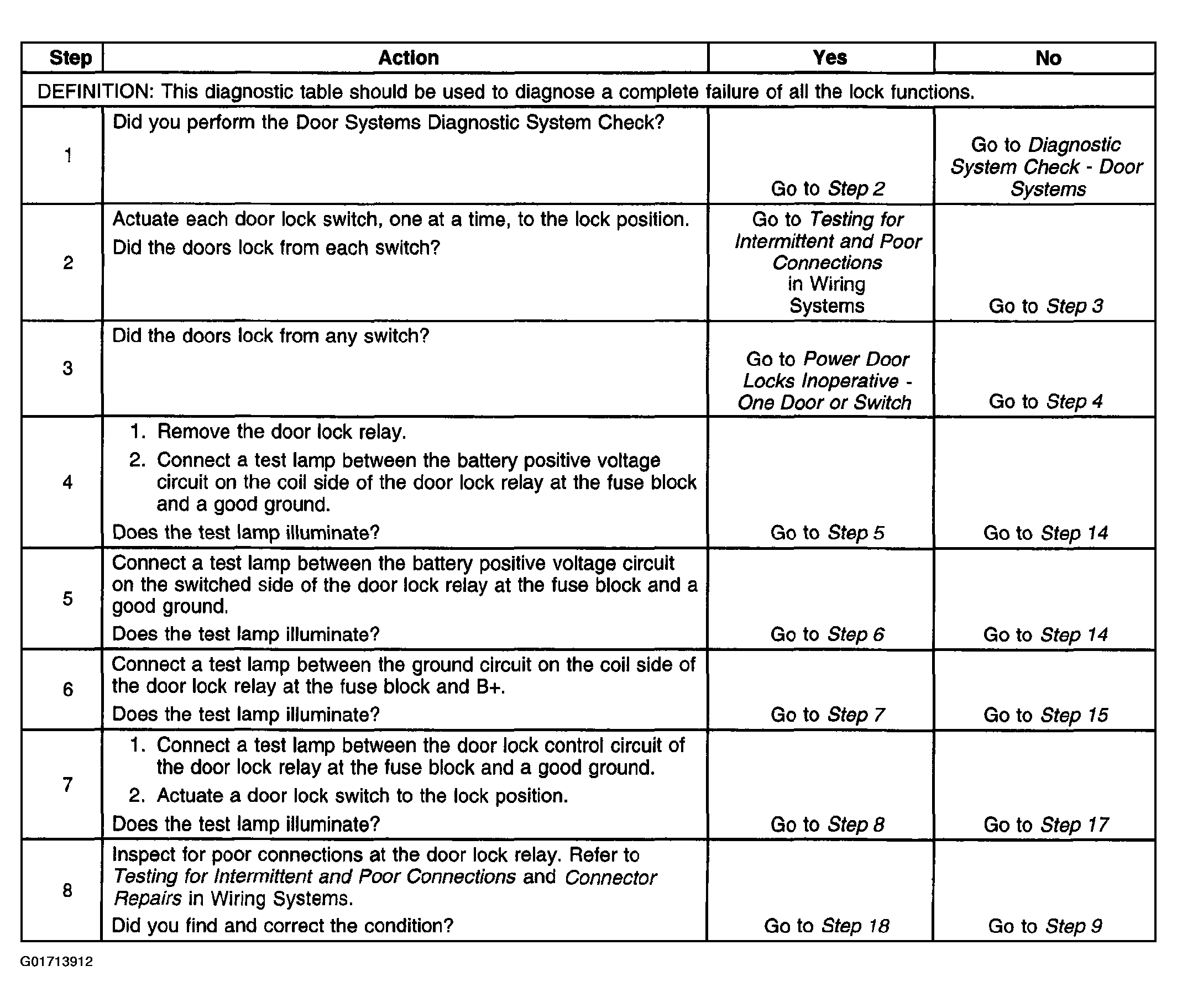

Fig 1: Power Door Locks - Lock Inoperative; Unlock Operates Diagnosis (Steps 1-8)
G01713912Courtesy of GENERAL MOTORS CORP.

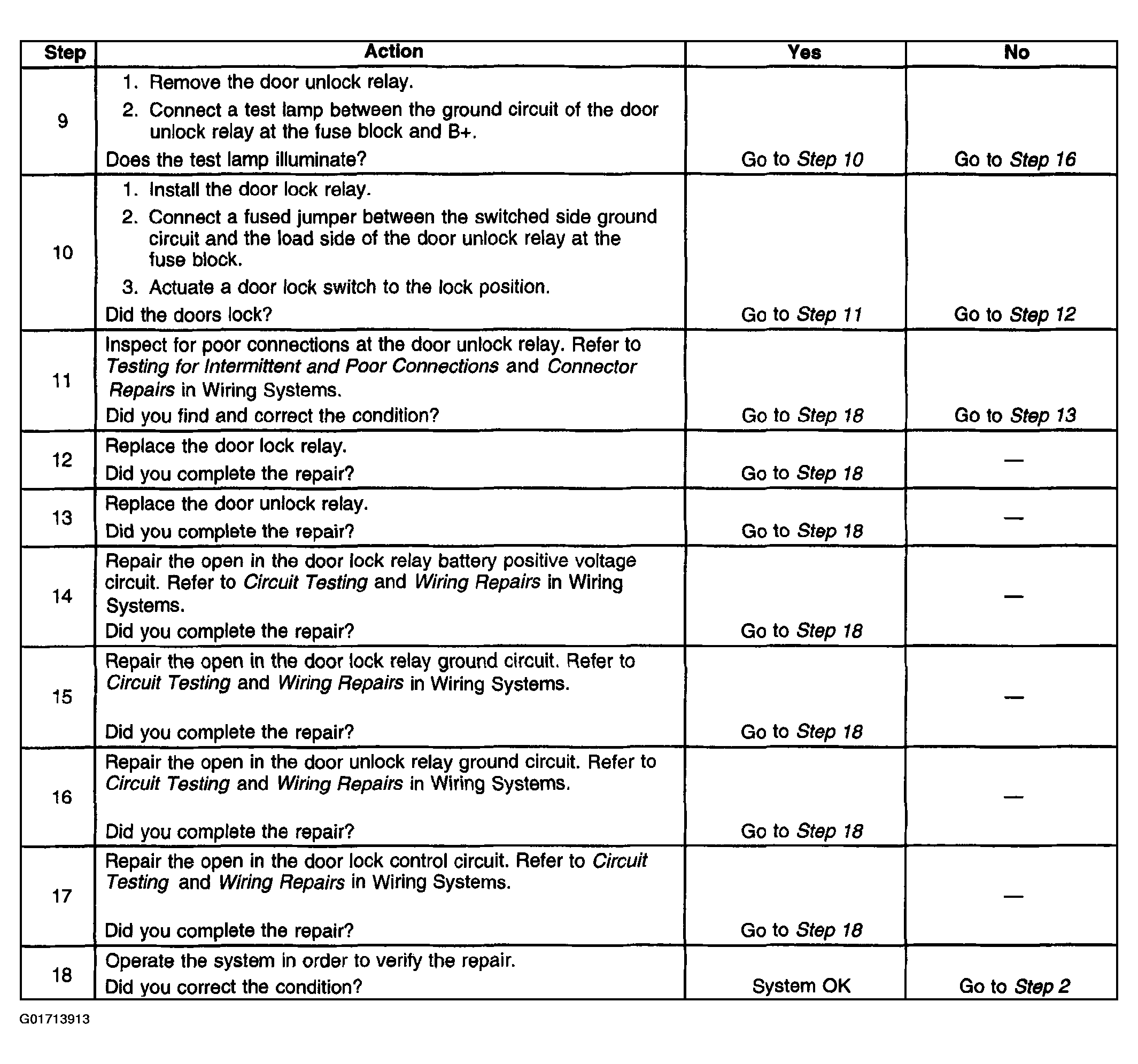

Fig 2: Power Door Locks - Lock Inoperative; Unlock Operates Diagnosis (Steps 9-18)
G01713913Courtesy of GENERAL MOTORS CORP.
