Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool in order to remove the wire cover, if equipped.
  2. Disconnect the electrical connector (1), if equipped.
  3. Using a TORX-head® screwdriver, loosen the set screw that holds the mirror base to the windshield button.
  4. Slide the mirror off of the support.

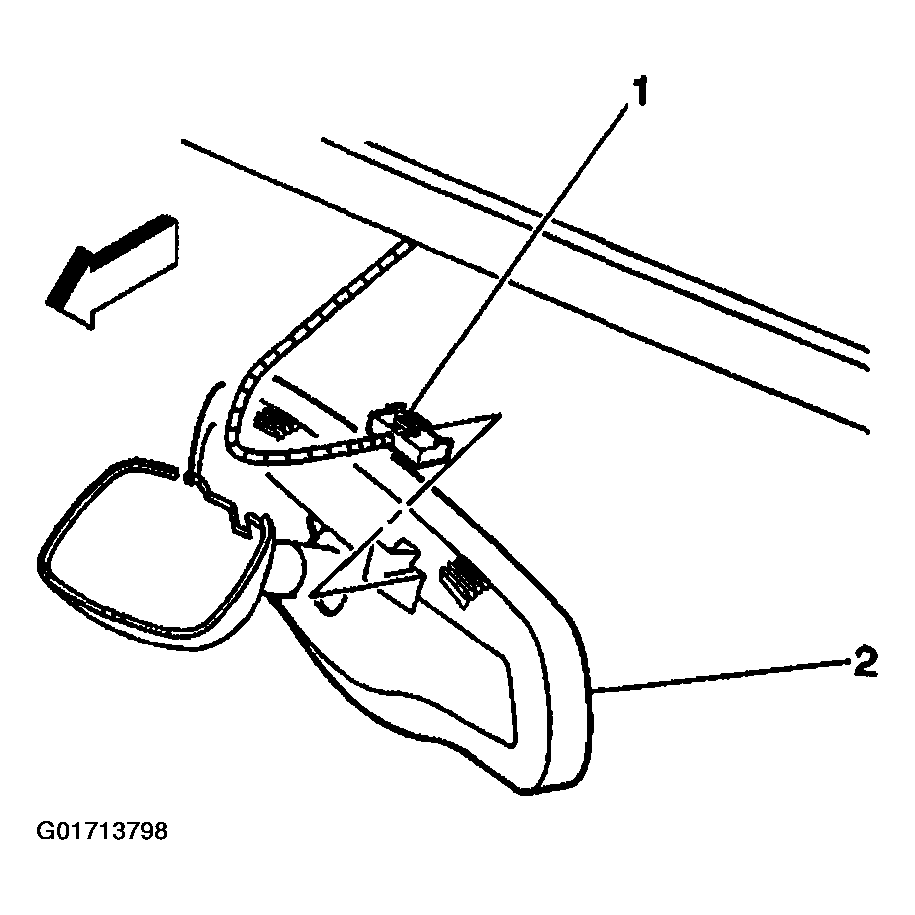

    Fig 1: Rearview Mirror Replacement
    G01713798Courtesy of GENERAL MOTORS CORP.
