Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push-pins from the wheel opening flare.
  2. Starting from one end of the flare remove the wheel opening flare from the front fender.
  3. Clean the area in order to remove any dirt or adhesive from the fender.

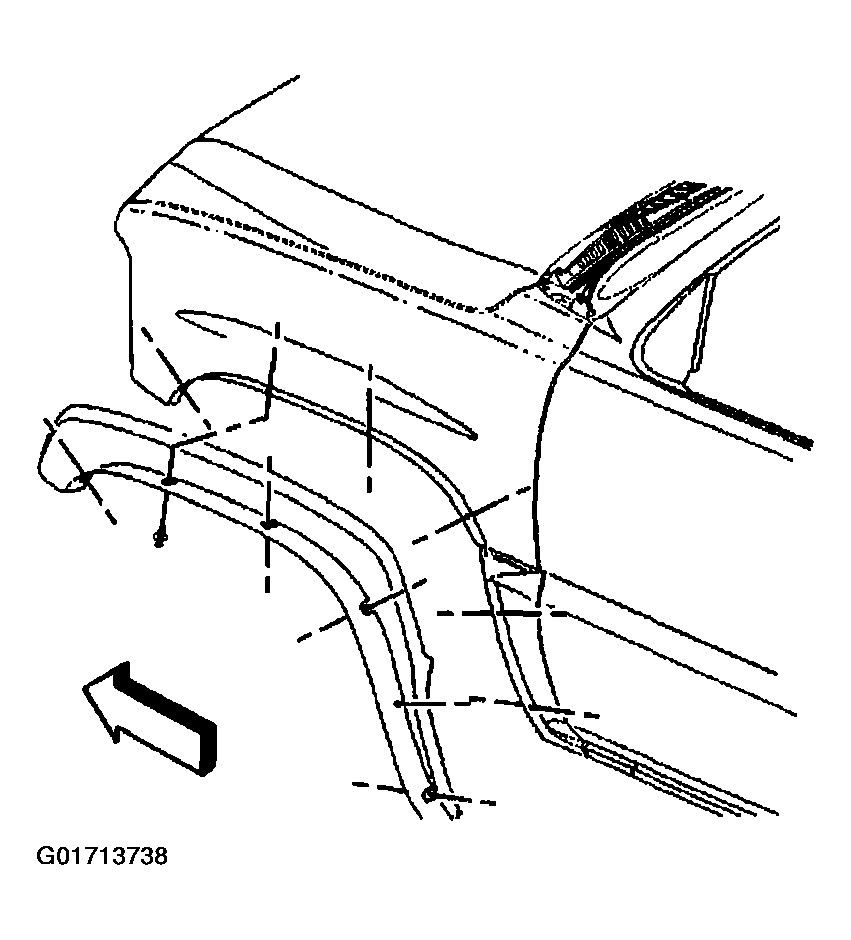

    Fig 1: Wheel Opening Flare
    G01713738Courtesy of GENERAL MOTORS CORP.
