Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Important: Be careful not to scratch or chip the paint.

Heat the body side molding using a heat gun J 25070. Hold the heat gun approximately 152 mm (6 in) from the surface. Apply heat using a circular motion for about 30 seconds.

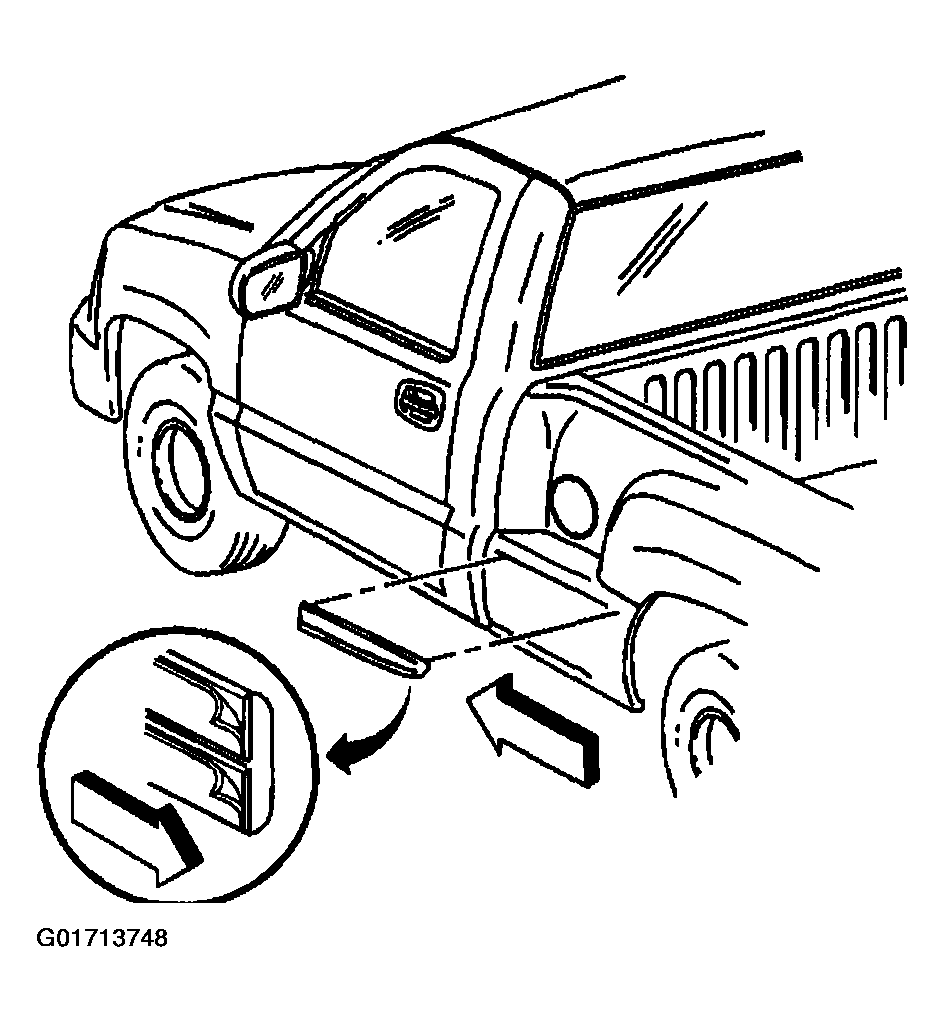

Fig 1: Pickup Box Body Side Molding (Extended Cab)
Courtesy of GENERAL MOTORS CORP.
Starting from one end of the molding, peel off the body side molding from the panel surface using a flat-bladed tool.
Remove all adhesive form the body panel using a 3M™ scotch brite molding adhesive remover disk P/N 07501 or equivalent.
