Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

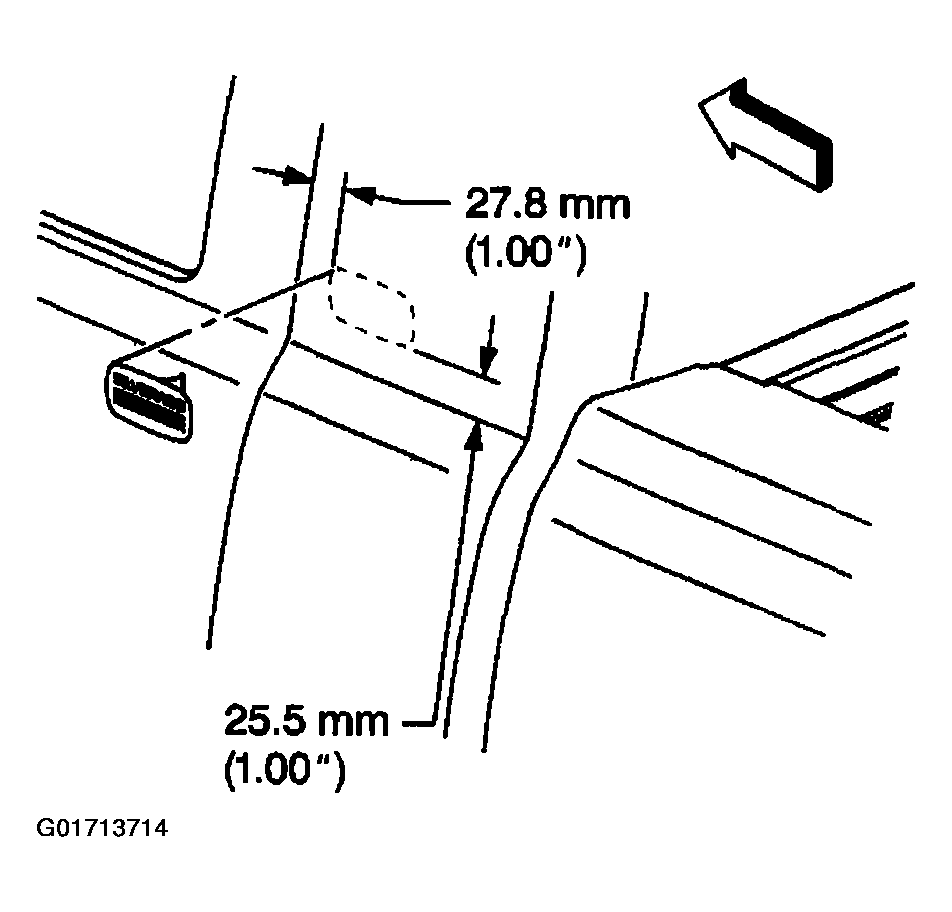

  1. If the location of the emblem/nameplate has not been marked apply tape, using the dimensions in the graphic.
    2. Fig 1: Measuring Emblem/Nameplate Position
    G01713714Courtesy of GENERAL MOTORS CORP.
  2. Warm the pickup cab surface with a heat gun J 25070  152 mm (6.0 in) from the surface to a minimum of 21°C (70°F).

    Important:  Do not touch the adhesive backing of the emblem/nameplate.

  3. Remove the backing from the front end of the emblem/nameplate.
  4. Press the emblem/nameplate to the pickup cab panel surface while continuing to remove the backing.
  5. Hand roll the emblem/nameplate to the pickup cab panel to ensure proper adhesion.
  6. Inspect the emblem/nameplate for bonding.
  7. Remove the tape from the area around the pickup cab emblem.
