Test Description

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table:

  1. 3)  - Tests for a magnetic field near the ignition lock cylinder.

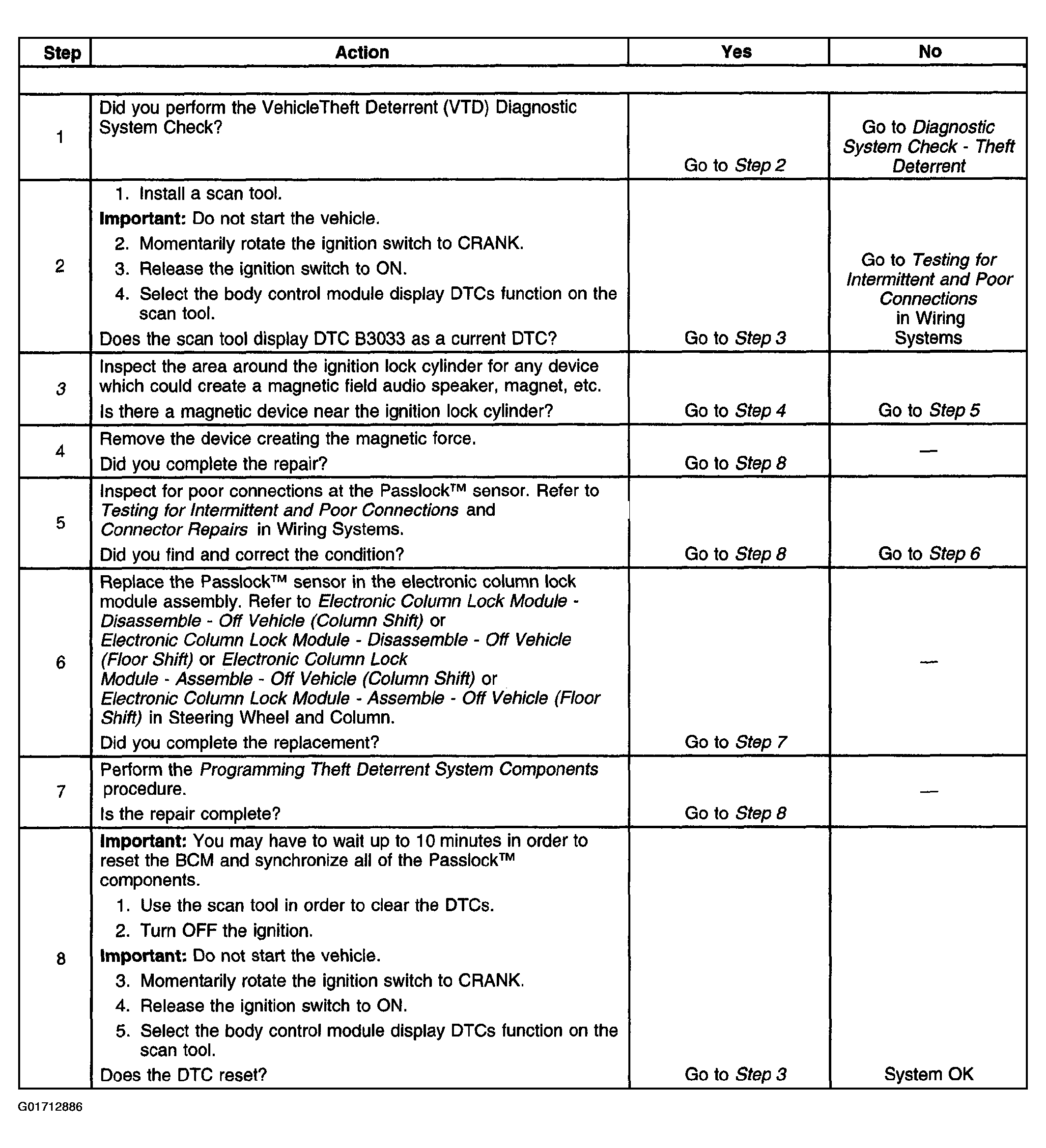

Fig 1: DTC B3033 Diagnosis
G01712886Courtesy of GENERAL MOTORS CORP.
