Fuel Level Specifications

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The values in the table are approximate values based on information obtained from properly operating vehicles. Actual results may vary slightly.

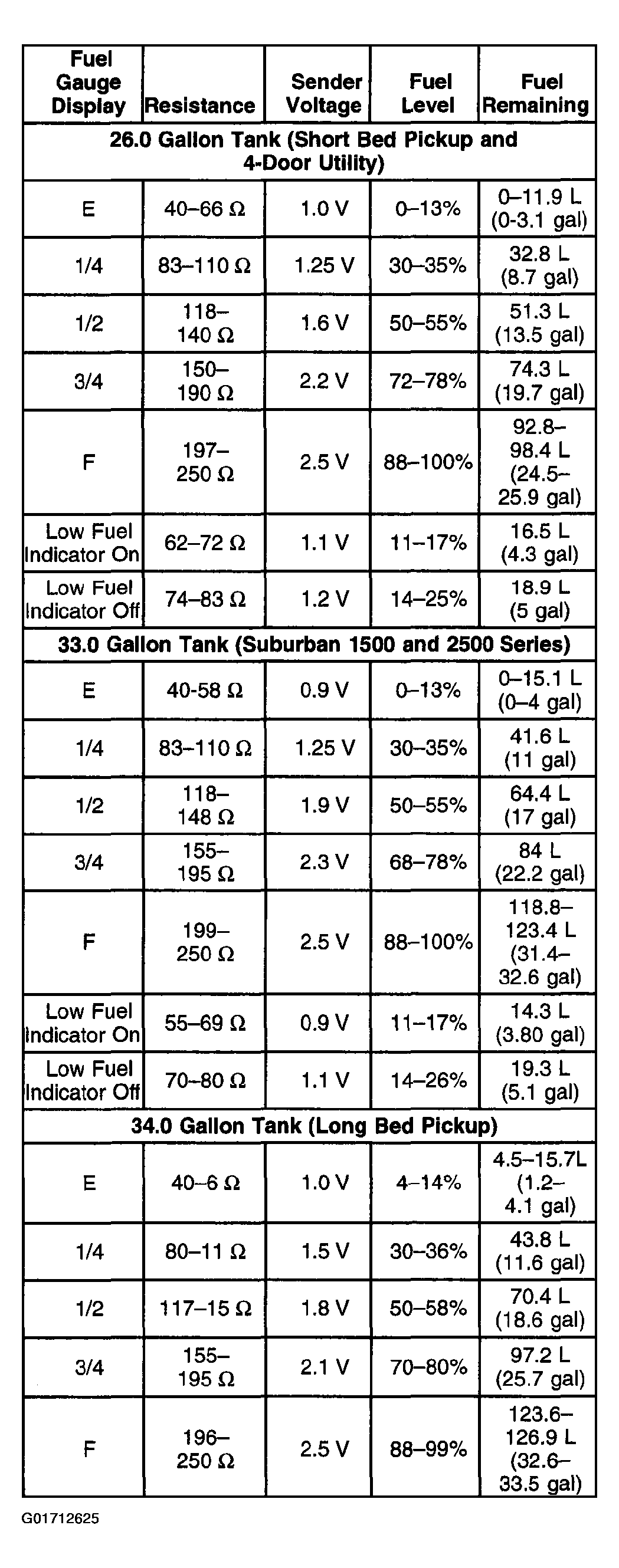

Fig 1: Fuel Level Gauge Specifications (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

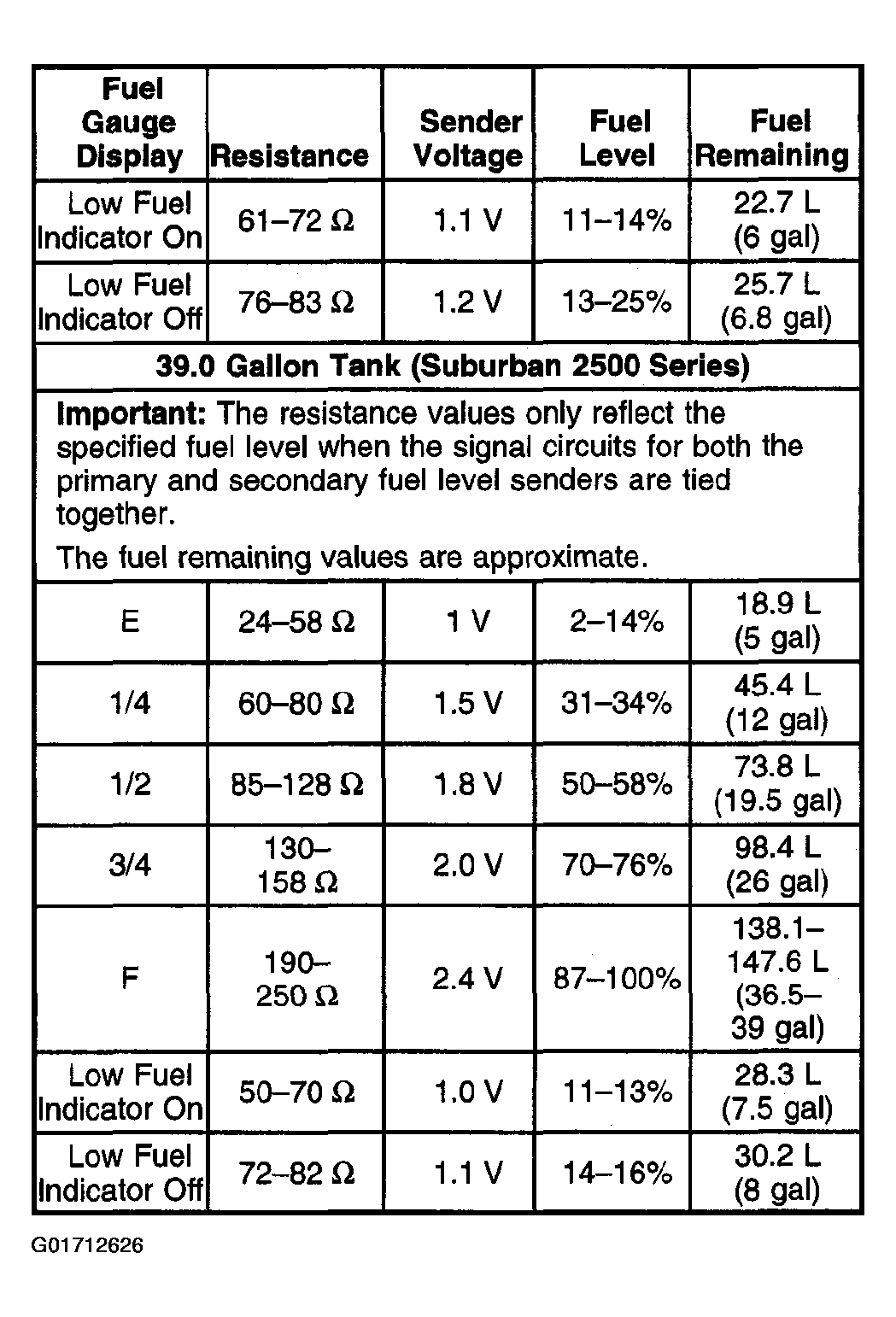

Fig 2: Fuel Level Gauge Specifications (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
