Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor console bezel. Refer to Instrument Panel (I/P) Extension Replacement (Luxury) .
  2. Remove the storage bin. Refer to Console Storage Bin Replacement (Non-Luxury) , Console Storage Bin Replacement (Luxury) , or Console Storage Bin Replacement (Pro)  .

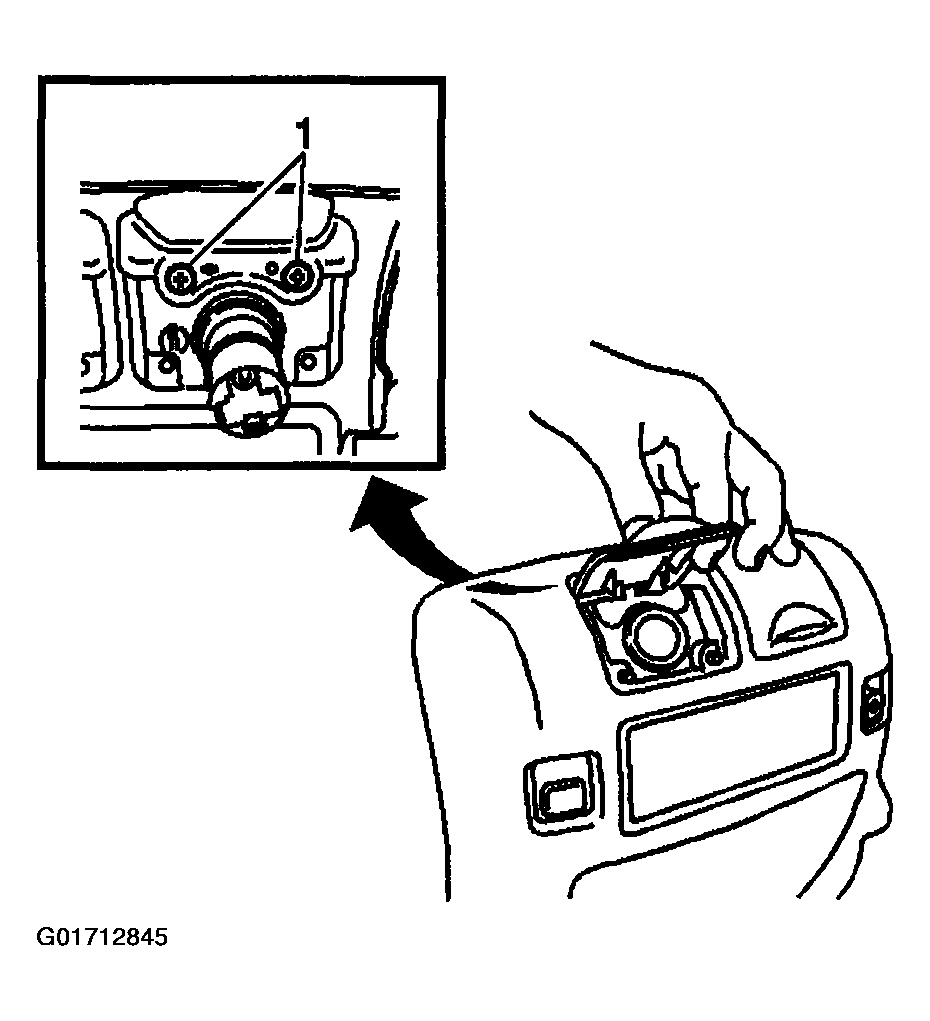

    Fig 1: Power Accessory Outlet Cover Replacement
    G01712845Courtesy of GENERAL MOTORS CORP.
  3. Remove the floor console end panel. Refer to Center Console End Panel Replacement .

    Important:  Do not disconnect the electrical connectors.

  4. Separate the end panel from the console in order to gain access to the retaining screws.
  5. Remove the 2 screws (1) retaining the power outlet cover to the console end panel.
  6. Remove the cover from the end panel.
