Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP cluster trim plate bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster .

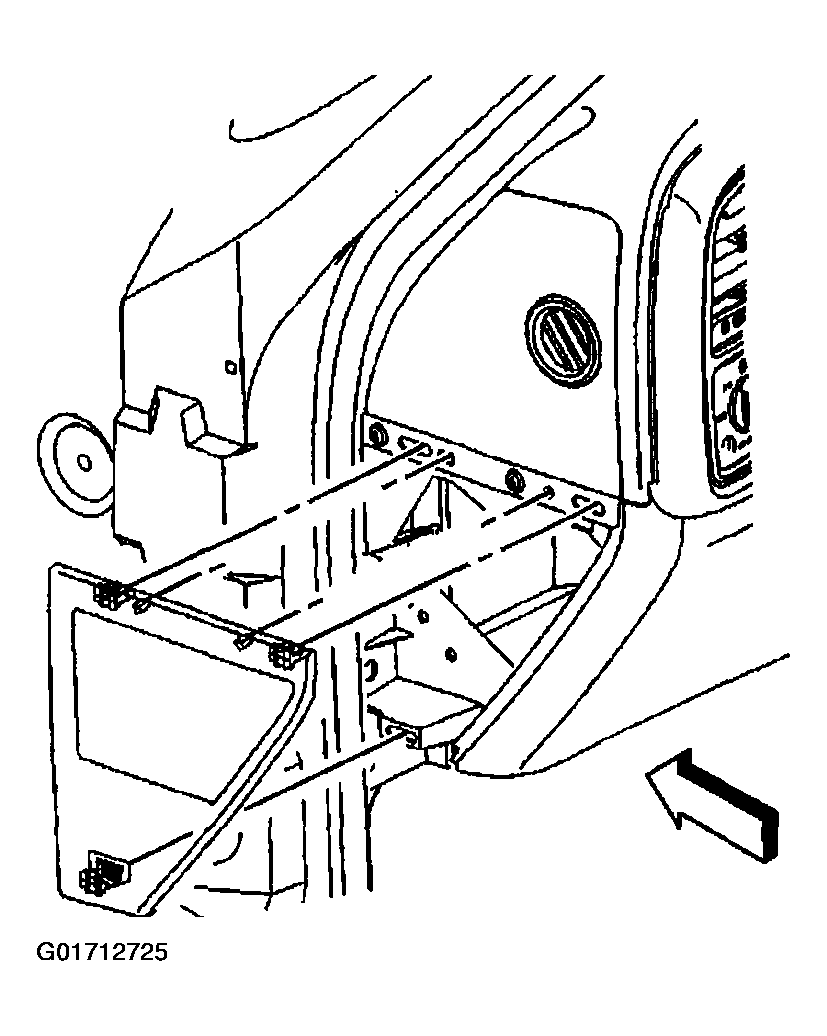

    Fig 1: IP Cluster Trim Plate Bezel
    G01712725Courtesy of GENERAL MOTORS CORP.
  2. Remove the knee bolster screws.
  3. Unsnap the top of the knee bolster from the IP assembly.

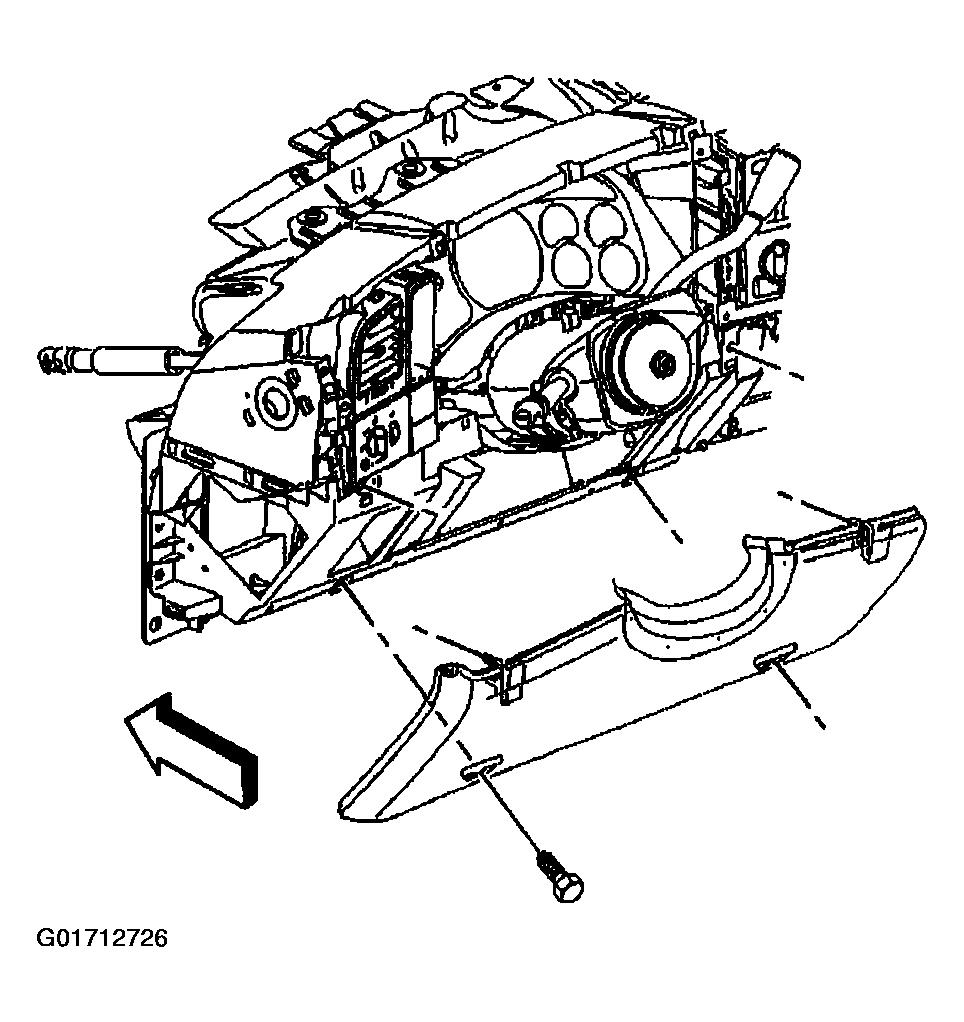

    Fig 2: Knee Bolster
    G01712726Courtesy of GENERAL MOTORS CORP.
