Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP cluster trim plate bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster .
    2. Fig 1: IP Cluster Trim Plate Bezel
    G01712728Courtesy of GENERAL MOTORS CORP.
  2. Move the IP extension rearwards. Refer to Instrument Panel (I/P) Extension Replacement (Luxury) , Instrument Panel (I/P) Extension Replacement (Non-Luxury)  or Instrument Panel (I/P) Extension Replacement (Pro)  .
  3. Remove the knee bolster screws.
  4. Unsnap the top of the knee bolster from the IP assembly

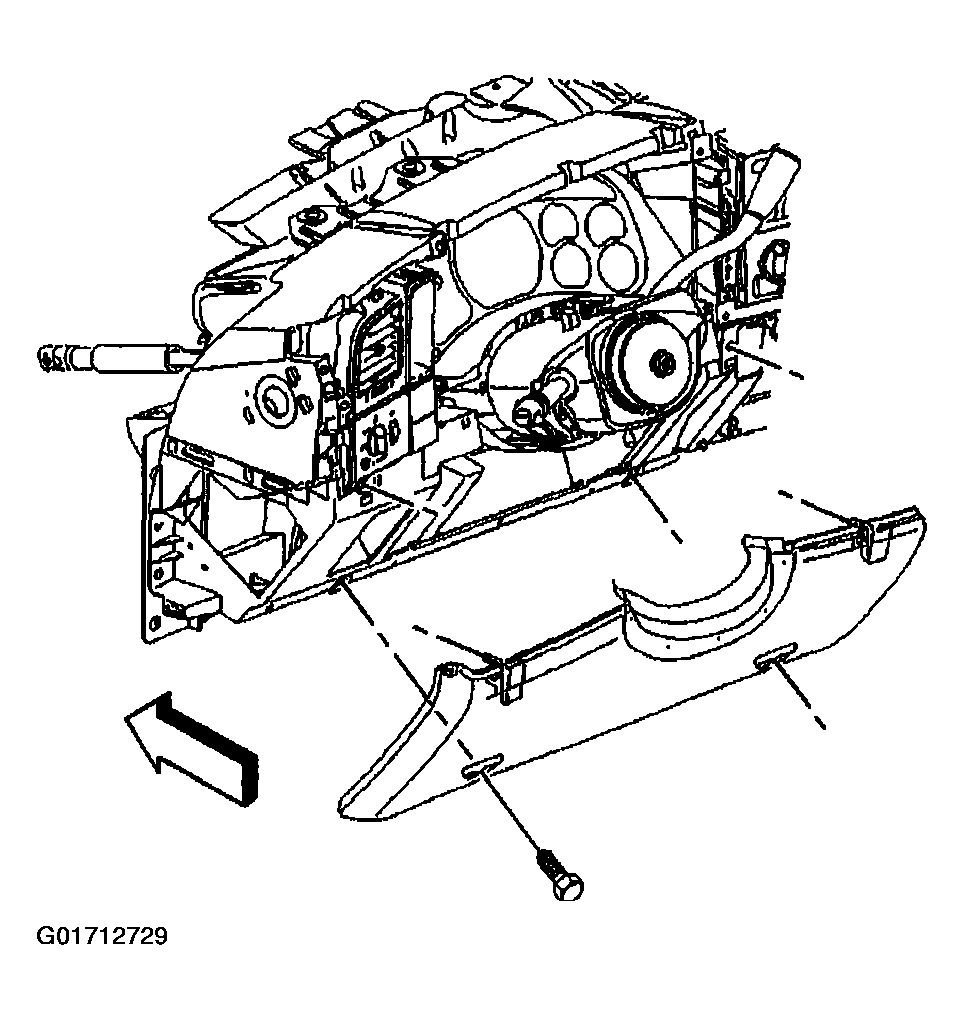

    Fig 2: Knee Bolster
    G01712729Courtesy of GENERAL MOTORS CORP.
