Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the retaining bolts.
  2. Remove the insulator (1) from the instrument panel by pulling downwards.

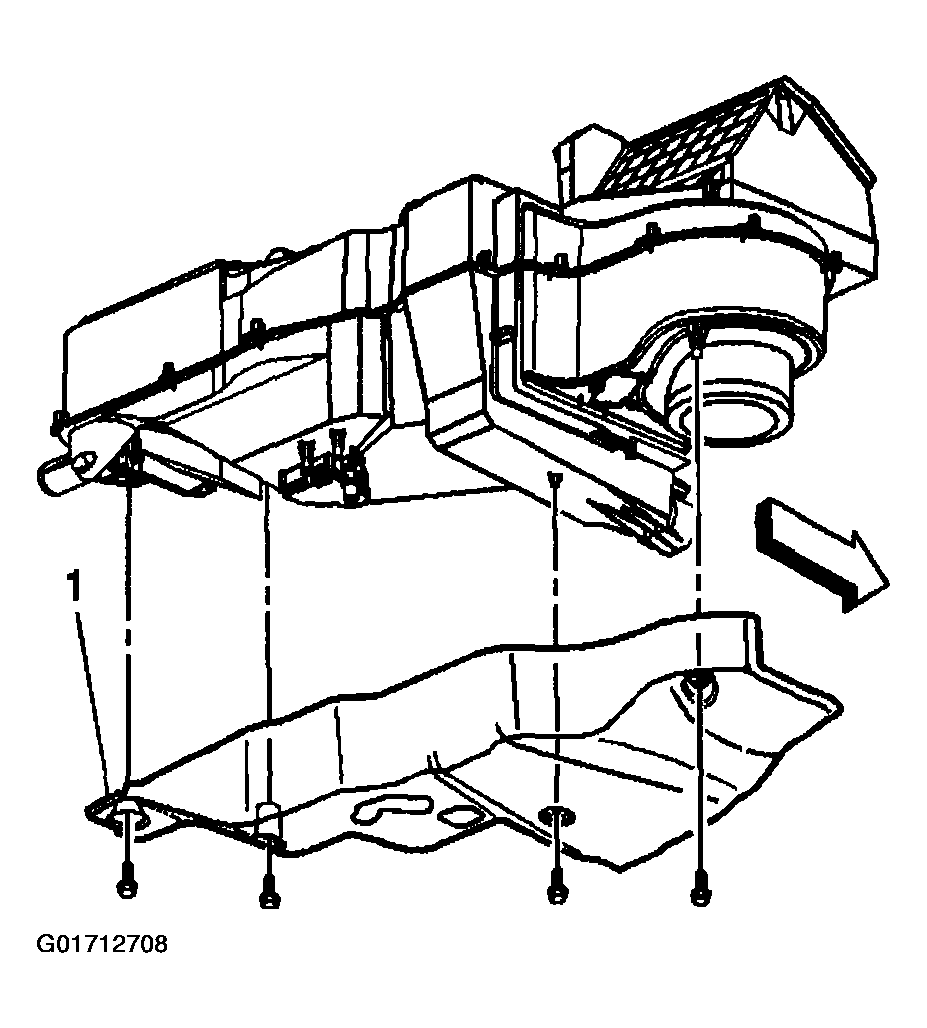

    Fig 1: I/P Insulator Replacement
    G01712708Courtesy of GENERAL MOTORS CORP.
