Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) cluster trim plate bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster .
  2. Remove the screws that retain the I/P cluster to the I/P assembly.

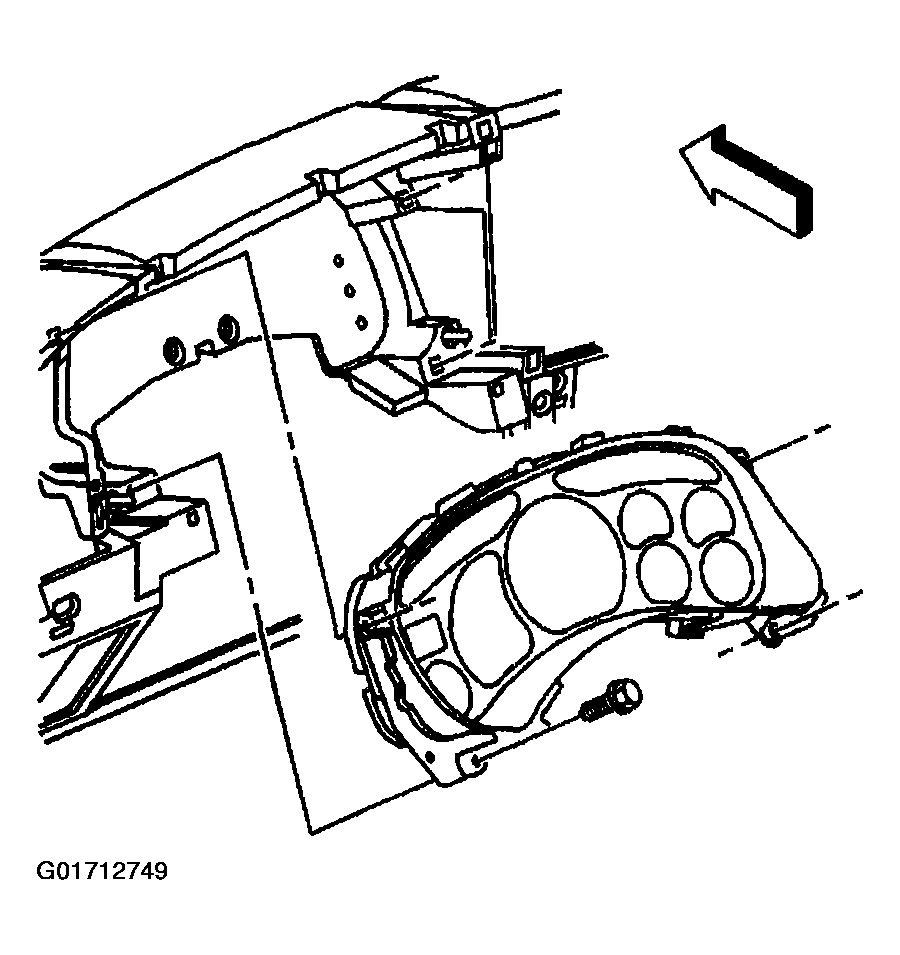

    Fig 1: Instrument Panel Cluster (IPC)
    G01712749Courtesy of GENERAL MOTORS CORP.
  3. Remove the I/P cluster from the vehicle by tilting the bottom of the cluster outward.
  4. Disconnect the I/P cluster harness from the I/P cluster.
