Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel (I/P) cluster trim bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster .
Remove the following components, depending on how equipped:
- The I/P cupholder cover, shown
- The I/P cupholder. Refer to Cupholder Replacement (Except Pro) or Cupholder Replacement (Pro) .
- The floor console extension. Refer to Console Replacement (Luxury Console) , Console Replacement (Base Console) or Console Replacement (Pro) .
Remove the bolts connecting the lower trim panel to the I/P assembly.

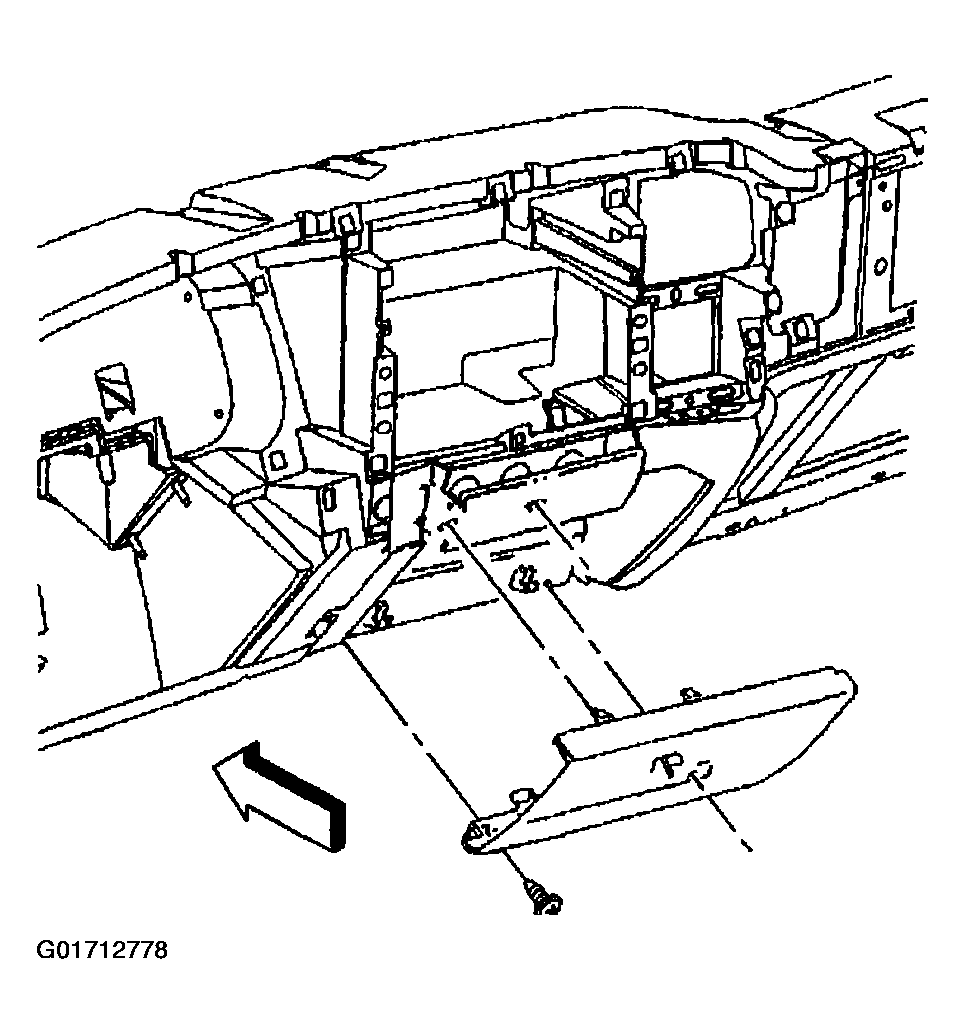

Fig 1: Floor Console Extension
Courtesy of GENERAL MOTORS CORP.

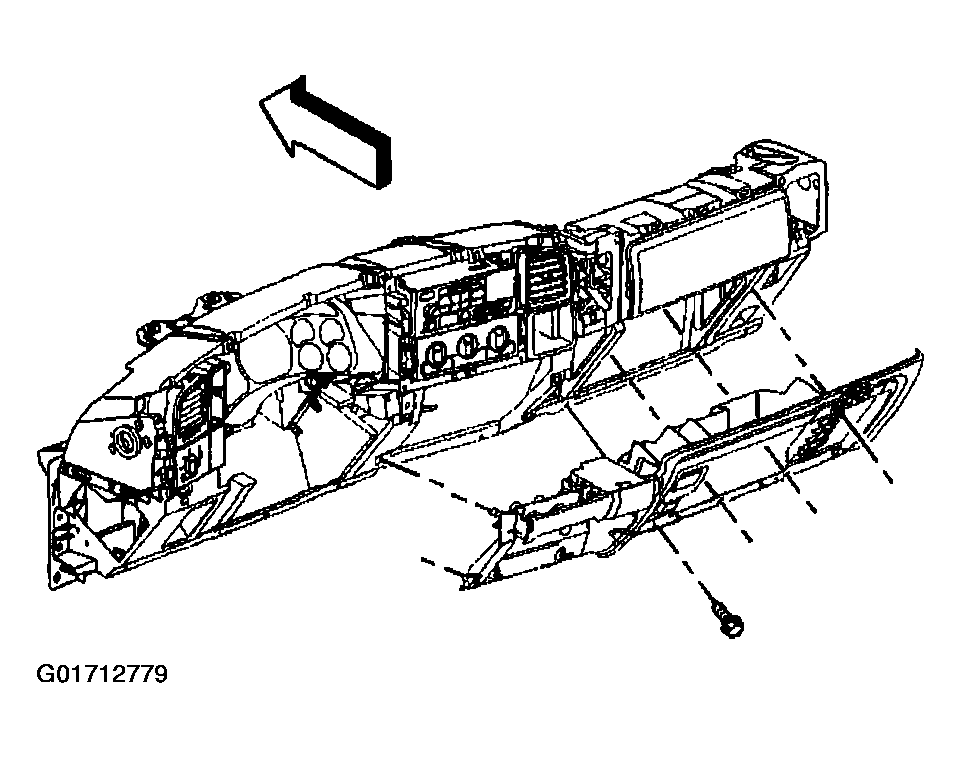

Fig 2: Lower Trim Panel To I/P Assembly
Courtesy of GENERAL MOTORS CORP.
Disconnect the following electrical connectors:
- The power outlet ports (1,2)
- The ashtray lamp (3)
- The I/P compartment lamp, if equipped

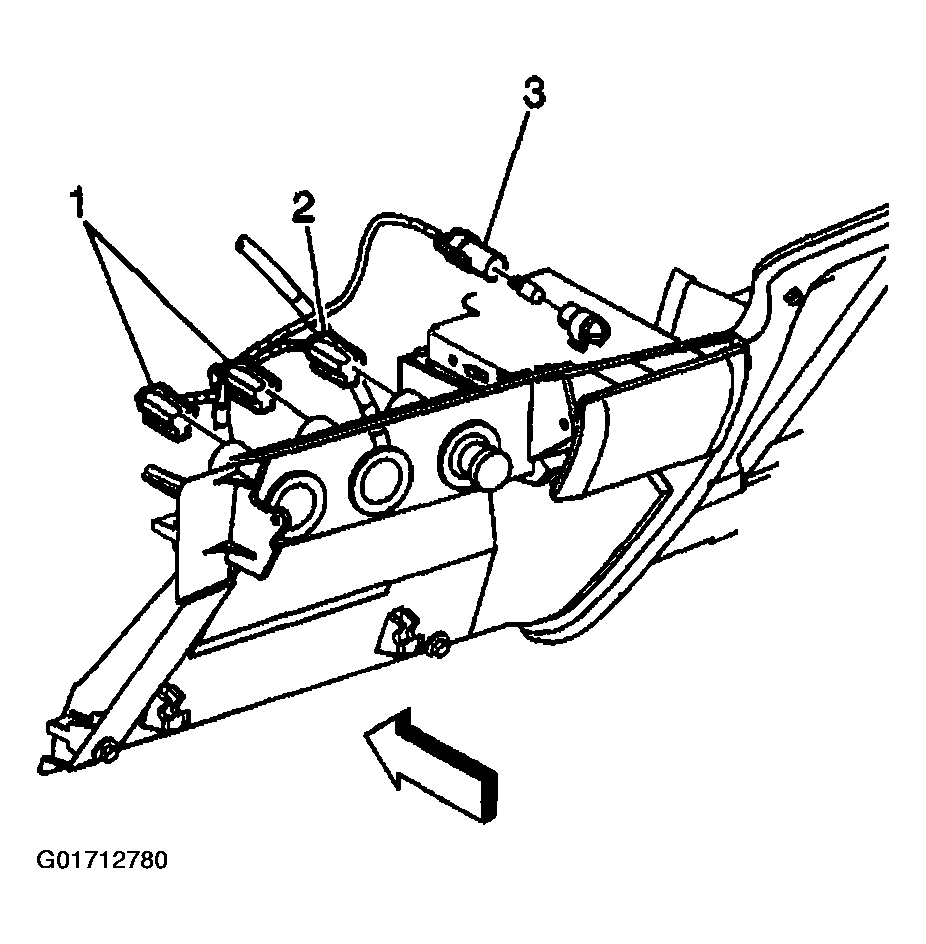

Fig 3: Power Outlet Ports & Ashtray Lamp

Courtesy of GENERAL MOTORS CORP.

Remove the lower trim panel from the I/P assembly.
