Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the SDM module. Refer to AIR BAG MODULES .
  2. Remove the door sill plate.
  3. Remove the instrument panel. Refer to Instrument Panel (I/P) Carrier Replacement .
  4. Remove the HVAC duct.
  5. Disconnect the electrical connectors.
  6. Disengage the harness mounting clips.
  7. Remove the harness from the vehicle.

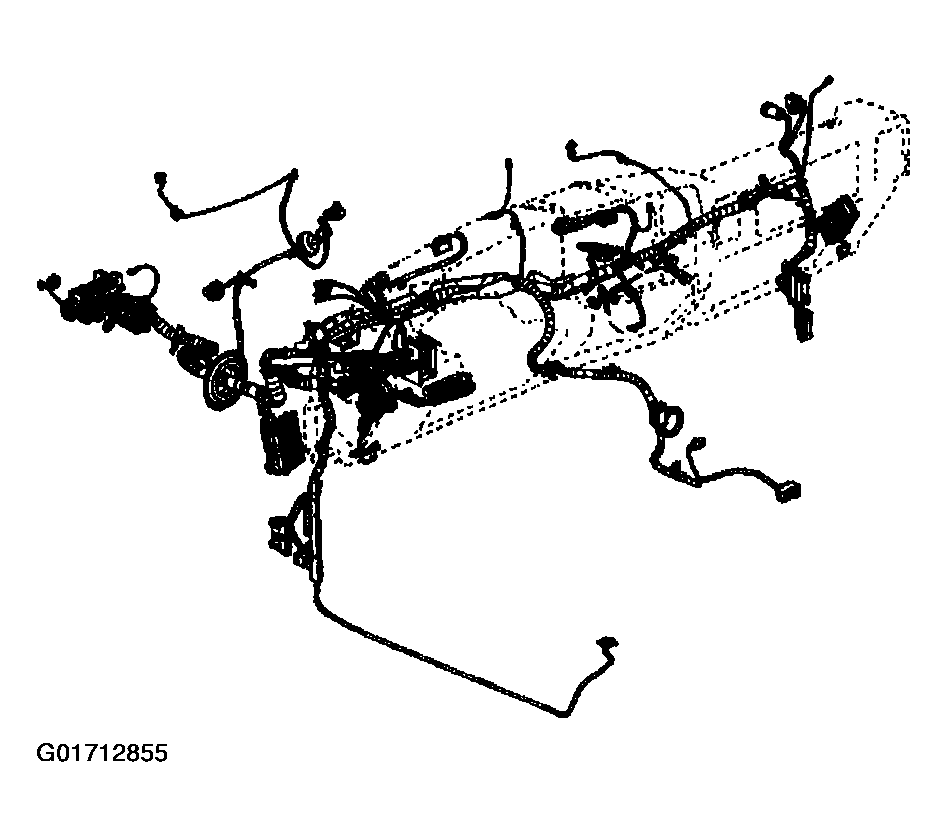

    Fig 1: Instrument Panel (I/P) Harness
    G01712855Courtesy of GENERAL MOTORS CORP.
