Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Important:  This procedure calls for the replacement of incandescent bulbs only. The light emitting diodes (LEDs) are not replaceable individually. If LED replacement is needed, send the cluster to an AC Delco Service Center. Refer to Instrument Panel Cluster (IPC) Replacement .

  1. Remove the instrument panel (IP) cluster. Refer to Instrument Panel Cluster (IPC) Replacement .
  2. Unclip the IP cluster rear cover plate by prying gently on the tabs with a screwdriver.

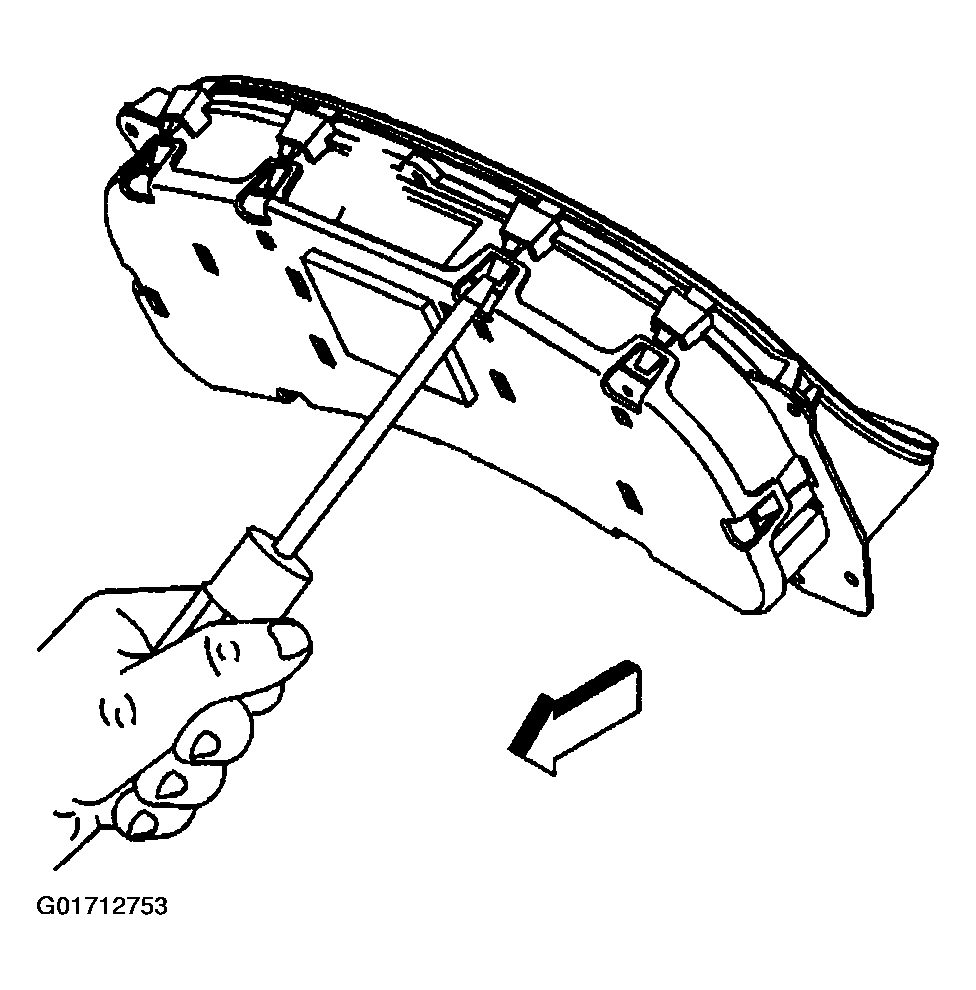

    Fig 1: Unclipping IP Cluster Rear Cover Plate
    G01712753Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear cover plate from the IP cluster.

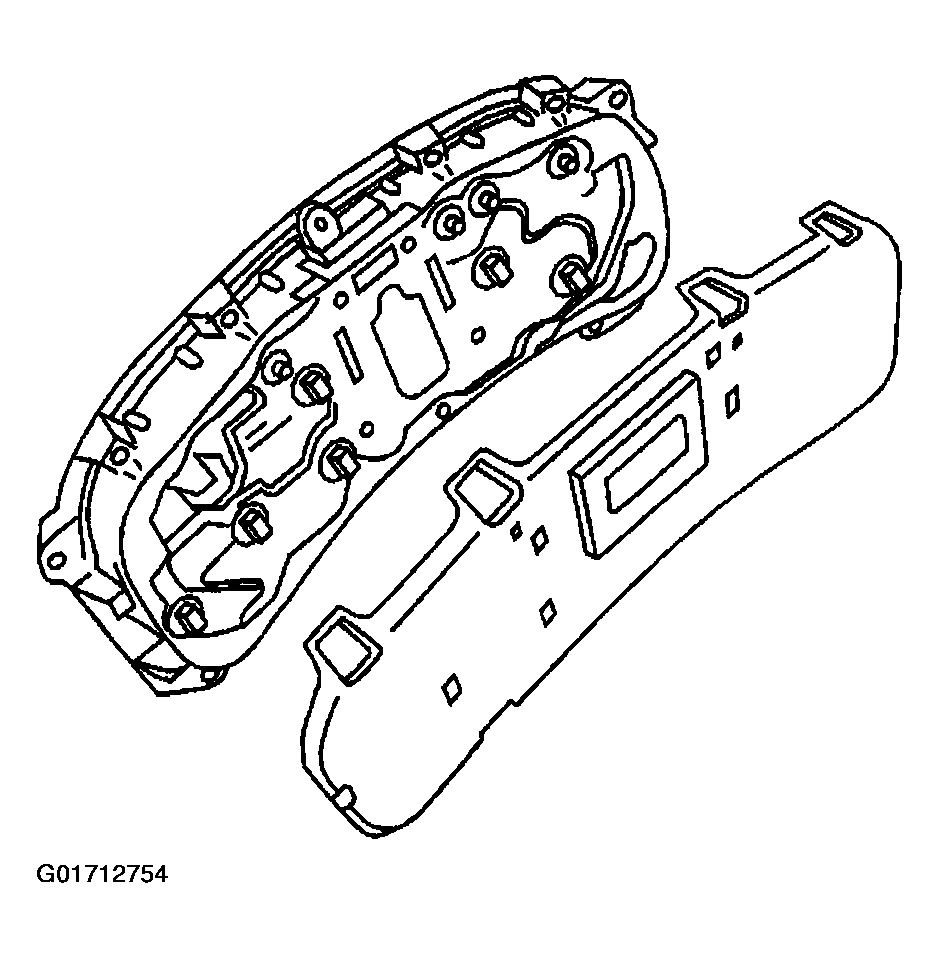

    Fig 2: Removing IP Cluster Rear Cover Plate
    G01712754Courtesy of GENERAL MOTORS CORP.
  4. Remove the bulb and base assembly by turning the bulb 1/2 turn counter clockwise and pulling outward.
  5. Remove the bulb from the base by pulling outward.

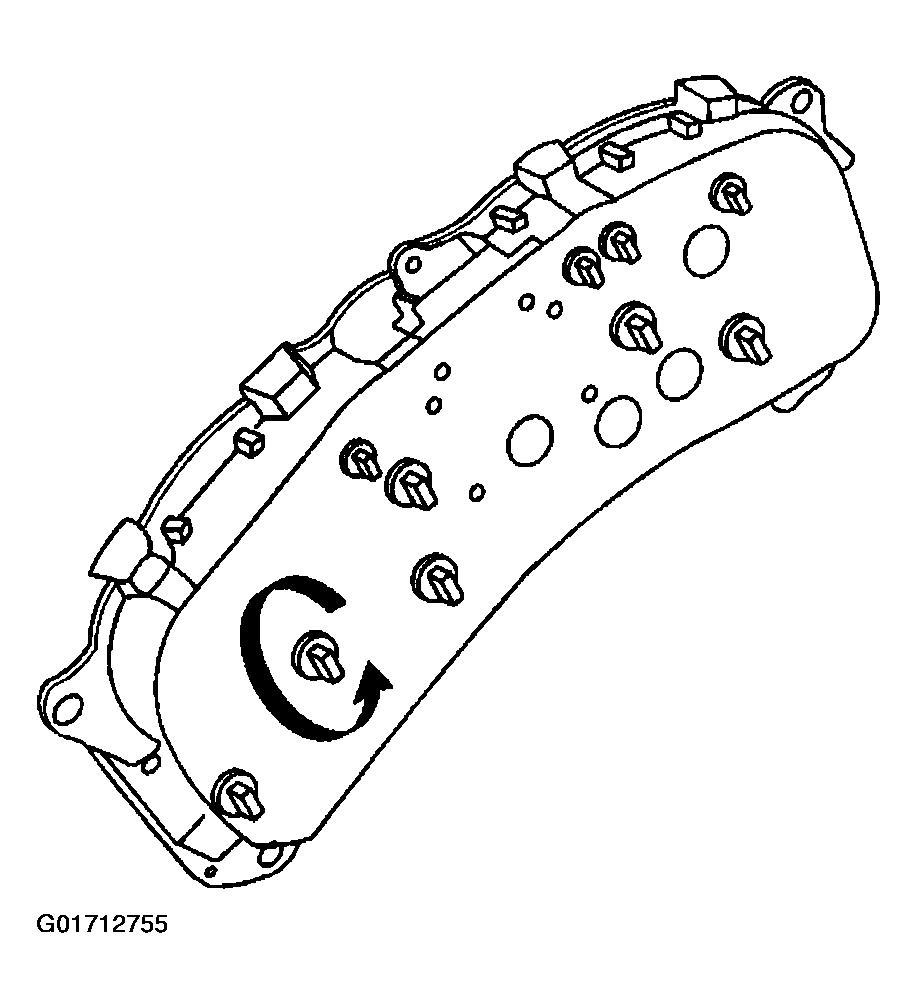

    Fig 3: Removing Bulb From IP Cluster
    G01712755Courtesy of GENERAL MOTORS CORP.
