Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor console upper bezel by firmly grabbing and pulling outwards.

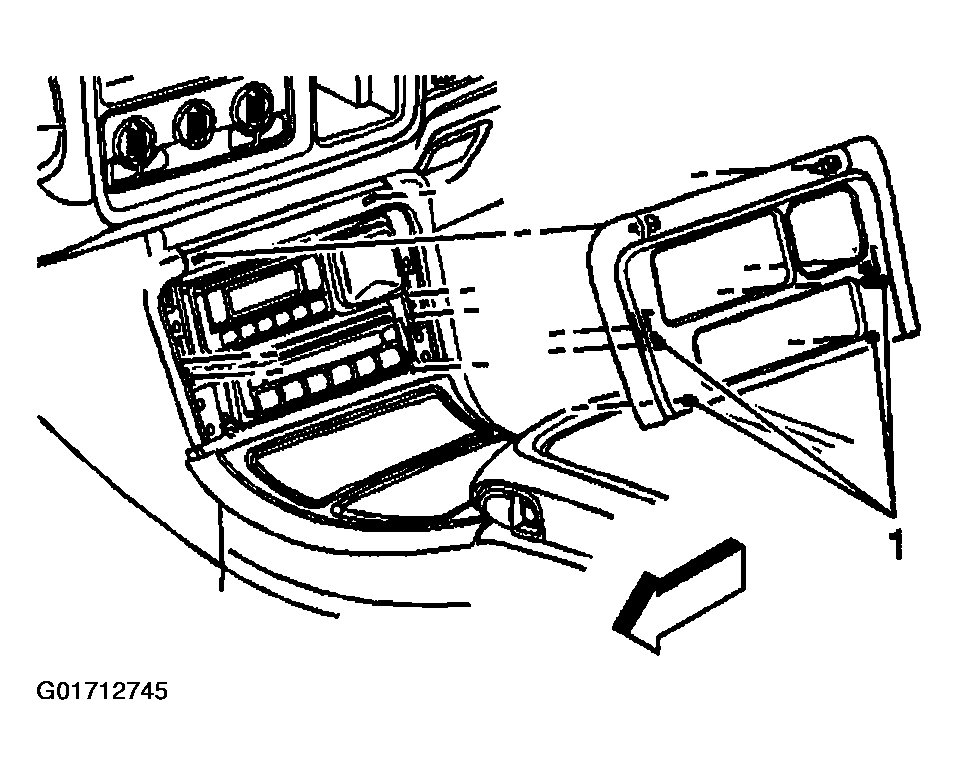

    Fig 1: Floor Console Upper Bezel
    G01712745Courtesy of GENERAL MOTORS CORP.
  2. Insert a flat bladed tool at the edge (1) of the DIC in order to pry out the DIC.
  3. Disconnect the electrical Connector from the DIC.
  4. Remove the DIC from the console.

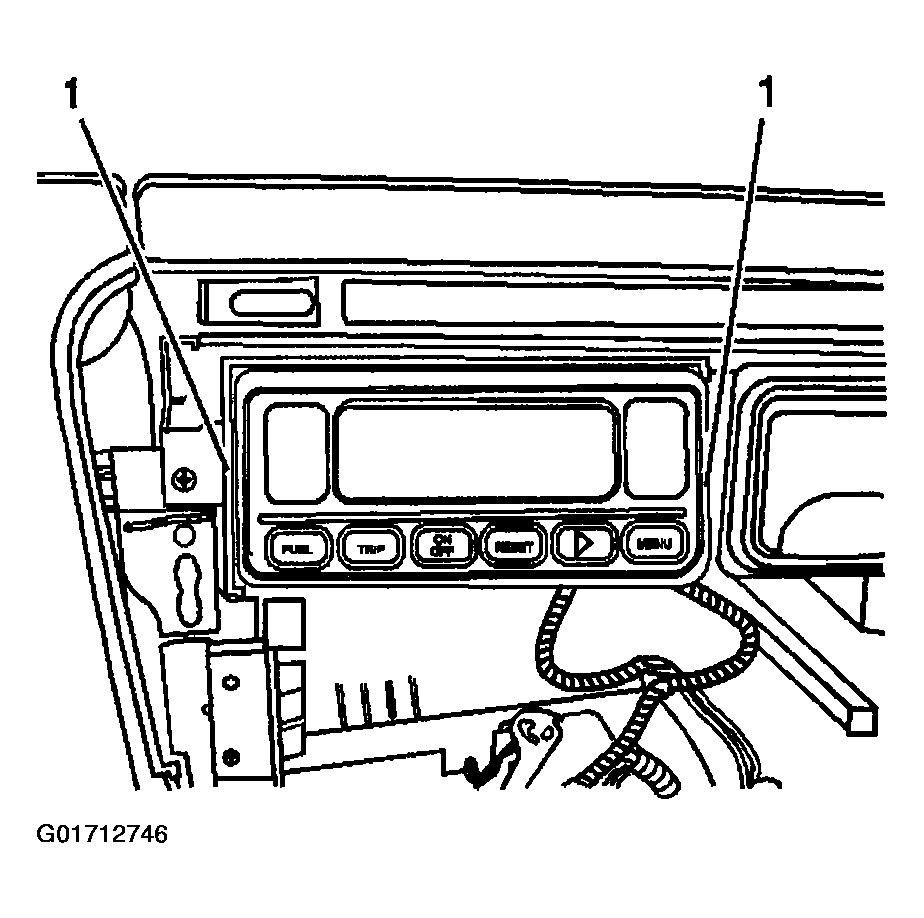

    Fig 2: Driver Information Center Replacement
    G01712746Courtesy of GENERAL MOTORS CORP.
