Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console storage bin, if equipped. Refer to Console Storage Bin Replacement (Non-Luxury) , Console Storage Bin Replacement (Luxury) , or Console Storage Bin Replacement (Pro)  .
  2. Remove the hinge cover, if equipped.
  3. Remove the console door screws (1).
  4. Remove the console door assembly.

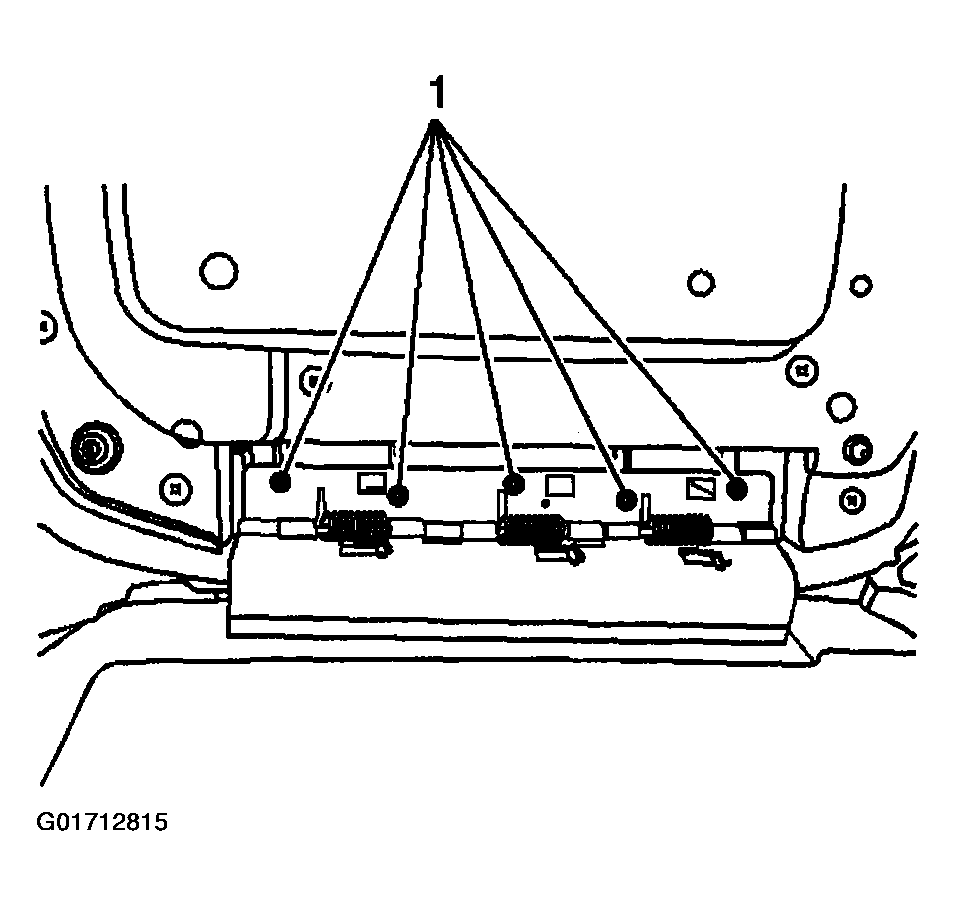

    Fig 1: Console Door Screws
    G01712815Courtesy of GENERAL MOTORS CORP.
