Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a flat bladed tool between the cupholder and console in order to pry the cupholder assembly out.
  2. Lift the cupholder assembly slightly in order to disconnect the electrical connectors.
  3. Remove the cupholder from the console.
  4. Remove the switches from the cupholder assembly. Refer to Cupholder Replacement (Pro) .
  5. Remove the screws retaining the beverage-mate to the cupholder.
  6. Remove the beverage-mate.

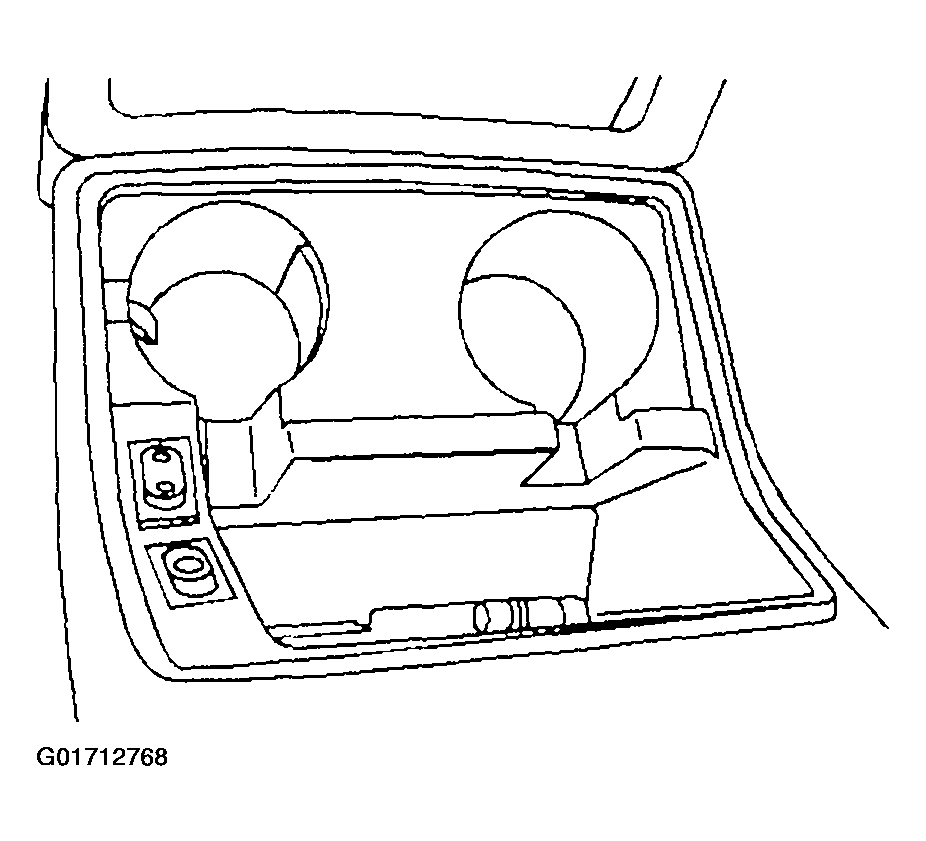

    Fig 1: Cupholder Beverage-Mate
    G01712768Courtesy of GENERAL MOTORS CORP.
