Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the beverage-mate to the cupholder.
  2. Install the retaining screws. Tighten the retaining screws to 1.6 N.m (14 lb in).
  3. Install the switches to the cupholder assembly. Refer to Switch Replacement - Hot & Cold Cupholder .
  4. Connect the wire connectors to the switches.
  5. Install the cupholder assembly to the console by pressing downwards until fully seated.

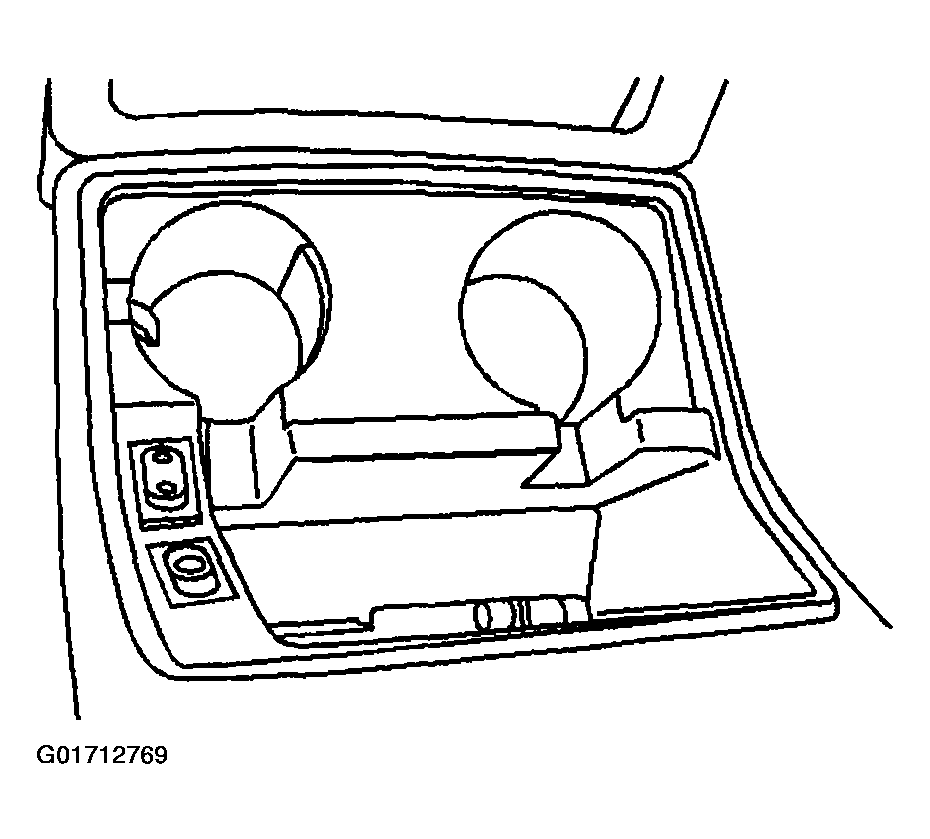

    Fig 1: Cupholder Assembly
    G01712769Courtesy of GENERAL MOTORS CORP.
