Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

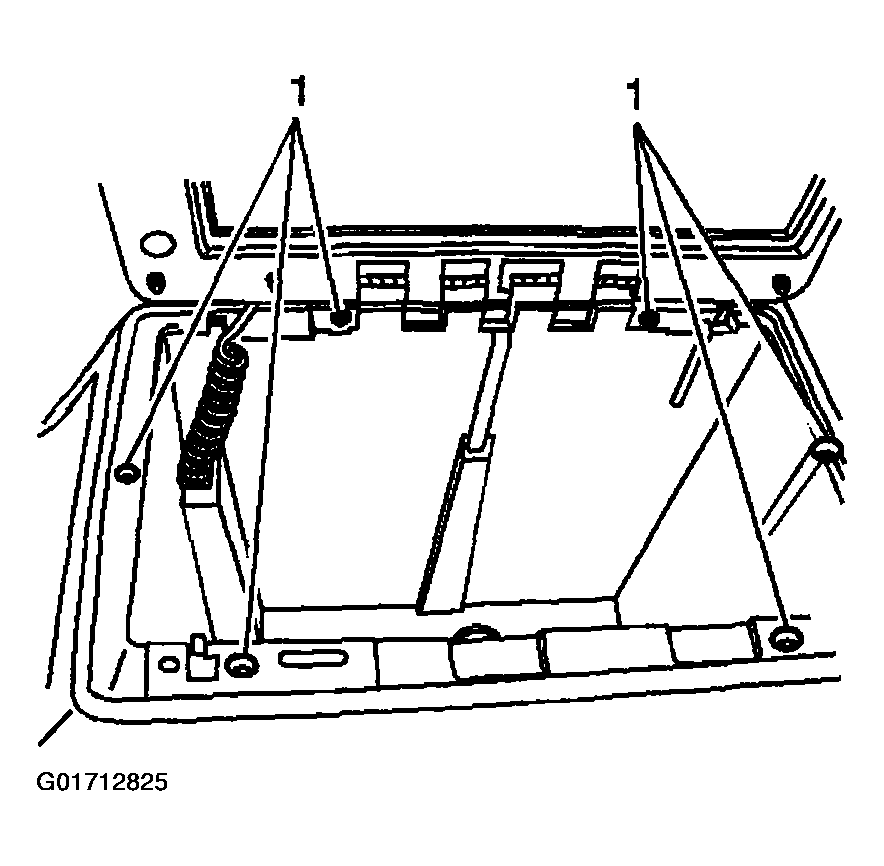

Open the console lid and remove the 6 retaining screws (1).

Fig 1: Removing Console Lid
Courtesy of GENERAL MOTORS CORP.

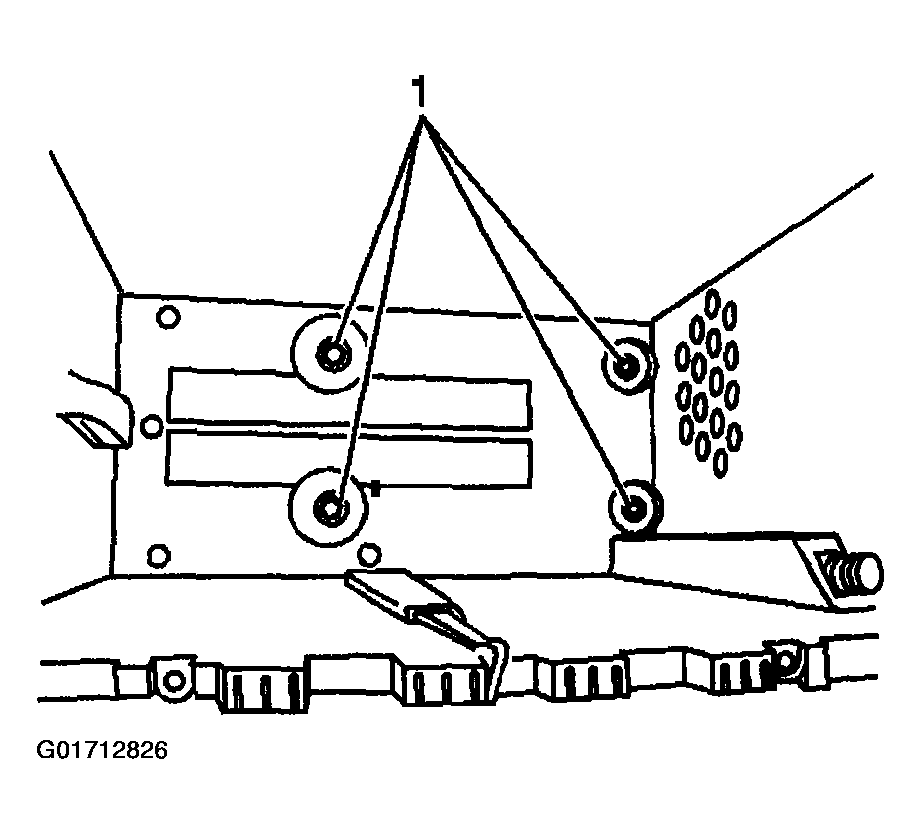

Remove the 4 console bin retaining bolts (1).
Lift the console bin and lid assembly in order to pull out the electric cord.
Remove the console bin and lid assembly from the console.

Fig 2: Removing Console Bin
Courtesy of GENERAL MOTORS CORP.
