Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove both front seats. Refer to SEAT REPLACEMENT - FRONT BUCKET .
  2. Remove the console bezel. Refer to Instrument Panel (I/P) Extension Replacement (Luxury) .
  3. Remove the two bolts (1) attaching the floor console to the front extension.
  4. Remove the bolt (2) attaching the floor console to the subwoofer box, if equipped.
  5. Lift up the console assembly from the floor studs and move rearwards to gain access to the wire harness connector.
  6. Disconnect the wire connector.
  7. Remove the console assembly (3) from the vehicle.

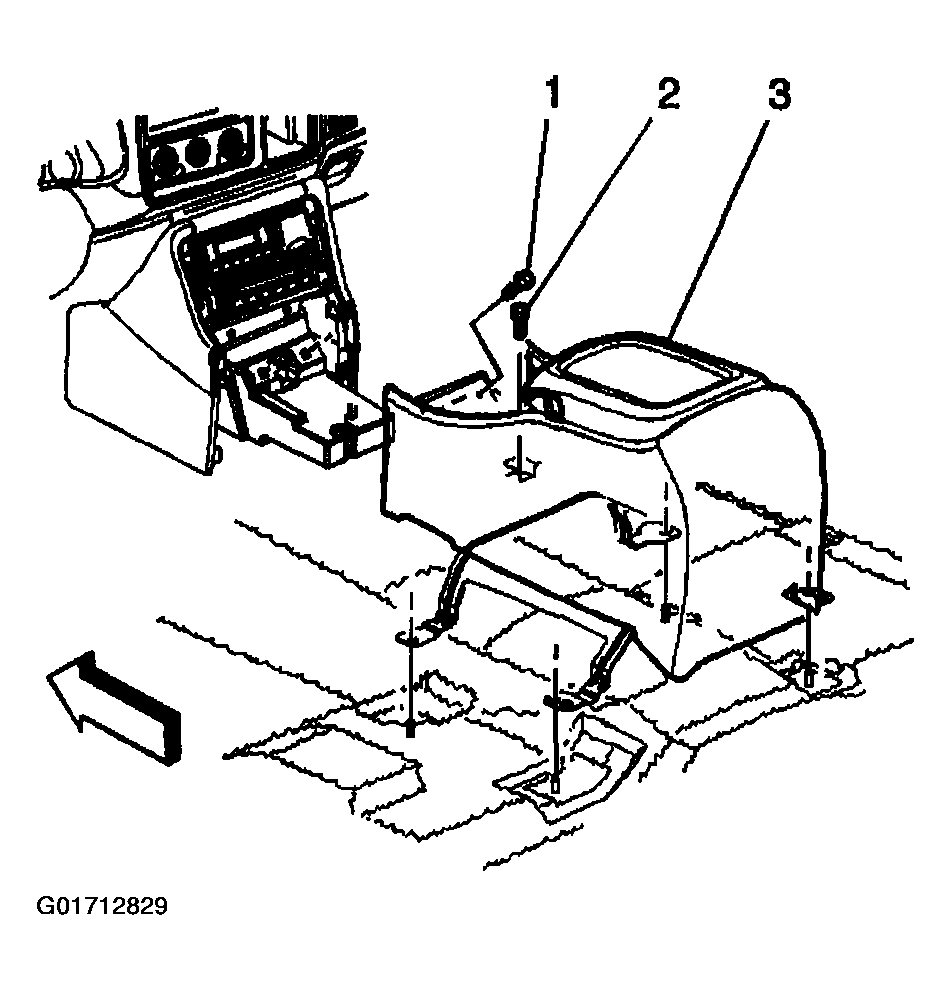

    Fig 1: Console Assembly
    G01712829Courtesy of GENERAL MOTORS CORP.
