Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the center console lid and remove the storage bin. Refer to Console Storage Bin Replacement (Non-Luxury) , Console Storage Bin Replacement (Luxury) , or Console Storage Bin Replacement (Pro)  .
  2. Remove the rear cupholder from the end panel. Refer to Cupholder Replacement - Front Floor Console .

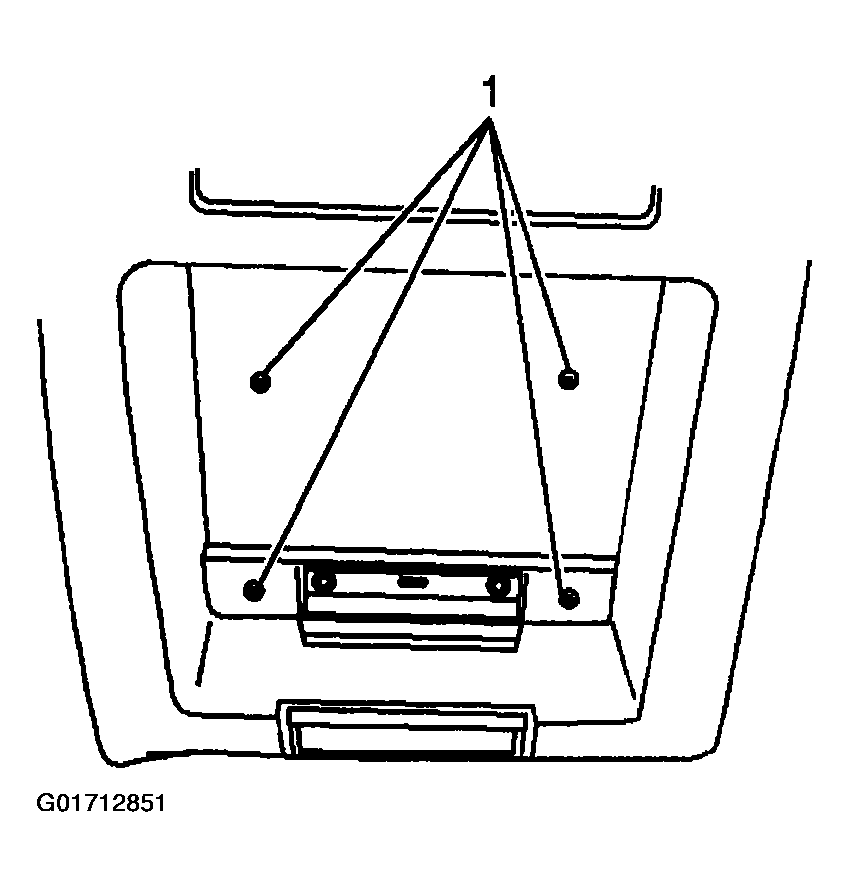

  3. Remove the 4 retaining screws (1).
    Fig 1: Cupholder Retaining Screws
    G01712851Courtesy of GENERAL MOTORS CORP.

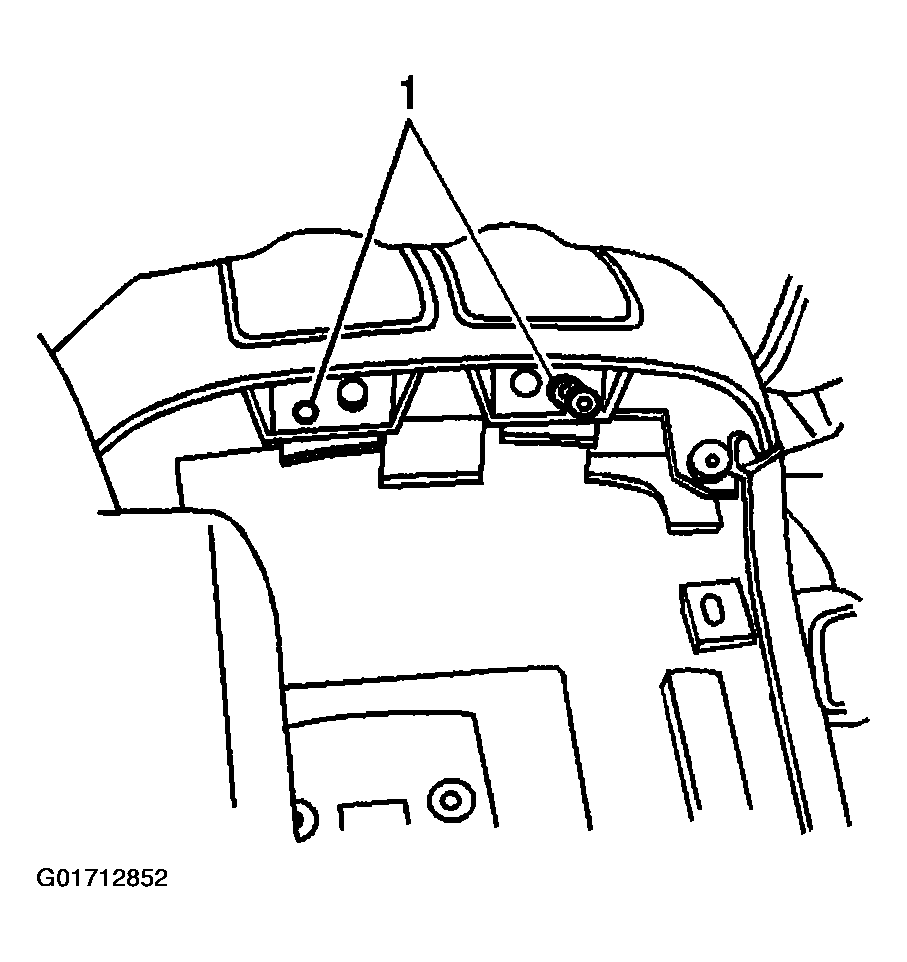

  4. Remove the top 2 retaining screws (1).
    5. Fig 2: Cupholder Top Retaining Screws
    G01712852Courtesy of GENERAL MOTORS CORP.
  5. Move the end panel rearwards to gain access to the electrical connectors.
  6. Remove the end panel from the console.
  7. Remove the rear seat heater switch, if equipped. Refer to HEATED SEAT SWITCH REPLACEMENT - REAR .
  8. Remove the rear seat audio controls, if equipped. Refer to AUDIO CONTROL REPLACEMENT - REAR SEAT .
  9. Remove the console floor lamp, if equipped. Refer to CONSOLE LAMP REPLACEMENT .
  10. Remove the power outlets from the end panel, if equipped.
