Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor console upper bezel by firmly pulling on the corners.
    Fig 1: Floor Console Upper Bezel
    G01712839Courtesy of GENERAL MOTORS CORP.

    Important:  The ashtray lid and cupholder lid must be in the open position.

  2. Open the ashtray lid (1) and cupholder lid (2)
  3. Open the center console storage lid.
  4. Gently pull on the front part of the bezel to release the retainers.
  5. Pull out the bezel partially to gain access to the wire connectors.
  6. Disconnect the wire connectors.
  7. Remove the lower bezel from the center console.

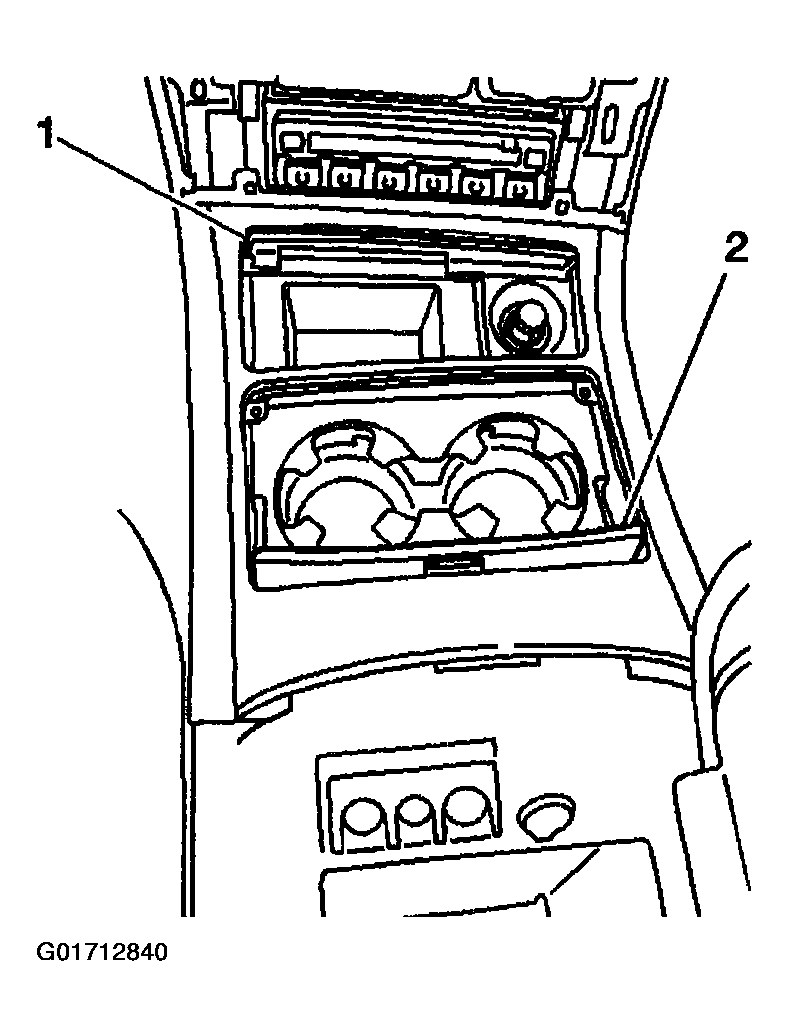

    Fig 2: Removing Lower Bezel From Center Console
    G01712840Courtesy of GENERAL MOTORS CORP.
