Instrument Panel, Gages & Console Connector End Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

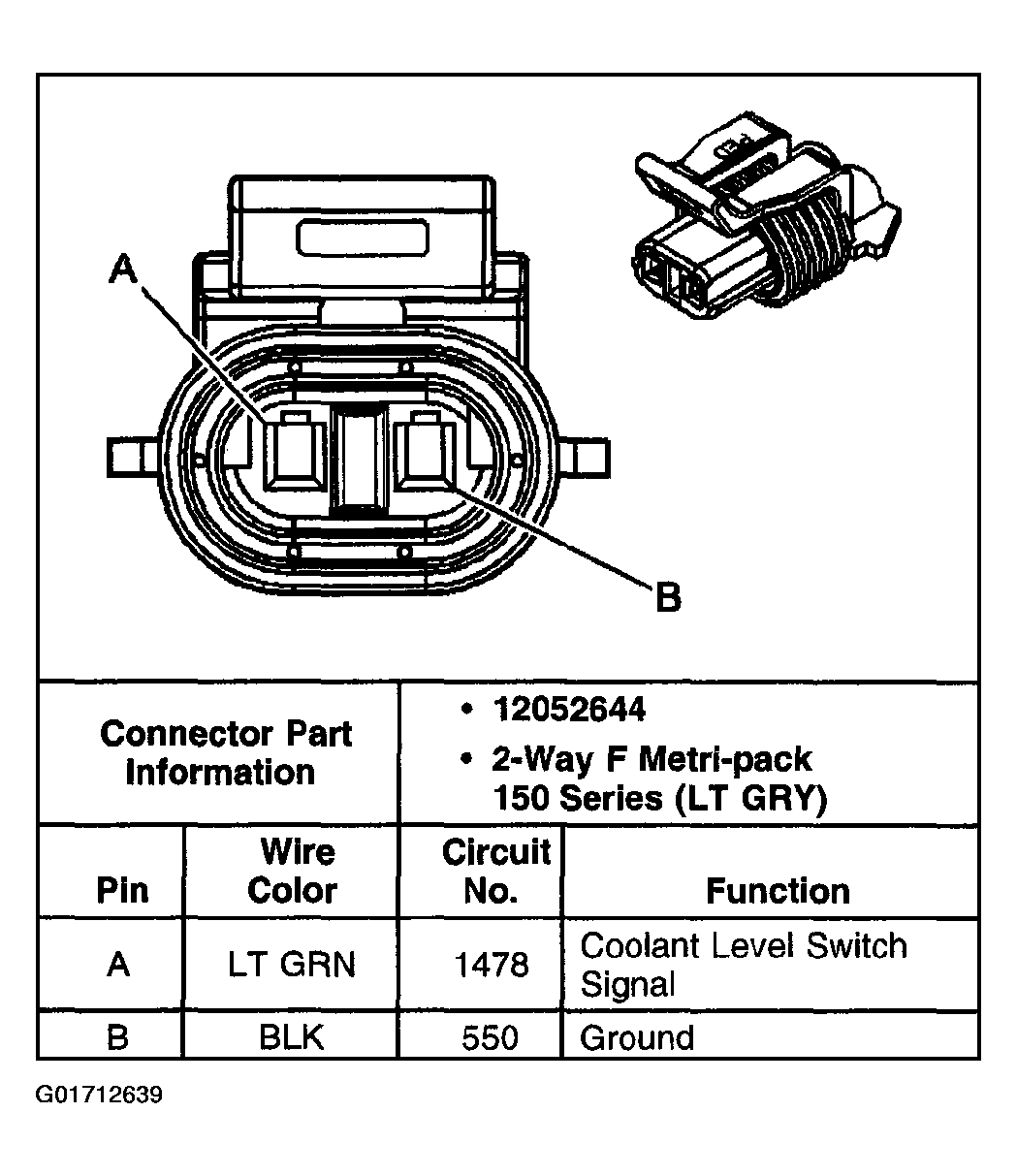

Fig 1: Identifying Coolant Level Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

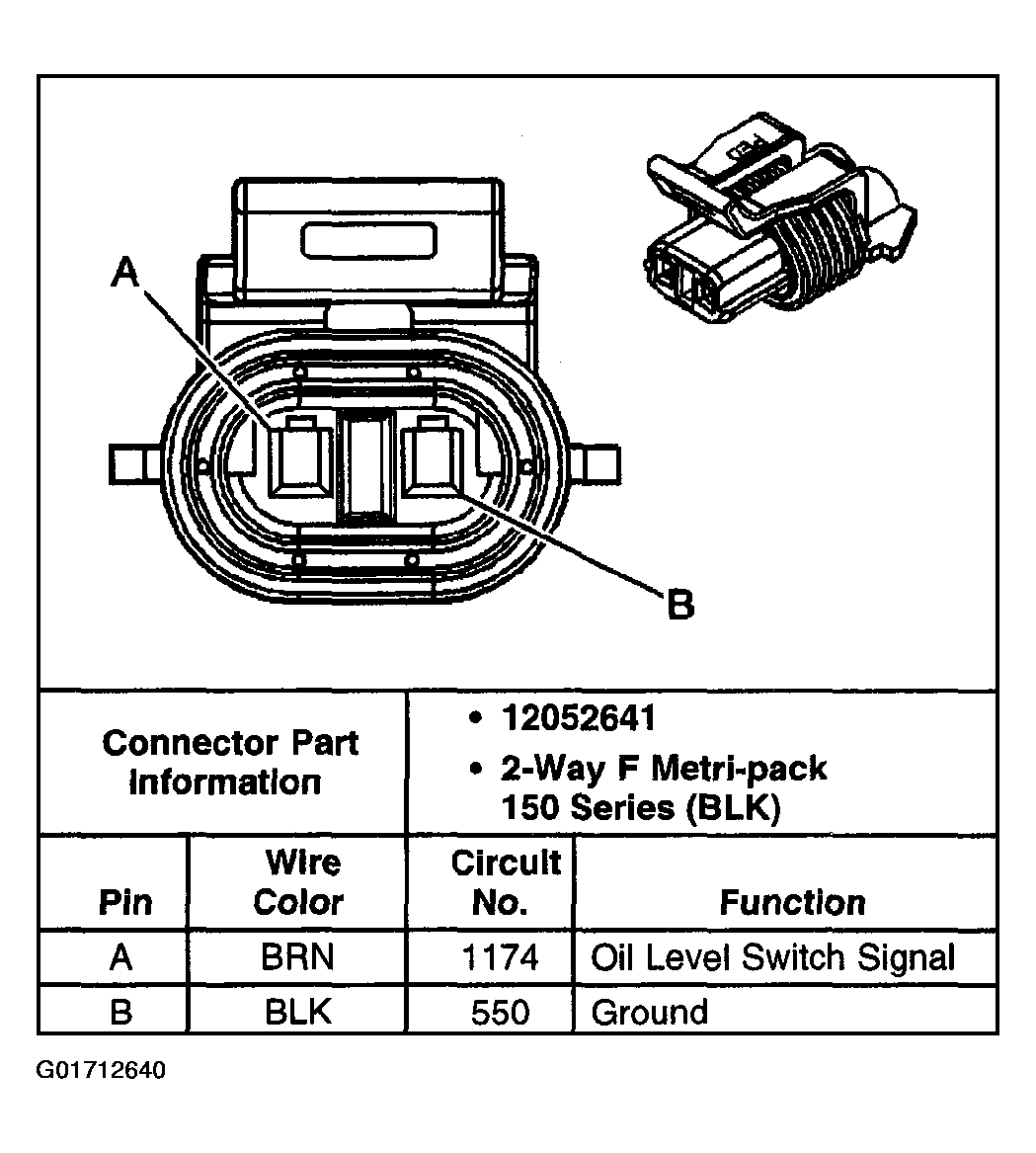

Fig 2: Identifying Engine Oil Level Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

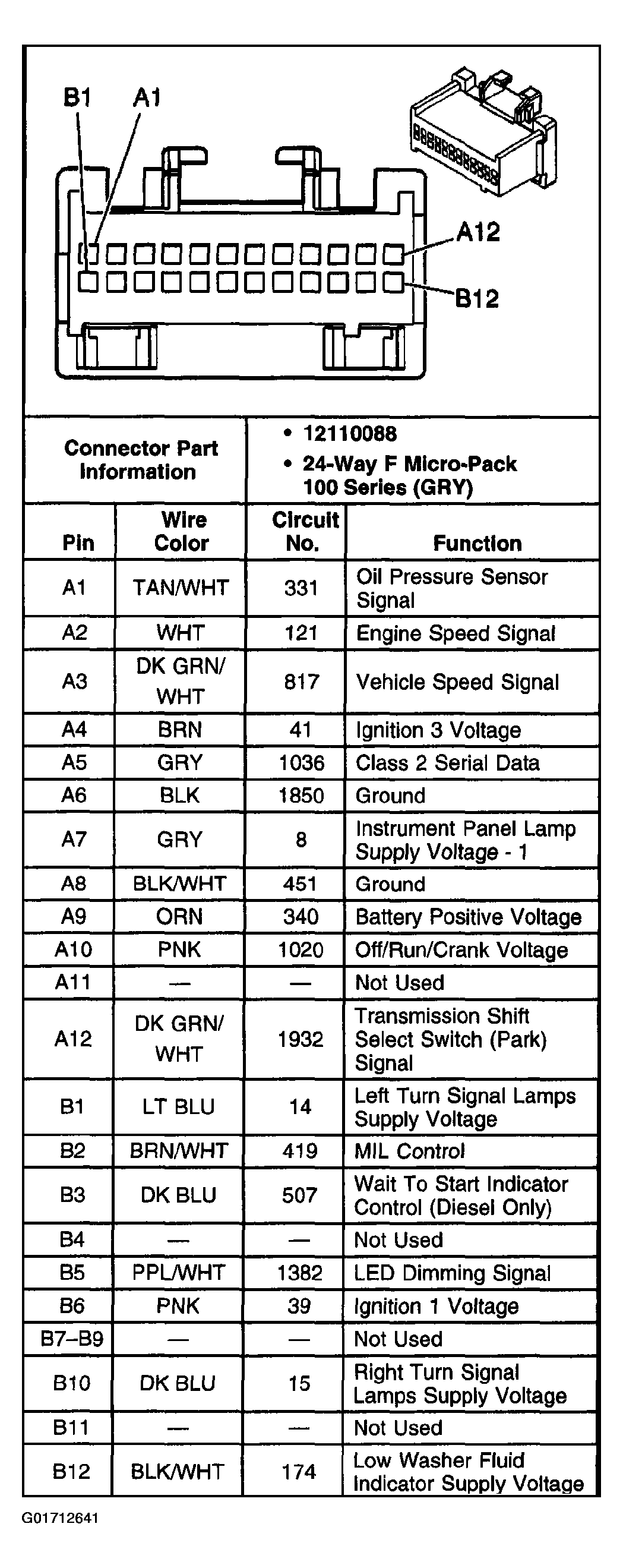

Fig 3: Identifying Instrument Panel Cluster (IPC) Connector Terminals

Courtesy of GENERAL MOTORS CORP.

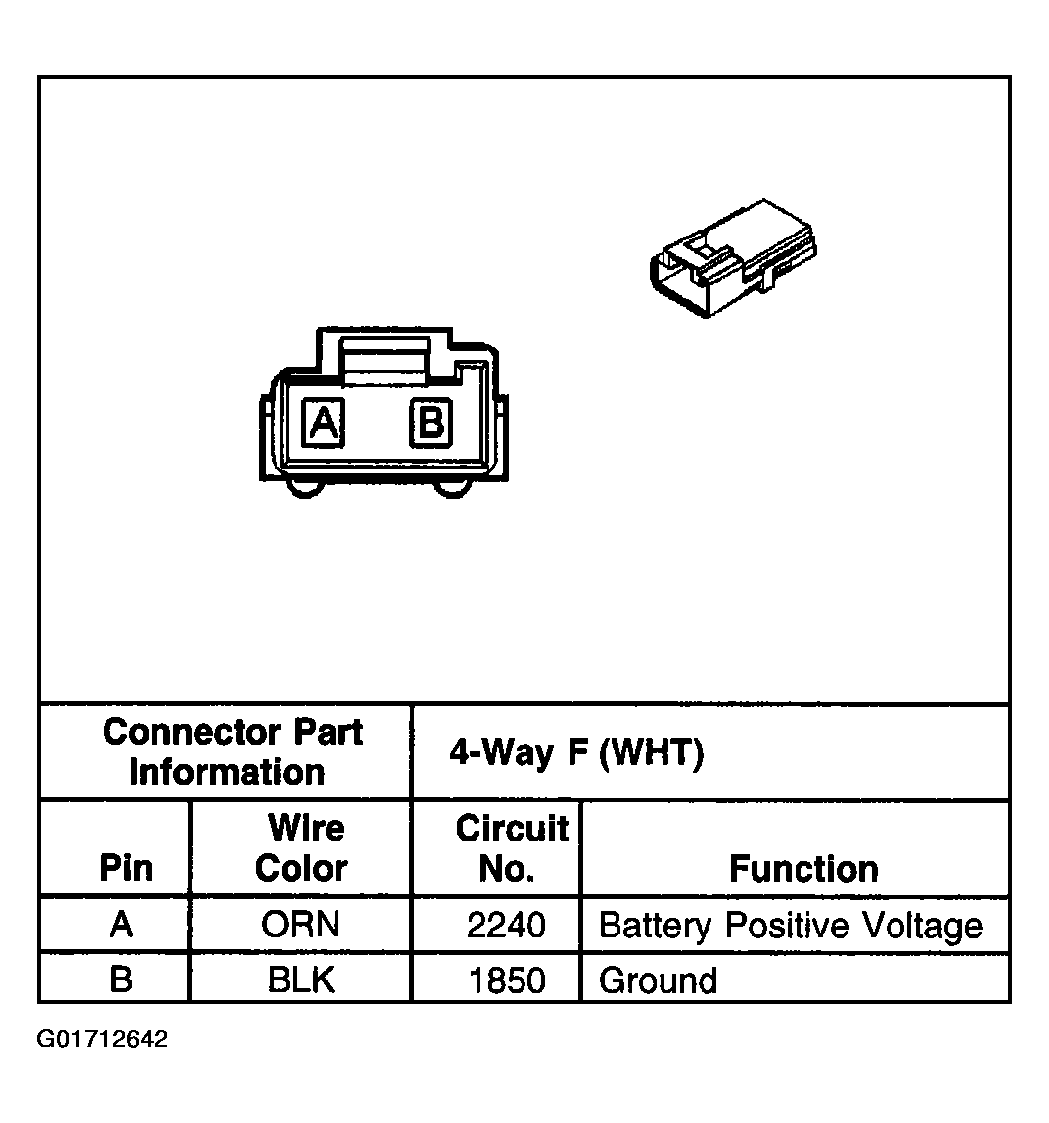

Fig 4: Identifying Thermo Cupholder Assembly - C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

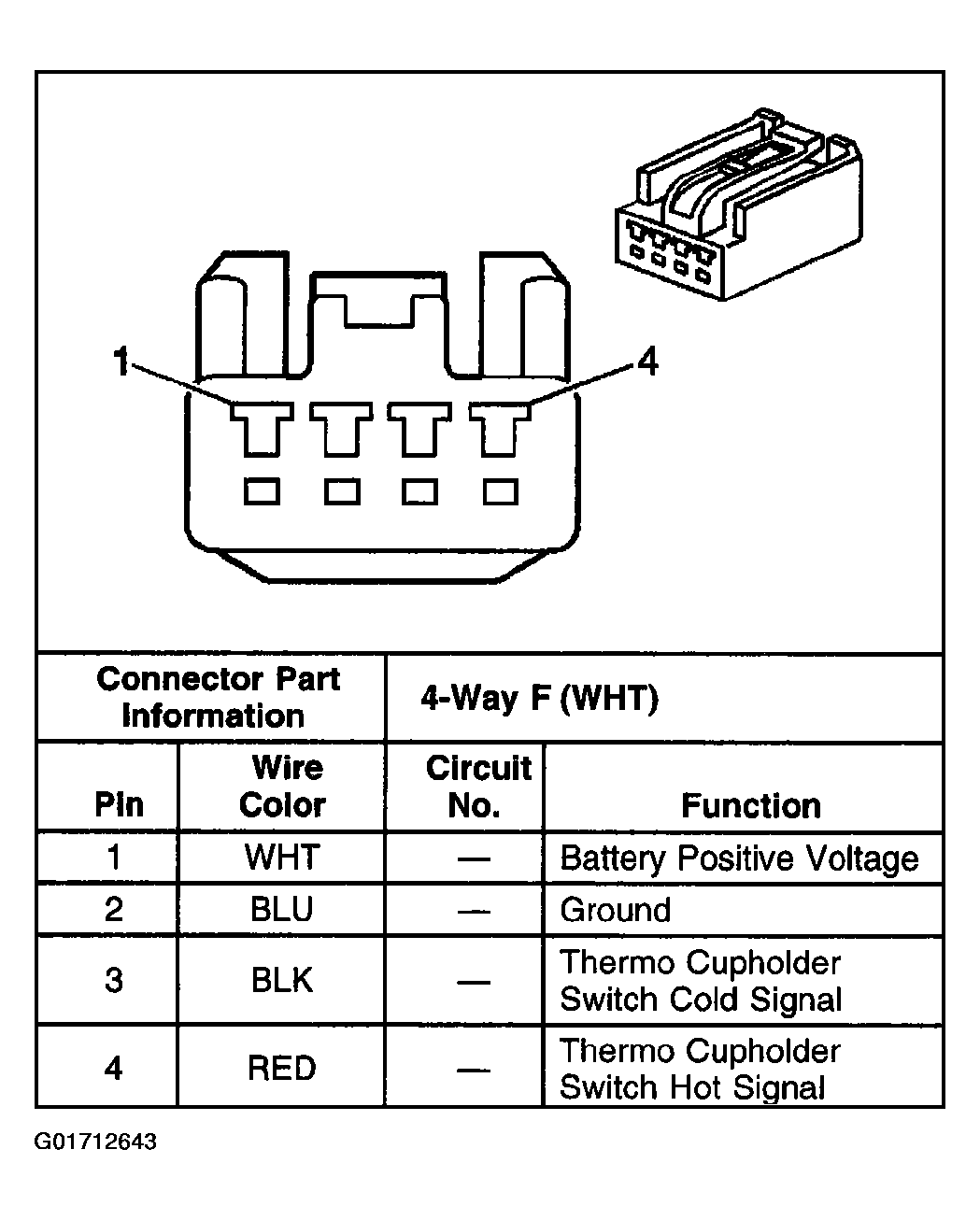

Fig 5: Identifying Thermo Cupholder Assembly - C2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.
